Bosch GSC 16

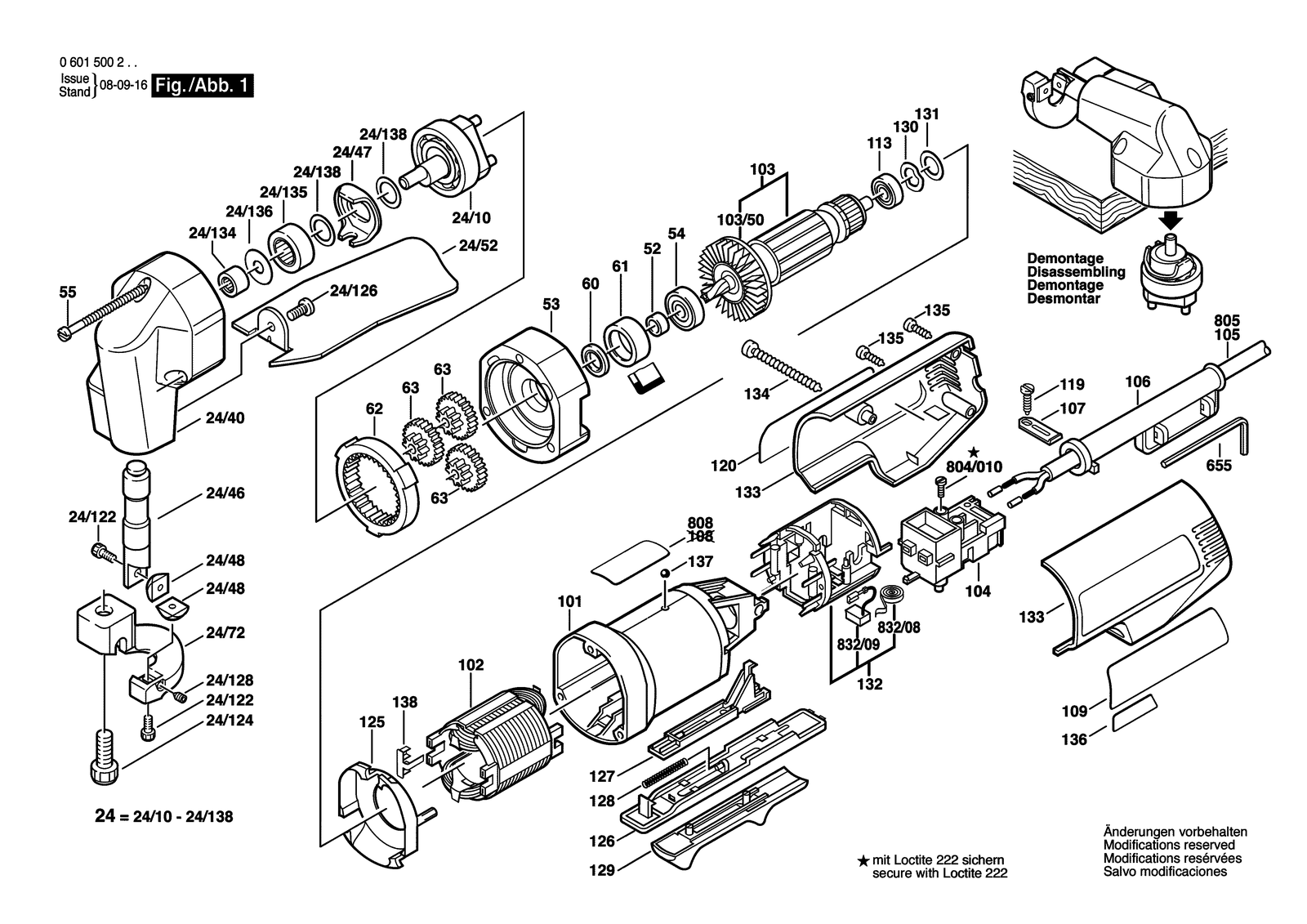

Bosch GSC 16 shears: exploded parts diagram, 1 sheet, 72 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSC 16: 72 positions on 1 sheet
Bosch GSC 16 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 101 | 2605108060 | Motor Housing Blue |
| 102 | 2604220501 | Field 100-115V |
| 102 | 2604220502 | Field 220-230V |
| 102 | 2604220503 | Field 240V |
| 103 | 1604010B6W | Armature |
| 103 | 2604011072 | Armature 100V |
| 103 | 2604011073 | Armature 110-115V |
| 103 | 2604011075 | Armature 240V |
| 103/50 | 2606610081 | Fan |
| 104 | 2607200286 | Switch |
| 104 | 2607200311 | Switch |
| 105 | 1604460455 | Power supply cord CH 2,65M 2 X 1,0MM H07 Rn-F |
| 105 | 2604460138 | Power supply cord Usa/cdn 4,15M 2 X 082MM SJ 18/2 |
| 105 | 2604460139 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 105 | 2604460141 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 105 | 3604460047 | Power supply cord I 2,65M 2X1,0MM H07 Rn-F |
| 105 | 3604460138 | Power supply cord GB 230V 4,15M 2 X 1,0MM H07 Rn-F |
| 105 | 3604460141 | Power supply cord |
| 106 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 106 | 2600703035 | Grommet Ø7,6-Ø8,2X95 MM |
| 107 | 1601302017 | Fastening Clamp |
| 109 | 3601110376 | Manufacturer's nameplate Sunny Side |
| 113 | 2600905032 | Ball Bearing 7X19X6 |
| 119 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 120 | 3601110351 | Sticker Shadow Side |
| 125 | 2601328002 | Cover Disc |
| 126 | 2608001005 | Switch Rocker Blue |
| 127 | 2608001008 | Switch Slide |
| 128 | 2604611033 | Compression Spring |
| 129 | 2608001010 | Switch Handle Black |
| 130 | 2600150003 | Shim |
| 131 | 2600101617 | Shim 0,3 MM |
| 132 | 3604336011 | Brush Holder |
| 133 | 2605104339 | Housing Cover Blue |
| 134 | 2910211283 | Tapping Screw DIN 7971-B3,9X45 |
| 135 | 2910211007 | Tapping Screw DIN 7971-BZ2,9X16 |
| 136 | 1611110880 | Warning Plate |
| 136 | 3601110206 | Sticker |
| 136 | 3601119137 | Warning Plate Caution |
| 136 | 3601119162 | Reference Plate |
| 137 | 2603230001 | Ball Blue |
| 138 | 2601329037 | Contact Spring |
| 24/10 | 3609202077 | Planetary-Gear Carrier |
| 24/122 | 2910401118 | Hex Socket Head Cap Screw DIN 912-M4X8-12.9 |
| 24/124 | 2912721242 | Socket head cap screw M 8X20-12.9MM |
| 24/126 | 3603391007 | Thread-forming tap. Screw DIN 7500-UM5X10-ST |
| 24/128 | 2912010115 | Set screw DIN914-M4X5-45H |
| 24/134 | 3609202085 | Needle bearing DIN 618-8X12X10-HK 0810 |
| 24/135 | 3600905158 | Track-Supporting Roller |
| 24/136 | 3609202087 | Shim ring DIN 988-8X20X0,5 |
| 24/138 | 3600102049 | Shim ring |
| 24/40 | 3609202080 | Housing |
| 24/46 | 3609202082 | Tappet |
| 24/47 | 3602311052 | U-Sheet |
| 24/48 | 3608635009 | Knife |
| 24/52 | 3609202083 | Chip Deflector |
| 24/72 | 3609202084 | Cutting Table |
| 52 | 2600300047 | Seal Bushing |
| 53 | 3605700135 | Bearing Flange |
| 54 | 2600905021 | Groove ball bearing 9X24X7 |
| 54 | 2600905039 | Groove ball bearing 9X24X7 |
| 55 | 1603490A0M | Tapping Screw |
| 60 | 1600290016 | Rotary shaft lip seal |
| 61 | 3600290052 | Rubber Ring |
| 62 | 3600112004 | Ring Gear |
| 63 | 3600112005 | Wheel |
| 655 | 1907950004 | Offset Screwdriver DIN 911, SW3 |
| 804/010 | 3607030229 | Socket head cap screw M 3,5X7 MM |
| 805 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 808 | 160111A3H3 | Nameplate |
| 832/08 | 1604652013 | Spiral Spring |
| 832/09 | 3607014001 | Carbon-Brush Set |
