Bosch GSB18V-800C

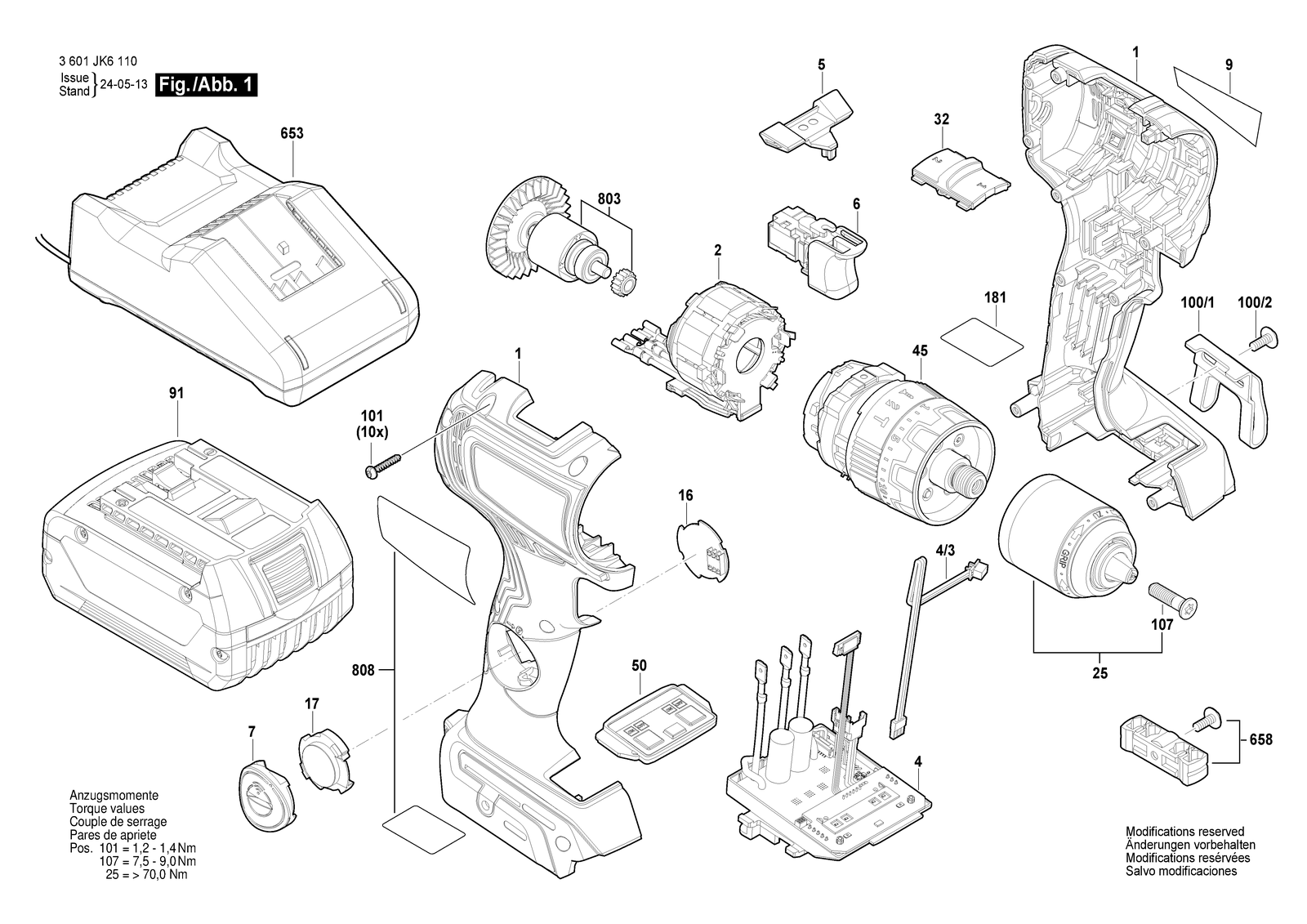

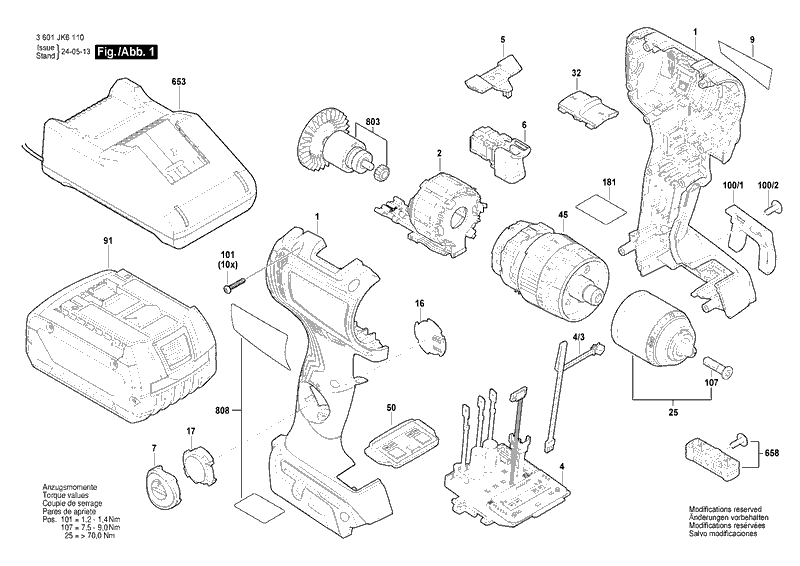

Bosch GSB18V-800C cordless drill driver: exploded parts diagram, 1 sheet, 24 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB18V-800C: 24 positions on 1 sheet
Bosch GSB18V-800C parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1600A01V6W | Housing |
| 100/1 | 2609111584 | Clip |
| 100/2 | 2609110834 | Screw |
| 101 | 2609110353 | Torx Oval-Head Screw |
| 107 | 2603421229 | Countersunk-Head Screw Lefthand Threads M6X23 |
| 16 | 1600A016CZ | Electronics Module |
| 17 | 1600A02KY7 | Cover Panel |
| 181 | 1600A014J4 | Warning Label |
| 2 | 1600A01W0T | Stator |
| 25 | 1600A0122S | Keyless Chuck |
| 32 | 1600A02477 | Switchover Unit |
| 4 | 16072335JS | Electronics Module |
| 4/3 | 1607504124 | Printed-Board Assembly |
| 45 | 1600A0124V | Gear Box |
| 5 | 1600A023EE | Changeover Lever |
| 50 | 1600A025W9 | Separator |
| 6 | 2607202904 | Switch |
| 653 | 2607226257 | Fast Charger Usa GAL 18V-40 120V/ 4A/ 10.8-18V |
| 658 | 2609199748 | Bit holder |
| 7 | 1600A025PZ | Cover unit |
| 803 | 1600A029PG | Rotor |
| 808 | 160111AB1A | Nameplate |
| 9 | 160111C4N4 | Manufacturer's nameplate |
| 91 | 1607A350ZL | Battery Pack |
