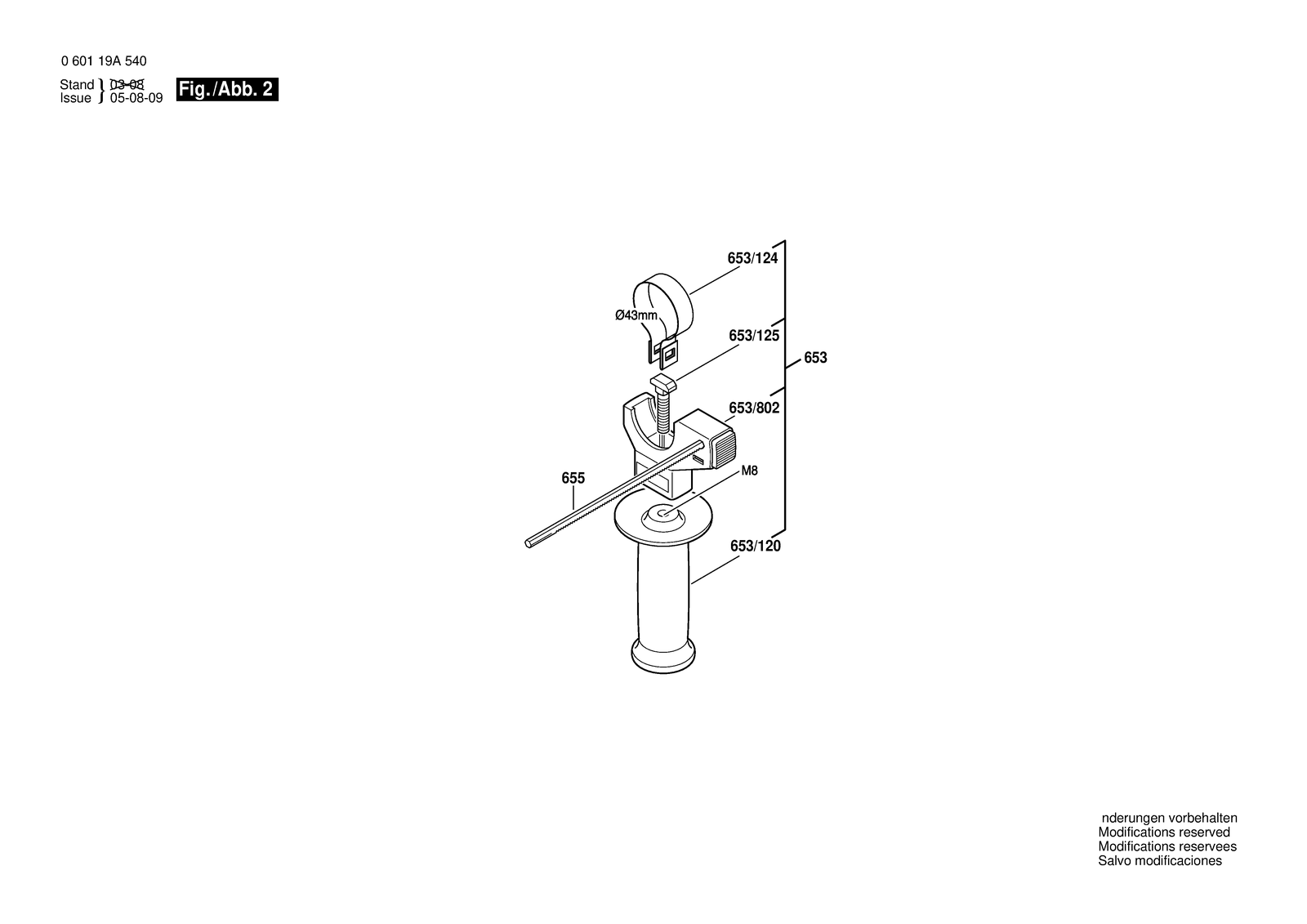

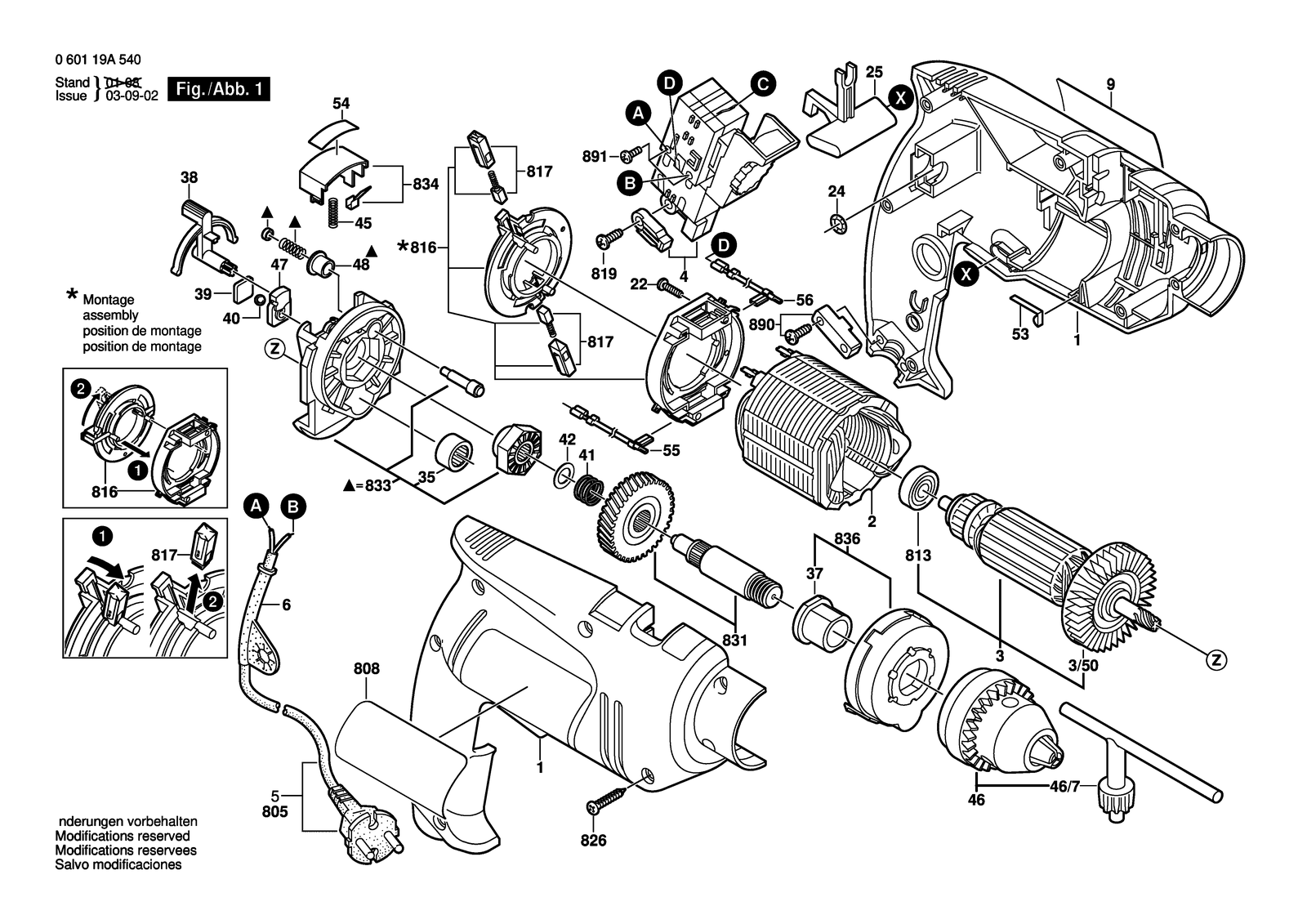

Bosch GSB 650 RE percussion drill: exploded parts diagram, 2 sheets, 107 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 650 RE: 107 positions on 2 sheets
Bosch GSB 650 RE parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605105025 | Housing Section |
| 1 | 2605105025 | Housing Section |
| 2 | 2604220594 | Field 220-240V |
| 2 | 2604220595 | Field 115V |
| 2 | 2604220594 | Field 220-240V |
| 22 | 2910611002 | Tapping Screw DIN 7981-ST2,2X9,5-C-H |
| 22 | 2910611002 | Tapping Screw DIN 7981-ST2,2X9,5-C-H |
| 24 | 1900210000 | O-Ring 5,0X1,5 MM |
| 24 | 1900210000 | O-Ring 5,0X1,5 MM |
| 25 | 2602098008 | Change-Over Switch Red |
| 25 | 2601099104 | Dummy Plug |
| 3 | 2604011154 | Armature 220-240V |
| 3 | 2604011155 | Armature 115V |
| 3 | 2604011154 | Armature 220-240V |
| 3/50 | 2606610029 | Fan |
| 3/50 | 2606610029 | Fan |
| 35 | 2600914019 | Needle bearing |
| 35 | 2600914019 | Needle bearing |
| 37 | 2600301052 | Porous Bearing |
| 37 | 2600301052 | Porous Bearing |
| 38 | 2601990010 | Indexing Disk Black |
| 38 | 2601990010 | Indexing Disk Black |
| 39 | 2601074004 | Pressure Plate |
| 39 | 2601074004 | Pressure Plate |
| 4 | 2607200555 | Switch |
| 4 | 2607200556 | Switch |
| 4 | 2607200613 | Switch |
| 4 | 2607200509 | Switch |
| 40 | 1903230009 | Ball DIN 5401-5 G28 |
| 40 | 1903230009 | Ball DIN 5401-5 G28 |
| 41 | 2604616006 | Compression Spring |
| 41 | 2604616006 | Compression Spring |
| 42 | 2600101047 | Shim 0,3 MM |
| 42 | 2600101047 | Shim 0,3 MM |
| 45 | 2604610047 | Compression Spring |
| 45 | 2604610047 | Compression Spring |
| 46 | 2608571053 | Key Chuck |
| 46 | 2608571053 | Key Chuck |
| 46/7 | 2607950007 | Chuck Wrench SG2 |
| 46/7 | 2607950007 | Chuck Wrench SG2 |
| 47 | 2608040120 | Frame |
| 47 | 2608040120 | Frame |
| 48 | 2600390031 | Sleeve |
| 48 | 2600390031 | Sleeve |
| 5 | 2604460147 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460153 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 5 | 2604460283 | Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460283 | Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F |
| 53 | 2601329043 | Contact Strap |
| 53 | 2601329043 | Contact Strap |
| 54 | 2601119602 | Reference Plate Red |
| 54 | 2601119799 | Reference Plate |
| 54 | 2601119990 | Reference Plate |
| 54 | 2601119991 | Reference Plate |
| 54 | 2601119602 | Reference Plate Red |
| 55 | 1614431025 | Pvc-Insulated Cable L=95 MM |
| 55 | 1614431025 | Pvc-Insulated Cable L=95 MM |
| 56 | 2604448228 | Pvc-Insulated Cable Blue L=120 MM |
| 56 | 2604448228 | Pvc-Insulated Cable Blue L=120 MM |
| 6 | 2600707066 | Grommet Ø6,2-Ø6,9X90 MM |
| 6 | 2600707068 | Grommet Ø8,2-Ø9,2X90MM |
| 6 | 2600707066 | Grommet Ø6,2-Ø6,9X90 MM |
| 653 | 2602025094 | Auxiliary Handle |
| 653 | 2602025125 | Auxiliary Handle Black |
| 653/120 | 1612025019 | Auxiliary Handle M8 |
| 653/120 | 1612025019 | Auxiliary Handle M8 |
| 653/124 | 1611316006 | Clamping Band Ø43 MM |
| 653/124 | 1611316006 | Clamping Band Ø43 MM |
| 653/125 | 1613490002 | T-Head Bolt M8X40 MM |
| 653/125 | 1613490002 | T-Head Bolt M8X40 MM |
| 653/802 | 2608040176 | Support clamp Ø43 MM |
| 653/802 | 2608040176 | Support clamp Ø43 MM |
| 655 | 2609005615 | Depth-Gauge |
| 655 | 2609005615 | Depth-Gauge |
| 805 | 1607000388 | Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F |
| 808 | 2601116049 | Marking Plate |
| 808 | 2601116050 | Marking Plate |
| 808 | 2601116357 | Marking Plate |
| 808 | 2601116552 | Marking Plate |
| 808 | 2601116553 | Marking Plate |
| 813 | 2600905032 | Ball Bearing 7X19X6 |
| 813 | 2600905032 | Ball Bearing 7X19X6 |
| 816 | 2604337061 | Brush Plate |
| 816 | 2604337104 | Brush Plate |
| 816 | 2604337104 | Brush Plate |
| 817 | 2607014017 | Carbon-Brush Set |
| 817 | 2609160125 | Carbon-Brush Set |
| 817 | 2607014017 | Carbon-Brush Set |
| 819 | 2910611006 | Tapping Screw DIN 7981-ST2,9X13-C-H |
| 819 | 2910611006 | Tapping Screw DIN 7981-ST2,9X13-C-H |
| 826 | 2910611020 | Tapping Screw DIN 7981-ST3,9X19-C-H |
| 826 | 2910611020 | Tapping Screw DIN 7981-ST3,9X19-C-H |
| 831 | 2606135929 | Drilling Spindle 1/2" |
| 831 | 2606135929 | Drilling Spindle 1/2" |
| 833 | 2605807932 | Bearing Bracket |
| 833 | 2605807932 | Bearing Bracket |
| 834 | 2603231040 | Push-Button Black |
| 834 | 2603231040 | Push-Button Black |
| 836 | 2605808922 | Gear Cover Green |
| 836 | 2605808922 | Gear Cover Green |
| 890 | 2607001305 | Fastening parts kit |
| 890 | 2607001305 | Fastening parts kit |
| 891 | 2603410046 | Cross Recessed-Head Screw M3X5 |
| 891 | 2603410046 | Cross Recessed-Head Screw M3X5 |
| 9 | 2601116135 | Manufacturer's nameplate |
| 9 | 2601116659 | Manufacturer's nameplate |
| 9 | 2601116551 | Manufacturer's nameplate |
