Bosch GSB 570 percussion drill: exploded parts diagram, 2 sheets, 24 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 570: 24 positions on 2 sheets

Bosch GSB 570 parts list (2 sheets)

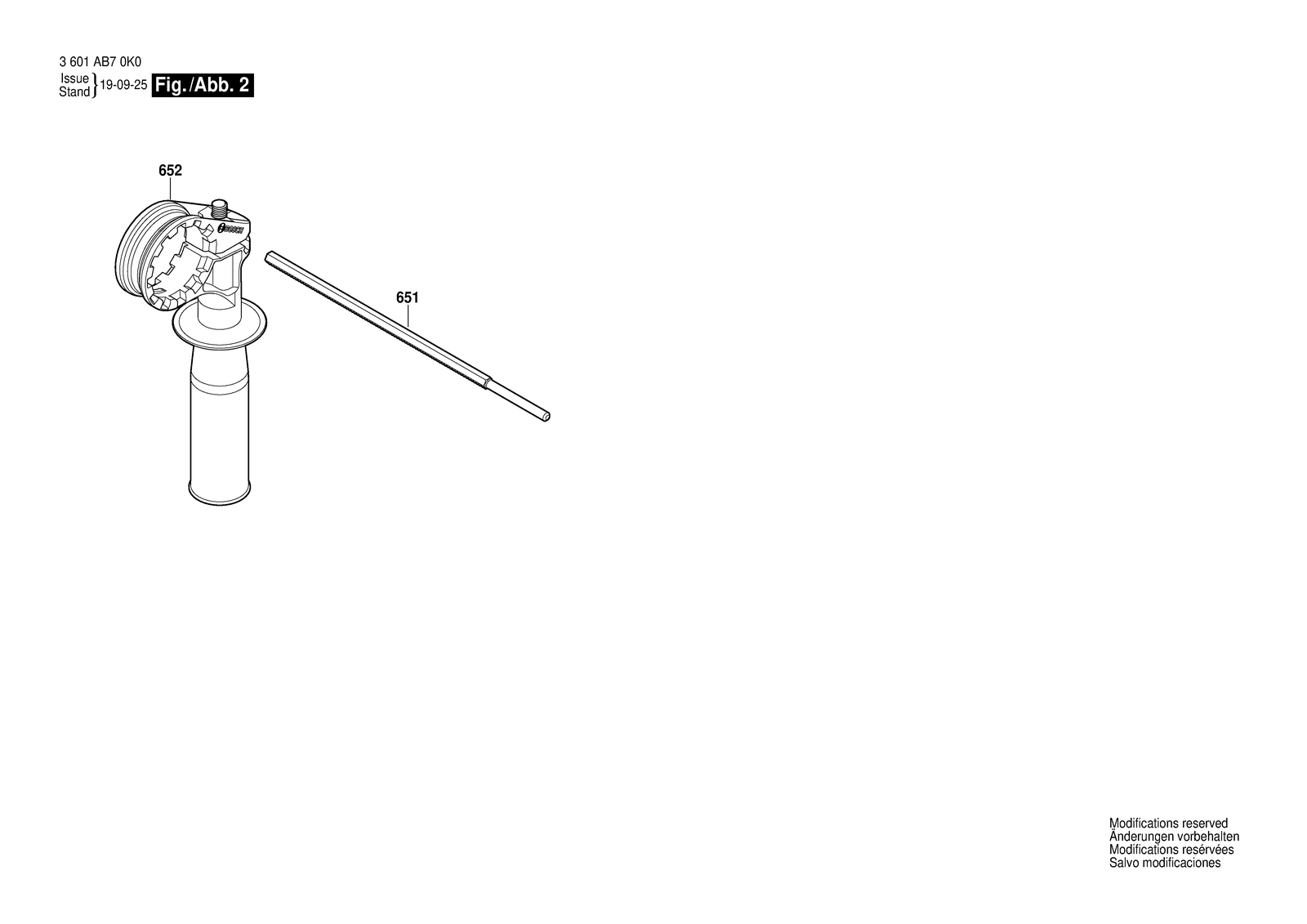

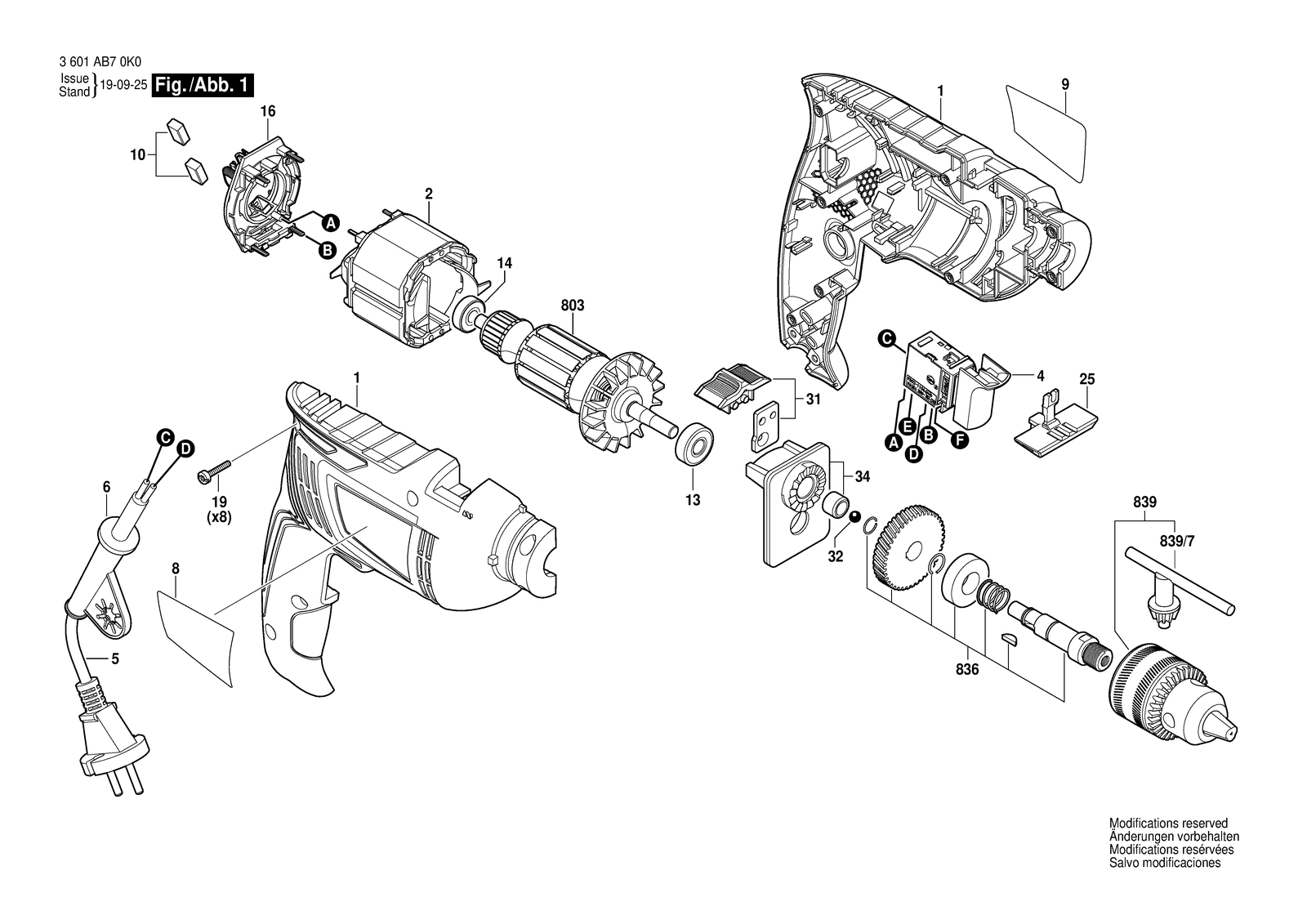

Bosch GSB 570 parts diagram, sheet 1Bosch GSB 570 parts diagram, sheet 2
No.Part numberPart name
11619PB4801Housing
101619PB4810Carbon-Brush Set
131619PA0681Groove ball bearing
141619PB4811Groove ball bearing
161619PB4812Brush Plate
191619PA0683Torx Oval-Head Screw
21619PB4802Field
251619PB4813Lever
311619PA0701Change-Over Switch
32F000615033Ball
341619PA0685Bearing Bracket
41619PB4804On-Off Switch
51619PB4805Power supply cord
51619PB4806Power supply cord
61619PB2058Grommet Ø 9 MM
6512603001009Depth-Gauge
6522609199582Auxiliary Handle
81619PB4807Nameplate
81619PB4808Nameplate
8031619PB4803Armature
8361619PB4814Drilling Spindle
8391619PA1689Key Chuck
839/71619PA0694Chuck Wrench
91619PB4809Manufacturer's nameplate GSB 570
