Bosch GSB 550-2 combi 2-sp.impact drill-e: exploded parts diagram, 1 sheet, 43 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 550-2: 43 positions on 1 sheet

Bosch GSB 550-2 parts list (1 sheet)

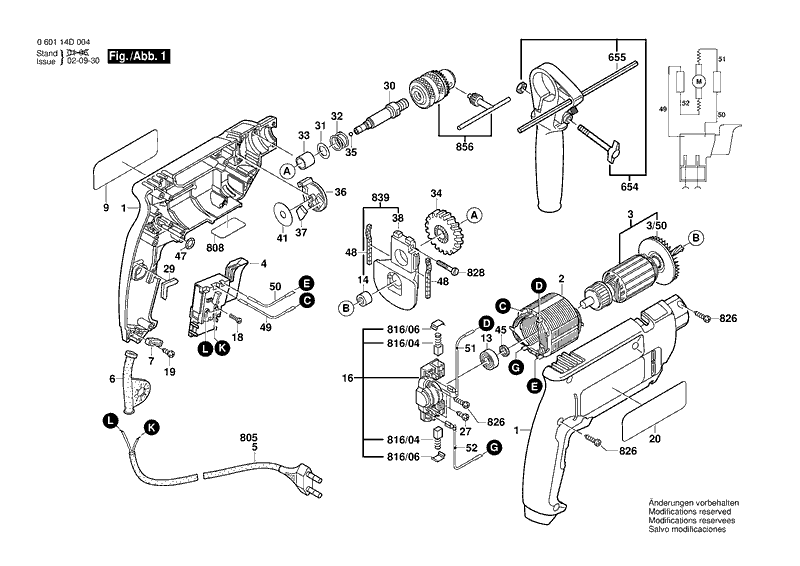

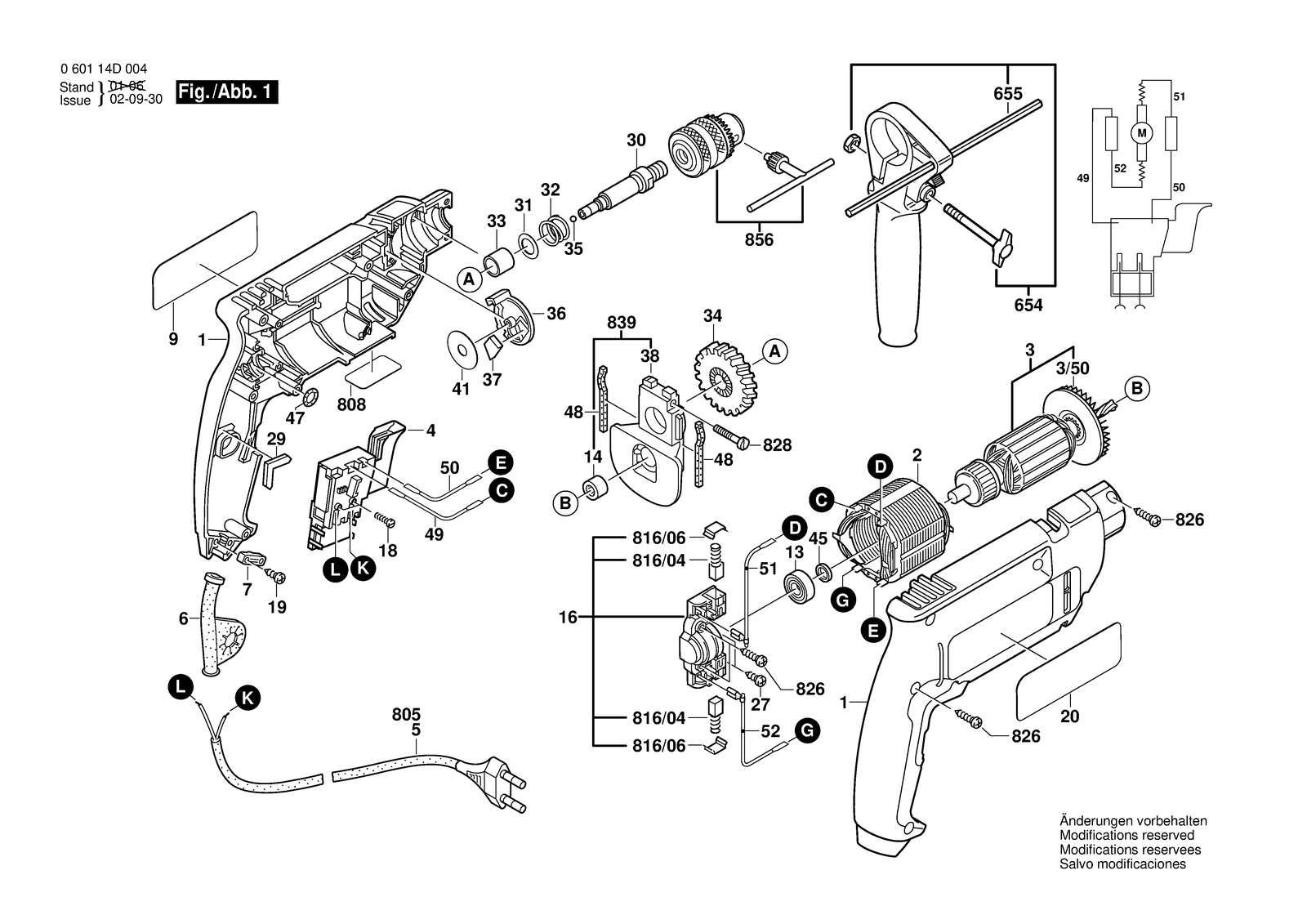

Bosch GSB 550-2 parts diagram, sheet 1
No.Part numberPart name
12609100143Housing Section
132600905032Ball Bearing 7X19X6
142600914019Needle bearing
162609992617Brush Plate
182603410001Socket head cap screw M3X6,5-4.8
192910611019Tapping Screw DIN 7981-ST3,9X16-C-H
22604220562Field 220-240V
202609130424Reference Plate
272610611007Tapping Screw
292601022000Damping Plate
32604011085Armature 230V
3/502606610029Fan
302609110126Drilling Spindle
312600100692Shim 0,2 MM
322604617006Compression Spring
332600301028Sintered-Metal Bushing
342606320060Cylindrical Gear
351903230010Ball DIN 5401-5,5MM-III-ST
362601990001Indexing Disk Black
372601074003Pressure Plate
382609110369Bearing Bracket
42607200373Switch
412600100066Plain Washer
452600209012Spacer Ring
471900210000O-Ring 5,0X1,5 MM
482601005011Felt Strip
492604448136Connecting Cable White L=133 MM
51607000388Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F
502604448129Connecting Cable Black L=83 MM
512604448123Connecting Cable White L=73 MM
522604448130Connecting Cable White L=88 MM
62600707059Grommet Ø6,9 MM
6542602025094Auxiliary Handle
6552609005615Depth-Gauge
72601035001Cable Clip
808160111A3H3Nameplate
816/042604321905Carbon-Brush Set
816/062601322013Ratchet Cap
8262912401020Tapping Screw DIN 7981-3,9X19-C-Z-ST
8282910021134Socket head cap screw DIN 84-BM4X30-8.8
8392609110370Bushing
8561608571080Key Chuck Ø1,5-13 MM
92609130423Manufacturer's nameplate
