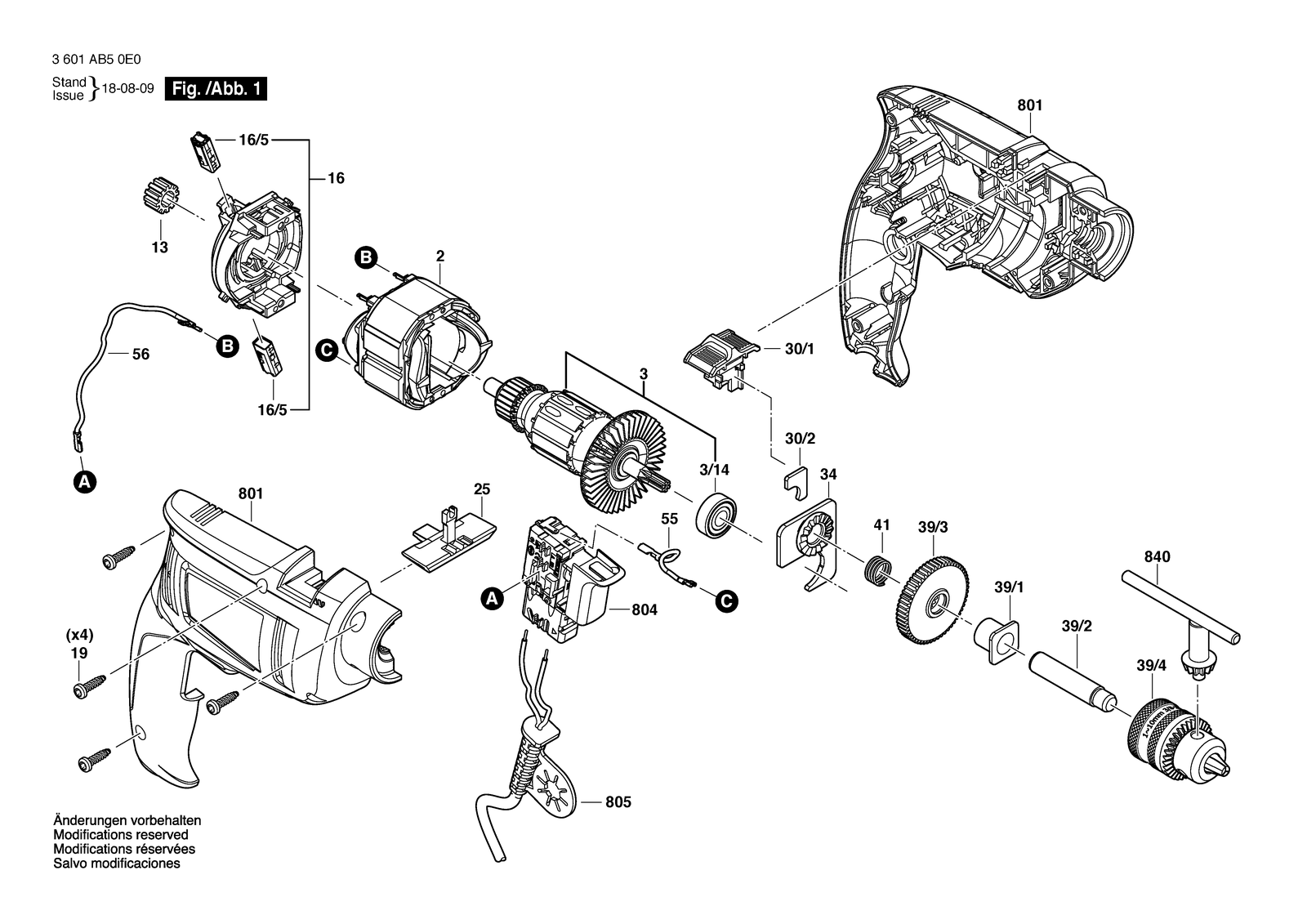

Bosch GSB 450 univ. eltrn.1sp.imp.drill: exploded parts diagram, 1 sheet, 28 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 450: 28 positions on 1 sheet
Bosch GSB 450 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 13 | 1600A00PB4 | Porous Bearing |
| 16 | 1600A0160T | Brush Plate |
| 16/5 | 1600A0162B | Brush Holder |
| 19 | 9618087099 | Screw 4X16 MM |
| 2 | 160422056Z | Field 127V |
| 2 | 1604220570 | Field 220V |
| 25 | 1600A0123G | Change-Over Switch |
| 3 | 1604010B9E | Armature 127V |
| 3 | 1604010B9F | Armature 220V |
| 3/14 | 2609110491 | Ball Bearing |
| 30/1 | 1600A0123H | Change-Over Switch |
| 30/2 | 1600A00PB7 | Pressure Plate |
| 34 | 1600A00M85 | Bearing Bracket |
| 39/1 | 1600A0137P | Porous Bearing |
| 39/2 | 1600A01437 | Spindle |
| 39/3 | 1606300013 | Toothed Gear |
| 39/4 | 1600A00Z9R | Chuck |
| 41 | 1600A00PC0 | Contact Spring |
| 55 | 1600A015Z5 | Connecting Cable |
| 56 | 1600A015Z4 | Connecting Cable |
| 801 | 16058065RB | Motor Housing |
| 804 | 160720034A | Switch |
| 804 | 160720035X | Switch 127V |
| 805 | 1604460760 | Power supply cord Br |
| 805 | 1604460762 | Power supply cord Ar |
| 805 | 1604460763 | Power supply cord Mx |
| 805 | 1604460764 | Power supply cord CL |
| 840 | 9617085009 | Chuck Wrench |
