Bosch GSB 400

Bosch GSB 400 percussion drill: exploded parts diagram, 1 sheet, 44 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 400: 44 positions on 1 sheet

Bosch GSB 400 parts list (1 sheet)

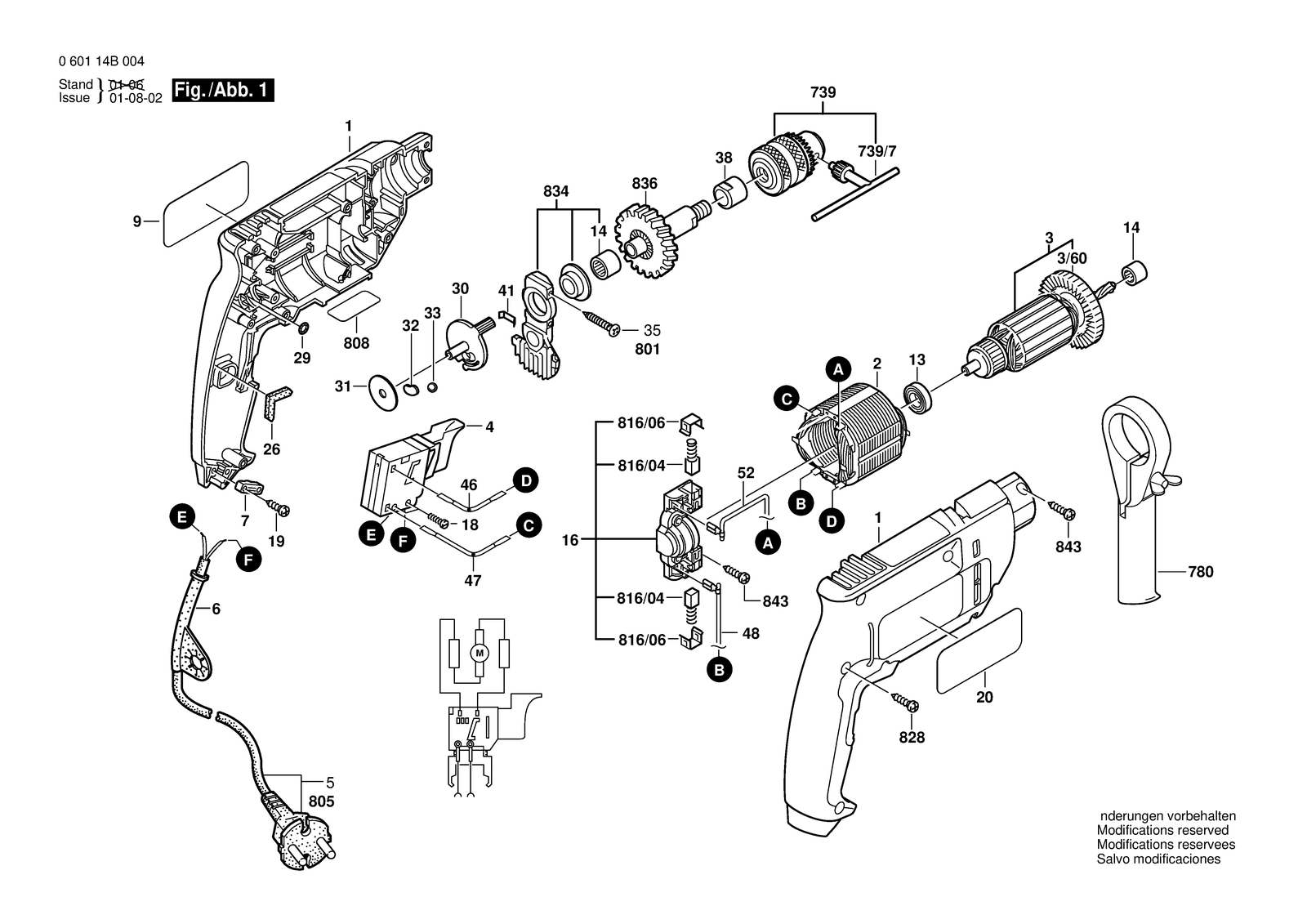

Bosch GSB 400 parts diagram, sheet 1
No.Part numberPart name
12609100142Housing
132600905046Groove ball bearing 8X19X6
142609110136Needle bearing
162609992607Brush Plate
182603410001Socket head cap screw M3X6,5-4.8
192910611019Tapping Screw DIN 7981-ST3,9X16-C-H
22604220423Field 220-240V
202609130401Reference Plate
202609913646Manufacturer's nameplate
262601022000Damping Plate
291900210000O-Ring 5,0X1,5 MM
32604011243Armature With Fan 220-240V
3/601619P11262Fan
302601990000Indexing Disk
312600100034Supporting Disc
322600025005Pressure Plate
331903230011Ball DIN 5401-6 G28
352910951132Oval-Head Screw DIN 7985-M4X25-8.8
382600301013Sintered-Metal Bushing
42607200260Switch
42607200365On-Off Switch
412601290014Disc Spring
462604448060Cable White L=173 MM
472604448045Cable Black L=98 MM
482604448130Connecting Cable White L=88 MM
51604460260Power supply cord GB 230V 2,65M 2 X 0,75MM H05 Vv-F
51604460262Power supply cord CN 220V 2,65M 2 X 0,75MM H05 Vv-F
52604460147Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F
522604448123Connecting Cable White L=73 MM
62600707059Grommet Ø6,9 MM
62600707062Grommet Ø7X8,4 MM
72601035001Cable Clip
7391608571079Chuck Ø1,0-10 Mm, 3/8"
739/72607950007Chuck Wrench SG2
7802602025032Auxiliary Handle Black Ø43 MM
8051604460228Power supply cord TJ 2,65M 2 X 1,0MM H05VV-F
808160111A3H3Nameplate
816/042604321915Carbon-Brush Set
816/062601322013Ratchet Cap
8282912401020Tapping Screw DIN 7981-3,9X19-C-Z-ST
8342609110137Bearing Bracket
8362606135909Drilling Spindle Z=45
8432910611006Tapping Screw DIN 7981-ST2,9X13-C-H
92609130742Manufacturer's nameplate
