Bosch GSB 36 V-LI

Bosch GSB 36 V-LI cordless impact drill: exploded parts diagram, 2 sheets, 30 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 36 V-LI: 30 positions on 2 sheets

Bosch GSB 36 V-LI parts list (2 sheets)

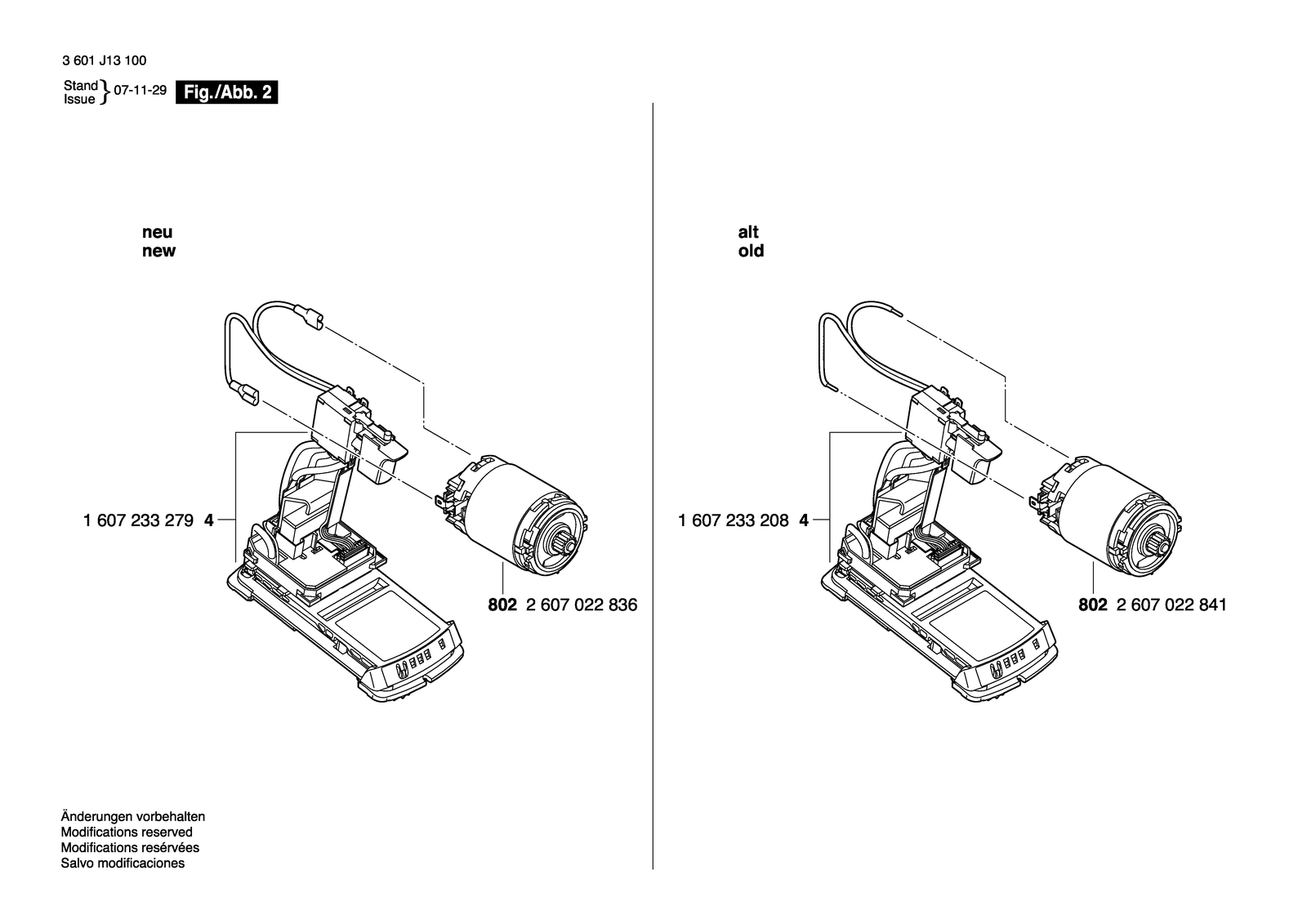

Bosch GSB 36 V-LI parts diagram, sheet 1Bosch GSB 36 V-LI parts diagram, sheet 2
No.Part numberPart name
12605105089Housing Section Blue
1012603490018Torx Oval-Head Screw 3X18
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
112600508056Cover
122600508057Cover
322601099152Adjusting Slide Red
41607233279Electronics Module
52601099149Adjusting Slide
612608040190Support
6532607225113Fast Charger BR 220/18-36V, 1H
6532607225909Fast Charger J GAL 3680 CV 100/14,4-36V
6532607226277Fast Charger Aus AL 36V-20
6532607226457Charger EU GAL 3680 CV 230/14,4-36V
6532607226459Charger Gb GAL 3680 CV 230/14,4-26V
6532607226465Charger Rok GAL 3680 CV 220/14,4-36V
6552602025135Auxiliary Handle
702605190571Push-Button Red
712604610104Compression Spring
8022607022836DC motor
8092601116866Manufacturer's nameplate
8161607000488Carbon-Brush Set 10 X 2 607 034 904
8162607034904Carbon-Brush Set
8202601116867Nameplate
8252608572900Keyless Chuck
8452606200936Planetary Gear Train
911607A3504RBattery Pack J GBA 36V 6.0AH
911607A350R2Battery Pack GBA 36V 4,0AH H-c
912607336003Battery Pack 36V, 2,0AH, LI
912607336913Battery Pack 36V 2,0 Ah LI
931609200147Screwdriver Blade 6 MM
