Bosch GSB 24VE-2

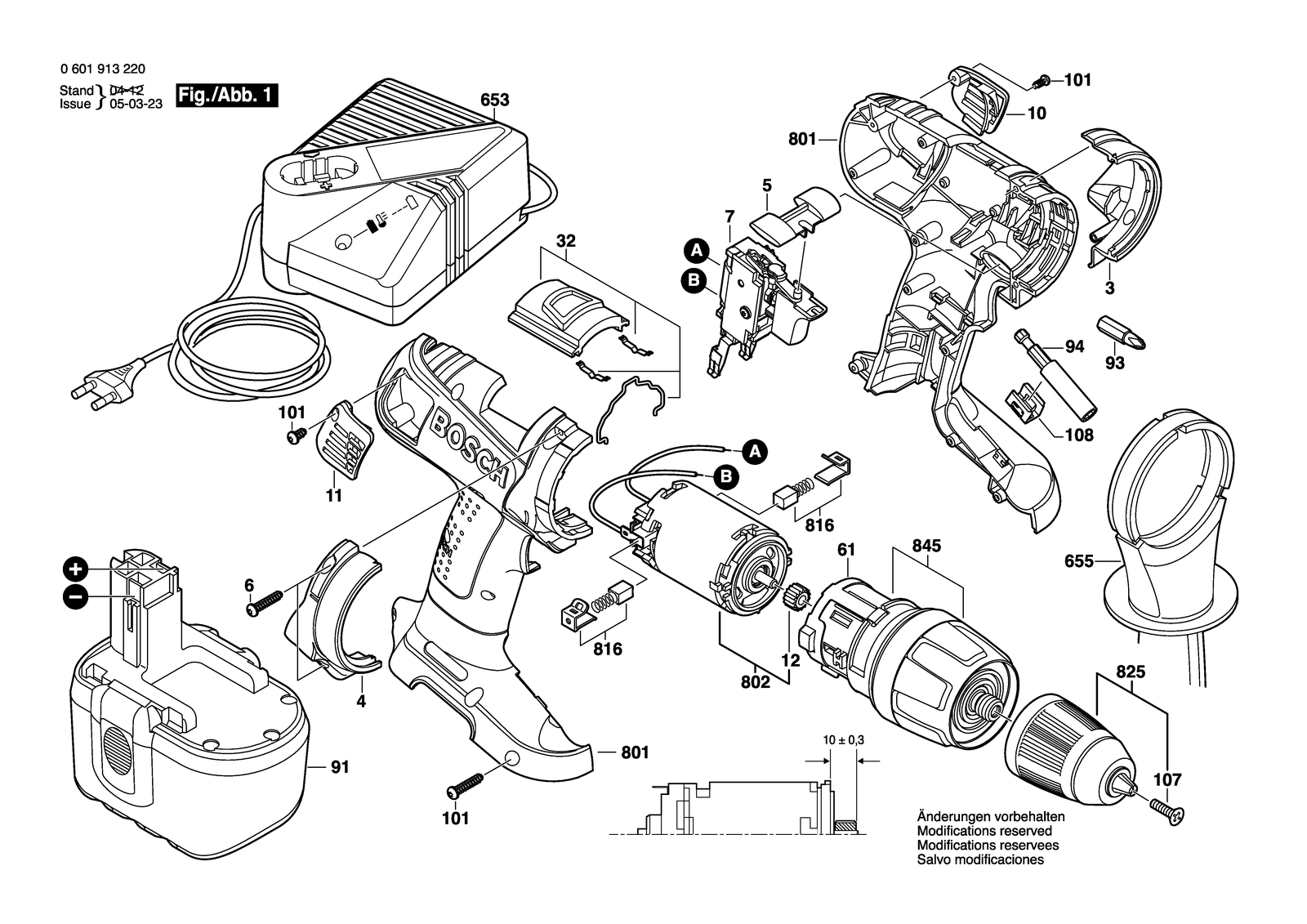

Bosch GSB 24VE-2 cordless impact drill: exploded parts diagram, 1 sheet, 54 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 24VE-2: 54 positions on 1 sheet
Bosch GSB 24VE-2 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 10 | 2600508051 | Cover Black |
| 10 | 2600508051 | Cover Black |
| 101 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 101 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 107 | 2603421229 | Countersunk-Head Screw Lefthand Threads M6X23 |
| 107 | 2603421229 | Countersunk-Head Screw Lefthand Threads M6X23 |
| 108 | 2604690027 | Spring Element |
| 108 | 2604690027 | Spring Element |
| 11 | 2600508052 | Cover Black |
| 11 | 2600508052 | Cover Black |
| 12 | 2606316224 | Pinion |
| 12 | 2606316222 | Pinion |
| 3 | 2605500168 | Protective Cap |
| 3 | 2605500168 | Protective Cap |
| 32 | 2601099127 | Adjusting Slide |
| 32 | 2601099127 | Adjusting Slide |
| 4 | 2605500169 | Protective Cap |
| 4 | 2605500169 | Protective Cap |
| 5 | 2601099112 | Adjusting Slide Red |
| 5 | 2601099112 | Adjusting Slide Red |
| 6 | 2603410052 | Thread-forming tap. Screw M3X20 |
| 6 | 2603410052 | Thread-forming tap. Screw M3X20 |
| 61 | 2608040190 | Support |
| 61 | 2608040190 | Support |
| 653 | 2607224425 | Fast Charger EU 230/7,2-24V, 1H |
| 653 | 2607224427 | Fast Charger GB 230/7,2-24V, 1H |
| 653 | 2607224429 | Fast Charger AUS 240/7,2-24V, 1H |
| 653 | 2607224433 | Fast Charger SAM 115/7,2-24V,1H |
| 653 | 2607224983 | Fast Charger BR 220/7,2-24V, 1H |
| 653 | 2607225027 | Fast Charger EU 230/7,2-24V, 30 Min. |
| 653 | 2607225029 | Fast Charger GB 230/7,2-24V, 30 Min. |
| 653 | 2607224493 | Fast Charger J 100/7,2-24V, 15 Min. |
| 655 | 2602025135 | Auxiliary Handle |
| 655 | 2602025135 | Auxiliary Handle |
| 7 | 2607200458 | On-Off Switch |
| 7 | 2607200458 | On-Off Switch |
| 801 | 2605105914 | Housing Section Blue |
| 801 | 2605105933 | Housing Section Blue |
| 802 | 2607022862 | DC motor 24V |
| 802 | 2607022855 | DC motor 24V |
| 816 | 2607034904 | Carbon-Brush Set |
| 816 | 2607034904 | Carbon-Brush Set |
| 825 | 2608572900 | Keyless Chuck |
| 825 | 2608572900 | Keyless Chuck |
| 845 | 2606200932 | Planetary Gear Train |
| 845 | 2606200933 | Planetary Gear Train |
| 91 | 2607335445 | Battery Pack 24V,2,0AH,NICD |
| 91 | 2607335509 | Battery Pack 24V,3,0AH,NIMH |
| 91 | 2607335561 | Battery Pack 24V,2,6AH,NIMH |
| 91 | 2607335445 | Battery Pack 24V,2,0AH,NICD |
| 93 | 2607000366 | Screwdriver Bit |
| 93 | 2607000366 | Screwdriver Bit |
| 94 | 2607001438 | Toolholder |
| 94 | 2607001438 | Toolholder |
