Bosch GSB 21-2 RE percussion drill: exploded parts diagram, 1 sheet, 85 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 21-2 RE: 85 positions on 1 sheet

Bosch GSB 21-2 RE parts list (1 sheet)

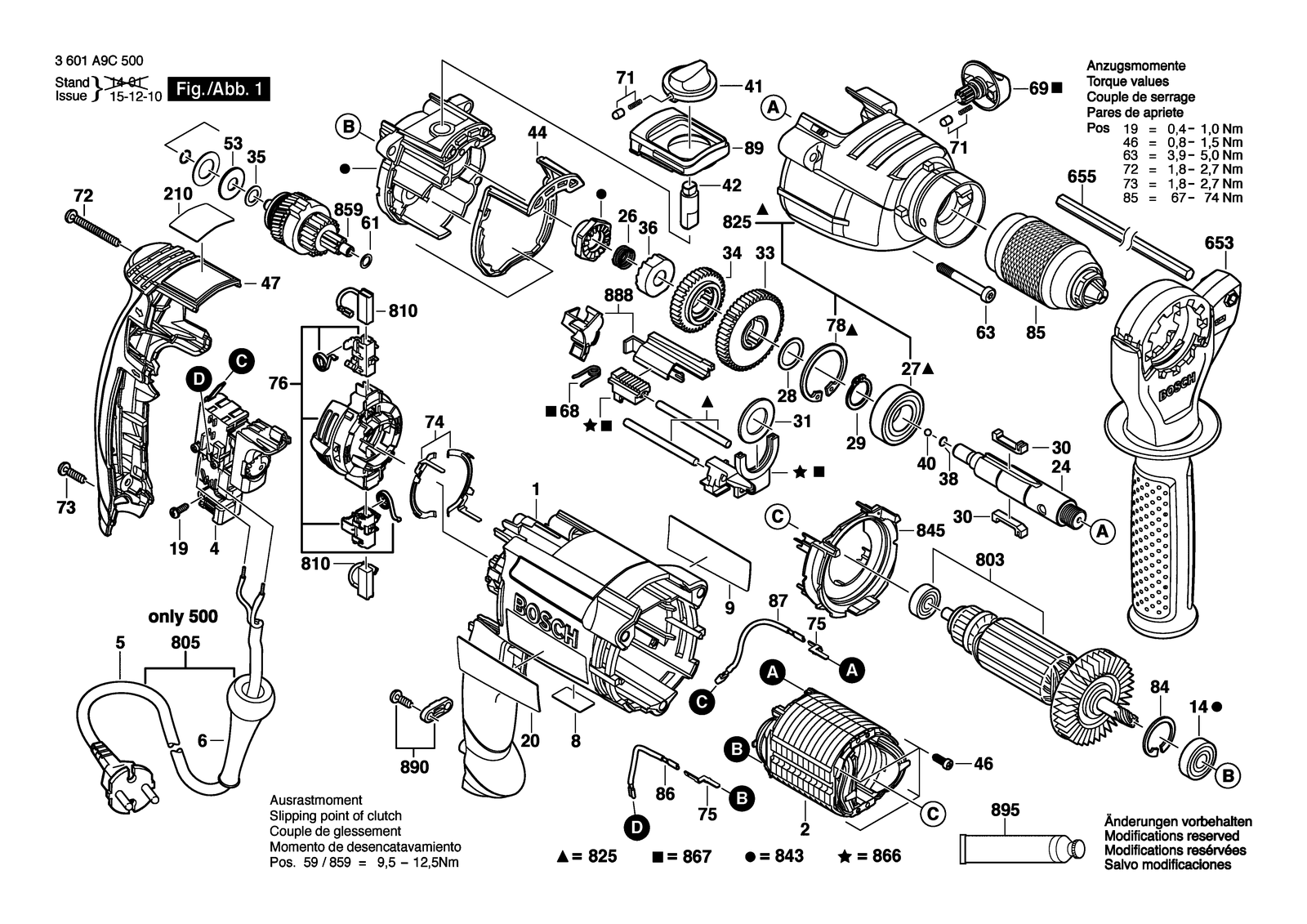

Bosch GSB 21-2 RE parts diagram, sheet 1
No.Part numberPart name
12605105141Motor Housing Dark Blue
142600905095Ball Bearing 9X24X7
192603490017Torx Oval-Head Screw 3X10
22604220727Field 230-240V
22604220736Field 110-115V
22604220737Field 100V
202601111420Reference Plate
202601115903Reference Plate
2102601115906Reference Plate Anti-Rotation
242606135148Drilling Spindle
262604616013Compression Spring
271900905163Groove ball bearing 17X35X10
282600100695Shim 0,5 MM
292916650008Spring retaining ring DIN 471 17X1 MM
302602300032Flat Key
312600101671Retaining Washer
332606317086Cylindrical Gear
342606317098Cylindrical Gear
352600101047Shim 0,3 MM
362600190105Catch Disk
382600000021Shim washer 1,0 MM
382600000030Shim washer 1,35 MM
382600000031Shim washer 1,7 MM
42607200664Switch
42607200671Switch
401903230009Ball DIN 5401-5 G28
401903230010Ball DIN 5401-5,5MM-III-ST
402603230007Ball 5,25 MM
412602026168Rotary Knob Black
422603120064Control Shaft
442601015091Seal
462603435086Tapping Screw
472605132070Housing Cover Dark Blue
51604460401Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F
52604460199Power supply cord AUS 240V 4,15M 2 X 1,0MM Pvc
52604460204Power supply cord GB 110V 4,15M 2 X 1,0MM H05 Rn-F
52604460242Power supply cord J 4,15M 2 X 1,25MM Pvc
52604460244Power supply cord GB 230V 4,15M 2 X 1,0MM H05 Rn-F
52604460287Power supply cord I/br 230V 4,15M 2 X 1,0MM H05 Rn-F
532600550008Disc Spring
61600703034Grommet Ø7,3-Ø8,6X66 MM
61600703035Grommet Ø8,7-Ø9,6X66 MM
62600707075Cable Sleeve Ø6,4-Ø7,0X66 MM
62600707078Grommet
612600100607Shim 0,3 MM
632603435085Headless Screw
6532602025184Auxiliary Handle Black
6551613001009Depth-Gauge SW 6X210 MM
682604616014Compression Spring
692602026117Rotary Knob Black
712600590006Ratchet Cap
722603490027Torx Oval-Head Screw 4X40
732603490022Screw 4X16
742601324062Switch Contact
752601099260Contact
761614336061Brush Plate
782916660014Spring retaining ring DIN 472 35X1,5 MM
82601111026Nameplate
82601111027Nameplate
82601111028Nameplate
82601111103Nameplate
82601111104Nameplate
82601115950Nameplate
82601115966Nameplate
8032604011401Armature 230-240V
8032604011414Armature 110-115V
8032604011415Armature 100V
8052604460912Power supply cord
8101607000485Carbon-Brush Set 10 X 1 617 000 525
8101617000525Carbon-Brush Set 220 V / 127 V
8252605806882Gear Housing
842916660008Spring retaining ring DIN 472-24X1,2 MM
8432605700946Bearing Bracket
8452600148016Air-Deflector Ring
852608572143Keyless Chuck HSB 4
8592606309941Transmission
861614448014Connecting Cable L=80 MM
8662602033018Adjusting Slide
8672606308925Toothed rack
871600A014ZPConnecting Cable L=170
8882601328900Holding Plate Black
892605510206Lens Black
8902607001305Fastening parts kit
8953605430003Grease Tube Albida
92601115904Manufacturer's nameplate GSB 21-2 Re
