Bosch GSB 20-2 REM dummy: exploded parts diagram, 1 sheet, 104 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 20-2 REM: 104 positions on 1 sheet

Bosch GSB 20-2 REM parts list (1 sheet)

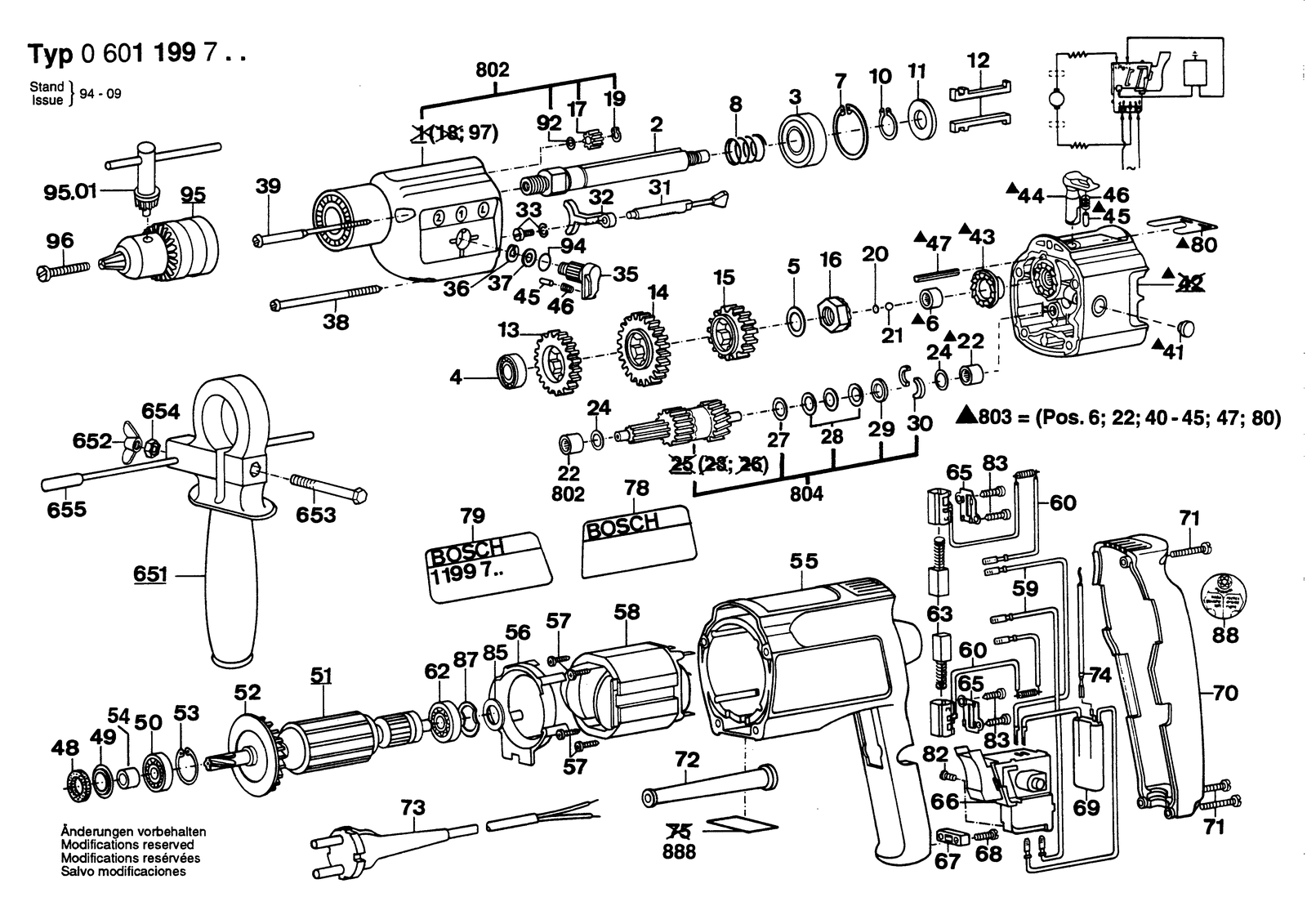

Bosch GSB 20-2 REM parts diagram, sheet 1
No.Part numberPart name
102916650008Spring retaining ring DIN 471 17X1 MM
112600101671Retaining Washer
122602300027Flat Key
132606317038Cylindrical Gear Z=43
142606317036Cylindrical Gear Z=48
152606317037Cylindrical Gear Z=36
162600190031Locating Washer
162600190052Catch Disk
172606317039Cylindrical Gear Z=15
192916640005Spring retaining ring DIN 471-8X0,8 Fst
22606135010Drilling Spindle 1/2"
22606135026Drilling Spindle 1/2"
202600000012Shim washer 0,2 MM
202600000013Shim washer 0,3 MM
202600000014Shim washer 0,5 MM
202600000018Shim washer 0,1 MM
211903230010Ball DIN 5401-5,5MM-III-ST
222600914010Needle-Roller Bearing Ø6 MM
242600100607Shim 0,3 MM
272600100682Shim 0,5 MM
272600100683Shim 0,3 MM
272600100684Shim 0,2 MM
282600550008Disc Spring
292600114001Supporting Disc
31900905163Groove ball bearing 17X35X10
302600116001Locking washer
312603070011Toothed rack
322602033003Fork Lever
332914501011Screw and washer assembly DIN7985-M3X6-Z1-4.8
352602026034Rotary Knob
362916080910Locking washer DIN 6799-7-FST
372600101612Shim 0,5 MM
382603435019Headless Screw 74 MM
392603435012Tapping Screw 79 MM
42600900006Groove ball bearing
412600591002Plug
432600190029Locating Washer
442602026033Rotary Knob
452600590006Ratchet Cap
462600590006Ratchet Cap
472917780105Slotted Spring Pin 4X30 MM DIN 7346
482600108077Felt Washer
492600500002Cupped Washer
51610101617Supporting Disc Thick 2,5 MM
52600101616Shim 0,5 MM
502600905021Groove ball bearing 9X24X7
512604010523Armature With Fan 100V
512604010524Armature 220-240V
512604010526Armature 110-115V
522606610049Fan
532916660008Spring retaining ring DIN 472-24X1,2 MM
542600400008Receptacle
552605104116Motor Housing Blue
562601328033Cover Disc
572603490017Torx Oval-Head Screw 3X10
581604220254Field 220-240V
581614220158Field 100V
582604220395Field 110V
582604220491Field 220-230V
592604448005Cable White L=130 MM
62600917003Needle-Roller Bearing Ø8X8 MM
602604337003Brush Holder
602604448100Connecting Cable White L=68 MM
621900905018Ball Bearing 7X22X7
652604465068Suppression Filter
6511619PB4323Auxiliary Handle
6522915191006Wing Nut M6 DIN 315-G-GTW-40
6532911011220Hex Screw DIN 931-M6X75-8.8
6542601098001Conical Spring Washer
6551613001005Depth-Gauge SW 6X210 MM
661617200089Switch
672601035001Cable Clip
682910611019Tapping Screw DIN 7981-ST3,9X16-C-H
692607329096Suppression Filter
72916660014Spring retaining ring DIN 472 35X1,5 MM
702605132040Housing Cover Blue
712603490023Torx Oval-Head Screw 4X20
722600707059Grommet Ø6,9 MM
722600707060Grommet Ø11,6-Ø12,5X84 MM
722600707061Grommet Ø8,8 MM
732604460053Elec. Cable W/Connection CH 2,65M 2 X 1,0MM H05 Vv-F
732604460056Power supply cord
732604460061Power supply cord AUS 2,6M 2 X 0,75MM Pvc
732604460093Power supply cord
742604448003Cable
782601110093Sticker
792601110204Sticker
82604616002Compression Spring
802601110205Sticker Sunny Side
8022605806970Gear Housing Blue
8042606309907Overload Clutch
822603410001Socket head cap screw M3X6,5-4.8
832603435015Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F
852600101020Shim 0,5 MM
852600101022Shim 0,2 MM
852600101023Shim 0,3 MM
872600150004Shim
882601110230Sticker Yellow
888160111A3H3Nameplate
922600100623Shim 0,5 MM
941600210024O-Ring 12,0X1,0 MM
951608571069Chuck Ø1,5-13 Mm, 1/2"
962603421226Countersunk-Head Screw Lefthand Threads M6X27
972600150018Shim
