Bosch GSB 20-2 RE

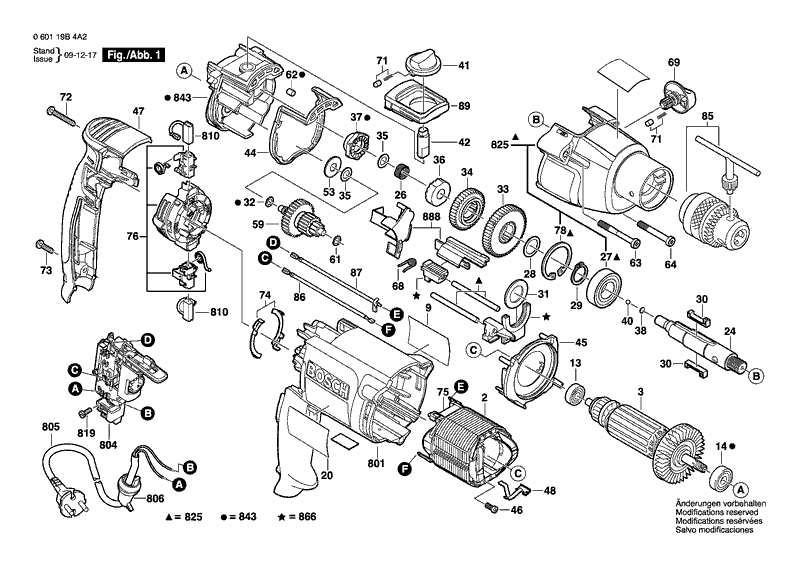

Bosch GSB 20-2 RE percussion drill: exploded parts diagram, 1 sheet, 66 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 20-2 RE: 66 positions on 1 sheet
Bosch GSB 20-2 RE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 13 | F000615056 | Dummy |
| 14 | 1610905005 | Groove ball bearing 9X24X7 |
| 2 | F000607087 | Dummy 127V |
| 2 | F000607088 | Field 220V |
| 20 | F000621617 | Reference Plate |
| 24 | 2606135130 | Drilling Spindle |
| 26 | 2604616013 | Compression Spring |
| 27 | 1900905163 | Groove ball bearing 17X35X10 |
| 28 | 2600100695 | Shim 0,5 MM |
| 29 | 2916660008 | Spring retaining ring DIN 472-24X1,2 MM |
| 3 | F000605130 | Dummy 127V |
| 3 | F000605131 | Armature 220V |
| 30 | 2602300032 | Flat Key |
| 31 | 2600101671 | Retaining Washer |
| 32 | 2600101056 | Shim |
| 33 | 2606317084 | Cylindrical Gear |
| 34 | 2606317098 | Cylindrical Gear |
| 35 | 2600101047 | Shim 0,3 MM |
| 36 | 2600190090 | Catch Disk |
| 37 | F000614005 | Catch Disk |
| 38 | 2600000021 | Shim washer 1,0 MM |
| 38 | 2600000030 | Shim washer 1,35 MM |
| 38 | 2600000031 | Shim washer 1,7 MM |
| 40 | 1903230009 | Ball DIN 5401-5 G28 |
| 40 | 1903230010 | Ball DIN 5401-5,5MM-III-ST |
| 40 | 2603230007 | Ball 5,25 MM |
| 41 | 2602026118 | Rotary Knob |
| 42 | 2603120064 | Control Shaft |
| 44 | 2601015091 | Seal |
| 45 | 2600148008 | Air Guide Plate |
| 46 | F000616052 | Cross Recessed-Head Screw |
| 47 | 2605132055 | Housing Cover Dark Blue |
| 48 | 2601324048 | Contact Spring |
| 53 | 2600550008 | Disc Spring |
| 59 | F000617041 | Transmission |
| 61 | 2600100607 | Shim 0,3 MM |
| 62 | 2600914010 | Needle-Roller Bearing Ø6 MM |
| 63 | 2603435084 | Headless Screw |
| 64 | 2603435085 | Headless Screw |
| 68 | 2604616014 | Compression Spring |
| 69 | 2602026117 | Rotary Knob Black |
| 71 | 2600590006 | Ratchet Cap |
| 72 | 9618087100 | Tapping Screw 4X20 MM |
| 73 | 9618087100 | Tapping Screw 4X20 MM |
| 74 | 1611329024 | Switch Contact |
| 75 | 1614465012 | Adapter module |
| 76 | 1614336061 | Brush Plate |
| 78 | 2916660014 | Spring retaining ring DIN 472 35X1,5 MM |
| 801 | F000601286 | Motor Housing Dark Blue |
| 804 | 2607200586 | Switch |
| 804 | 2607200590 | On-Off Switch |
| 805 | F000609274 | Power supply cord BR 2,00M 2 X 1,00MM H05 Vvf |
| 805 | F000609280 | Power supply cord SAM 2,00M 2 X 1,00MM H05 Vvf |
| 805 | F000609285 | Power supply cord RCH 2,00M 2 X 1,00MM H05 Vvf |
| 806 | 2600707072 | Grommet |
| 810 | 1617000525 | Carbon-Brush Set 220 V / 127 V |
| 819 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 825 | 2605806892 | Gear Housing |
| 843 | 2605700943 | Bearing Bracket |
| 85 | F000632031 | Chuck |
| 86 | F000610041 | Connecting Cable |
| 866 | 2602033018 | Adjusting Slide |
| 87 | F000610042 | Connecting Cable |
| 888 | 2601328900 | Holding Plate Black |
| 89 | 2605510206 | Lens Black |
| 9 | F000621619 | Reference Plate GSB 20-2 |
