Bosch GSB 20-2 RCE
Bosch GSB 20-2 RCE percussion drill: exploded parts diagram, 2 sheets, 82 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 20-2 RCE: 82 positions on 2 sheets
Bosch GSB 20-2 RCE parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605105033 | Motor Housing |
| 14 | 2600905095 | Ball Bearing 9X24X7 |
| 19 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 2 | 2604220617 | Field 100-115V |
| 2 | 2604220692 | Field 220-240V |
| 20 | 2601116343 | Reference Plate |
| 210 | 2601116318 | Reference Plate |
| 24 | 2606135130 | Drilling Spindle |
| 26 | 2604616013 | Compression Spring |
| 27 | 1900905163 | Groove ball bearing 17X35X10 |
| 28 | 2600100695 | Shim 0,5 MM |
| 29 | 2916650008 | Spring retaining ring DIN 471 17X1 MM |
| 3 | 2604011319 | Armature 230-240V |
| 3 | 2604011325 | Armature 110-120V |
| 30 | 2602300032 | Flat Key |
| 31 | 2600101671 | Retaining Washer |
| 33 | 2606317084 | Cylindrical Gear |
| 34 | 2606317098 | Cylindrical Gear |
| 35 | 2600101047 | Shim 0,3 MM |
| 36 | 2600190090 | Catch Disk |
| 38 | 2600000021 | Shim washer 1,0 MM |
| 38 | 2600000030 | Shim washer 1,35 MM |
| 38 | 2600000031 | Shim washer 1,7 MM |
| 4 | 2607200585 | Switch |
| 40 | 1903230009 | Ball DIN 5401-5 G28 |
| 40 | 1903230010 | Ball DIN 5401-5,5MM-III-ST |
| 40 | 2603230007 | Ball 5,25 MM |
| 41 | 2602026118 | Rotary Knob |
| 42 | 2603120064 | Control Shaft |
| 44 | 2601015091 | Seal |
| 45 | 2600148008 | Air Guide Plate |
| 46 | 2603435086 | Tapping Screw |
| 48 | 2601324048 | Contact Spring |
| 5 | 1604460401 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460199 | Power supply cord AUS 240V 4,15M 2 X 1,0MM Pvc |
| 5 | 2604460204 | Power supply cord GB 110V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460244 | Power supply cord GB 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460287 | Power supply cord I/br 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 53 | 2600550008 | Disc Spring |
| 6 | 2600707072 | Grommet |
| 6 | 2600707074 | Grommet |
| 61 | 2600100607 | Shim 0,3 MM |
| 63 | 2603435084 | Headless Screw |
| 64 | 2603435085 | Headless Screw |

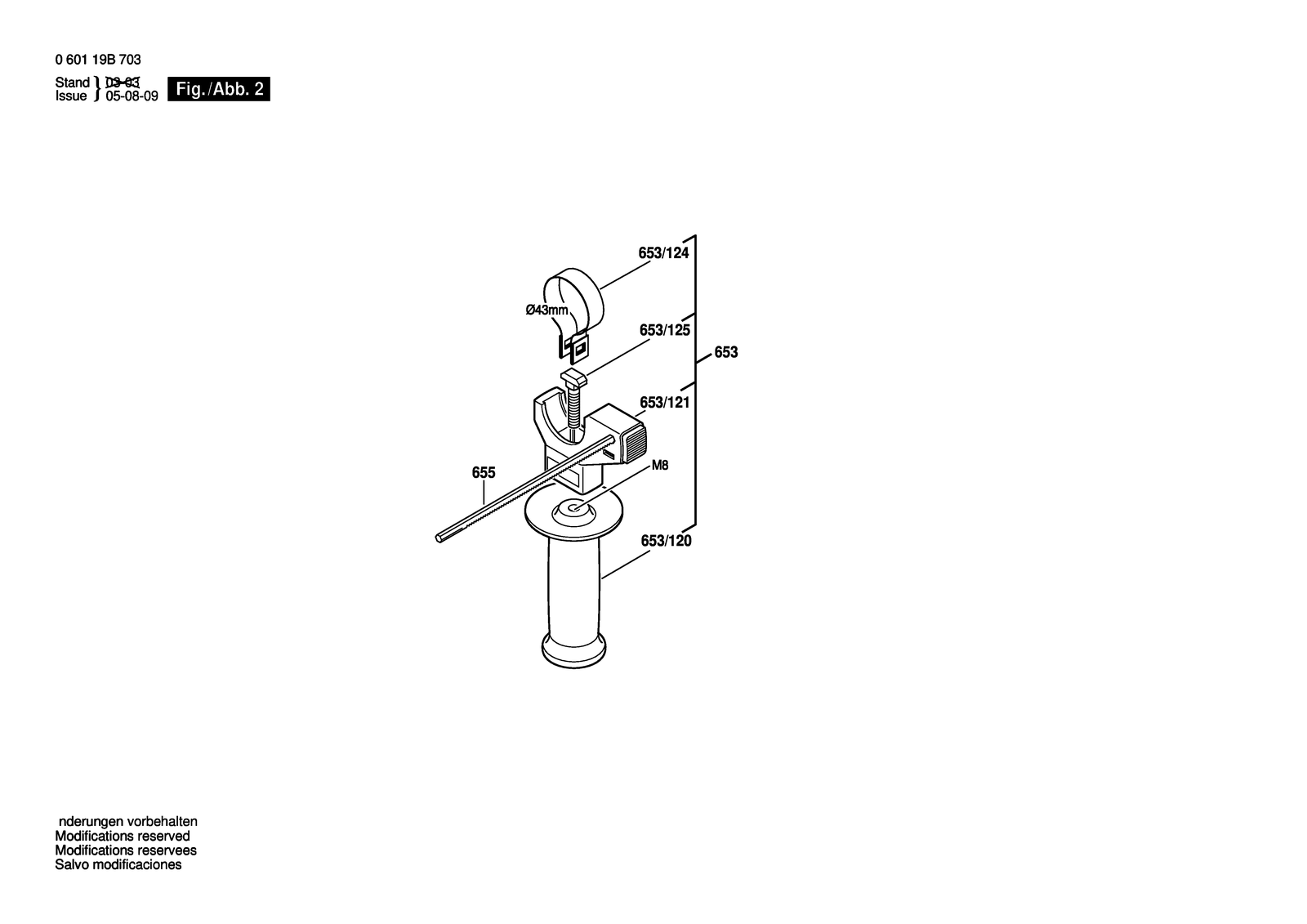

| 653 | 2602025139 | Auxiliary Handle |
| 653/120 | 1612025019 | Auxiliary Handle M8 |
| 653/121 | 2608040235 | Support clamp |
| 653/124 | 1611316006 | Clamping Band Ø43 MM |
| 653/125 | 1613490002 | T-Head Bolt M8X40 MM |
| 655 | 1613001009 | Depth-Gauge SW 6X210 MM |
| 68 | 2604616014 | Compression Spring |
| 69 | 2602026117 | Rotary Knob Black |
| 71 | 2600590006 | Ratchet Cap |
| 72 | 2603490025 | Torx Oval-Head Screw 4X30 |
| 73 | 2603490022 | Screw 4X16 |
| 74 | 1611329024 | Switch Contact |
| 75 | 1600A0032J | Adapter module |
| 76 | 1614336061 | Brush Plate |
| 78 | 2916660014 | Spring retaining ring DIN 472 35X1,5 MM |
| 79 | 2607230084 | Speed governor |
| 79 | 2607230085 | Speed governor |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 808 | 2601116349 | Marking Plate |
| 808 | 2601116390 | Marking Plate |
| 808 | 2601116391 | Marking Plate |
| 808 | 2601116392 | Marking Plate |
| 808 | 2601116393 | Marking Plate |
| 808 | 2601117734 | Marking Plate |
| 810 | 1617000525 | Carbon-Brush Set 220 V / 127 V |
| 825 | 2605806892 | Gear Housing |
| 843 | 2605700943 | Bearing Bracket |
| 847 | 2605132901 | Housing Cover |
| 85 | 2608572143 | Keyless Chuck HSB 4 |
| 859 | 1600A00MM2 | Transmission |
| 86 | 1614448014 | Connecting Cable L=80 MM |
| 866 | 2602033018 | Adjusting Slide |
| 867 | 2606308925 | Toothed rack |
| 888 | 2601328900 | Holding Plate Black |
| 89 | 2605510206 | Lens Black |
| 890 | 2607001305 | Fastening parts kit |
| 891 | 2603410046 | Cross Recessed-Head Screw M3X5 |
| 9 | 2601116339 | Manufacturer's nameplate |
