Bosch GSB 20-2 percussion drill: exploded parts diagram, 1 sheet, 108 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 20-2: 108 positions on 1 sheet

Bosch GSB 20-2 parts list (1 sheet)

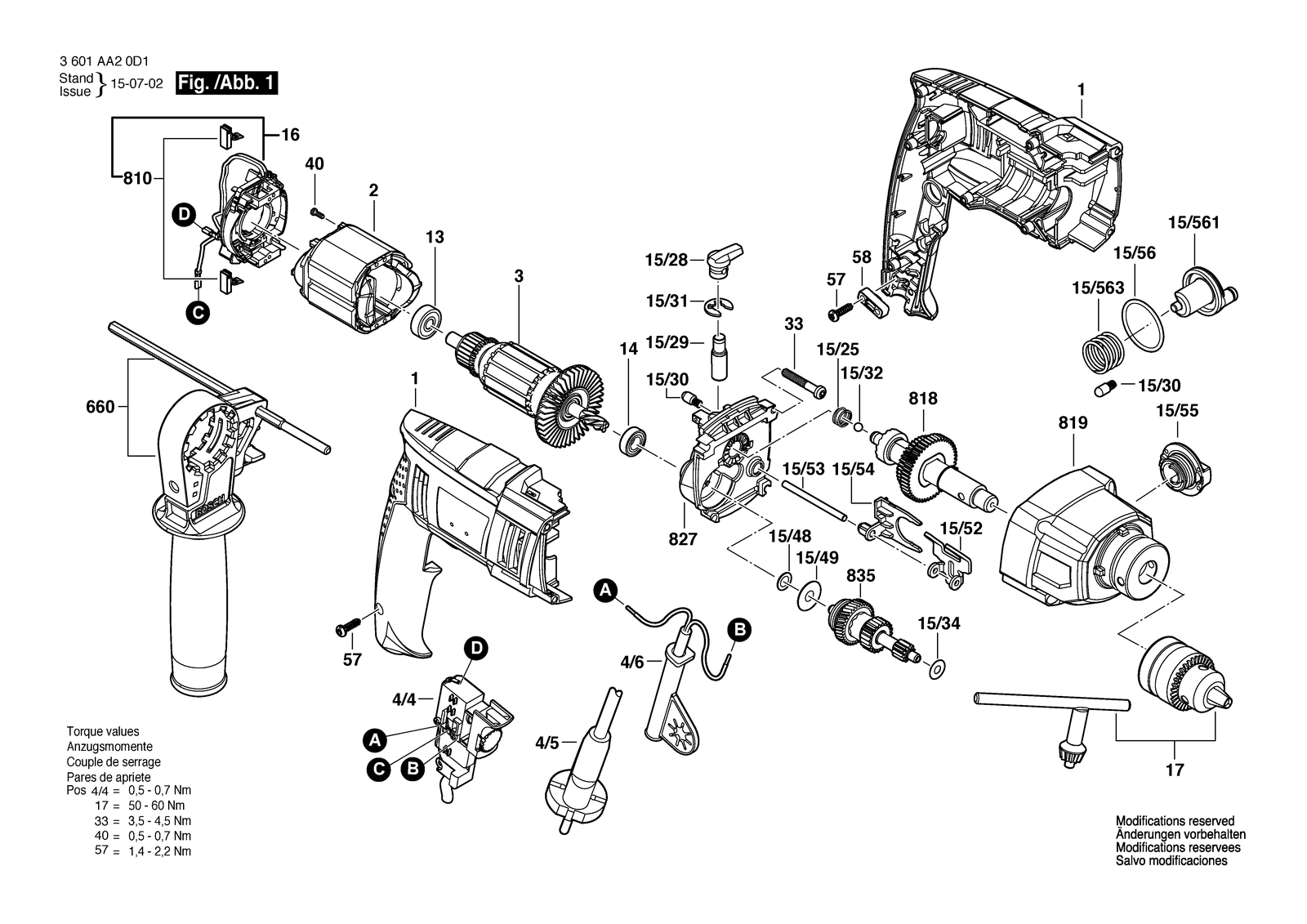

Bosch GSB 20-2 parts diagram, sheet 1
No.Part numberPart name
12609101797Motor Housing
12609101797Motor Housing
12609101797Motor Housing
131900905020Groove ball bearing DIN 625 627-2Z/C3
131900905020Groove ball bearing DIN 625 627-2Z/C3
131900905020Groove ball bearing DIN 625 627-2Z/C3
141900905021Groove ball bearing 9X24X7
141900905021Groove ball bearing 9X24X7
141900905021Groove ball bearing 9X24X7
15/252604616006Compression Spring
15/252604616006Compression Spring
15/252604616006Compression Spring
15/282609100939Knob
15/282609100939Knob
15/282609100939Knob
15/292609111330Control Shaft
15/292609111330Control Shaft
15/292609111330Control Shaft
15/302600590006Ratchet Cap
15/302600590006Ratchet Cap
15/302600590006Ratchet Cap
15/312916080912Locking washer
15/312916080912Locking washer
15/312916080912Locking washer
15/321903230010Ball DIN 5401-5,5MM-III-ST
15/321903230010Ball DIN 5401-5,5MM-III-ST
15/321903230010Ball DIN 5401-5,5MM-III-ST
15/342600100607Shim 0,3 MM
15/342600100607Shim 0,3 MM
15/342600100607Shim 0,3 MM
15/482600101047Shim 0,3 MM
15/482600101047Shim 0,3 MM
15/482600101047Shim 0,3 MM
15/492600550008Disc Spring
15/492600550008Disc Spring
15/492600550008Disc Spring
15/522609111907Adjusting Slide
15/522609111907Adjusting Slide
15/522609111907Adjusting Slide
15/532603105200Straight Pin
15/532603105200Straight Pin
15/532603105200Straight Pin
15/542609101436Holding Plate
15/542609101436Holding Plate
15/542609101436Holding Plate
15/552609101419Rotary Knob
15/552609101419Rotary Knob
15/552609101419Rotary Knob
15/562600206025O-Ring
15/562600206025O-Ring
15/562600206025O-Ring
15/5612609111893Link Guide
15/5612609111893Link Guide
15/5612609111893Link Guide
15/5632604651026Coiled Spring
15/5632604651026Coiled Spring
15/5632604651026Coiled Spring
161600A008A0Brush Plate
161600A008A0Brush Plate
161600A008A0Brush Plate
172609112171Chuck
172609112171Chuck
172609112171Chuck
2F000607168Field 127V
2F000607169Field 220V
2F000607169Field 220V
3F000605249Armature With Fan 127V
3F000605131Armature 220V
3F000605131Armature 220V
331600A00D78Headless Screw
331600A00D78Headless Screw
331600A00D78Headless Screw
4/41607200515Switch
4/41607200515Switch
4/41607200515Switch
4/5F000609073Power supply cord SAM 2,00M 2 X 1,00MM H05 Vvf
4/5F000609079Power supply cord LAM 2,00M 2 X 0,75MM H05 Vvf
4/5F000609011Power supply cord AR 2,00M 2 X 0,75MM H05 Vvf
4/62600707059Grommet Ø6,9 MM
4/62600707059Grommet Ø6,9 MM
4/62600707059Grommet Ø6,9 MM
402910611002Tapping Screw DIN 7981-ST2,2X9,5-C-H
402910611002Tapping Screw DIN 7981-ST2,2X9,5-C-H
402910611002Tapping Screw DIN 7981-ST2,2X9,5-C-H
579618087099Screw 4X16 MM
579618087099Screw 4X16 MM
579618087099Screw 4X16 MM
582601035001Cable Clip
582601035001Cable Clip
582601035001Cable Clip
660F000633033Handle
660F000633033Handle
660F000633033Handle
8101617000525Carbon-Brush Set 220 V / 127 V
8101617000525Carbon-Brush Set 220 V / 127 V
8101617000525Carbon-Brush Set 220 V / 127 V
8182609199446Drilling Spindle
8182609199446Drilling Spindle
8182609199446Drilling Spindle
8192609199450Gear Housing
8192609199450Gear Housing
8192609199450Gear Housing
8272609199449Bearing Flange
8272609199449Bearing Flange
8272609199449Bearing Flange
8352609199447Transmission
8352609199447Transmission
8352609199447Transmission
