Bosch GSB 20-2

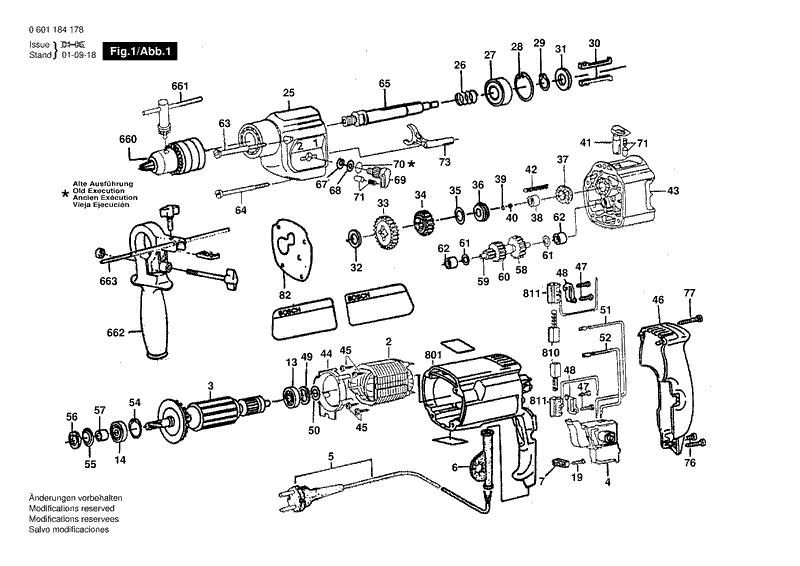

Bosch GSB 20-2 univ. 2speed impact drill: exploded parts diagram, 1 sheet, 69 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 20-2: 69 positions on 1 sheet
Bosch GSB 20-2 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 13 | 1900905020 | Groove ball bearing DIN 625 627-2Z/C3 |
| 14 | 2600905021 | Groove ball bearing 9X24X7 |
| 19 | 9618087099 | Screw 4X16 MM |
| 2 | 9618089012 | Field 220V |
| 2 | F000607061 | Field |
| 25 | F000635240 | Gear Housing |
| 26 | F000635233 | Compression Spring |
| 27 | 1900905163 | Groove ball bearing 17X35X10 |
| 28 | 2916660014 | Spring retaining ring DIN 472 35X1,5 MM |
| 29 | 2916650008 | Spring retaining ring DIN 471 17X1 MM |
| 3 | 9618089013 | Armature With Fan 220V |
| 3 | 9618089015 | Armature 127V |
| 30 | F000600352 | Flat Key |
| 31 | 2600101671 | Retaining Washer |
| 32 | 2600101515 | Shim 1,0 MM |
| 33 | F000635394 | Cylindrical Gear |
| 34 | 2606317037 | Cylindrical Gear Z=36 |
| 35 | 2600101616 | Shim 0,5 MM |
| 35 | 2600101617 | Shim 0,3 MM |
| 36 | 2600190052 | Catch Disk |
| 37 | F000635093 | Locating Washer |
| 38 | 2600917003 | Needle-Roller Bearing Ø8X8 MM |
| 39 | 2600000014 | Shim washer 0,5 MM |
| 4 | 9618086703 | Switch |
| 40 | 1903230010 | Ball DIN 5401-5,5MM-III-ST |
| 41 | F000600280 | Rotary Knob |
| 42 | 2917780105 | Slotted Spring Pin 4X30 MM DIN 7346 |
| 43 | F000635453 | Intermediate Flange |
| 44 | 2601328033 | Cover Disc |
| 45 | F000616052 | Cross Recessed-Head Screw |
| 46 | 2605132025 | Housing Cover Black |
| 47 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 48 | 2601015047 | Brush Plate |
| 49 | 2600101023 | Shim 0,3 MM |
| 5 | F000609243 | Power supply cord |
| 5 | F000609244 | Power supply cord |
| 5 | F000609321 | Power supply cord |
| 50 | F000635092 | Shim |
| 51 | F000600364 | Cable routing |
| 52 | F000600364 | Cable routing |
| 54 | 2916660008 | Spring retaining ring DIN 472-24X1,2 MM |
| 55 | 2600500002 | Cupped Washer |
| 56 | 2600108077 | Felt Washer |
| 57 | 2600400008 | Receptacle |
| 58 | F000635252 | Cylindrical Gear |
| 59 | F000635246 | Toothed Shaft |
| 6 | 2600707060 | Grommet Ø11,6-Ø12,5X84 MM |
| 60 | 2606317055 | Cylindrical Gear Z=22 |
| 61 | 2600100607 | Shim 0,3 MM |
| 62 | 2600914010 | Needle-Roller Bearing Ø6 MM |
| 63 | 2603435012 | Tapping Screw 79 MM |
| 64 | 2603435013 | Headless Screw 65 MM |
| 65 | 9618089688 | Drilling Spindle |
| 660 | F000632031 | Chuck |
| 661 | 1607950039 | Chuck Wrench |
| 662 | F000633033 | Handle |
| 663 | 9618082863 | Vacuum Limiter |
| 67 | 2916080007 | Locking washer DIN 6799-4-FST |
| 68 | 2600100618 | Shim washer |
| 69 | 2602026038 | Rotary Knob Black |
| 7 | F000635217 | Cable Clip |
| 71 | 2600590006 | Ratchet Cap |
| 73 | 2602033006 | Adjusting Slide |
| 76 | 9618087099 | Screw 4X16 MM |
| 77 | 9618087101 | Tapping Screw |
| 801 | 9618088992 | Housing |
| 810 | 9618088985 | Carbon Brush |
| 811 | 2604449027 | Brush Holder |
| 82 | F000600112 | Sealing Plate |
