Bosch GSB 20-2 percussion drill: exploded parts diagram, 2 sheets, 101 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 20-2: 101 positions on 2 sheets

Bosch GSB 20-2 parts list (2 sheets)

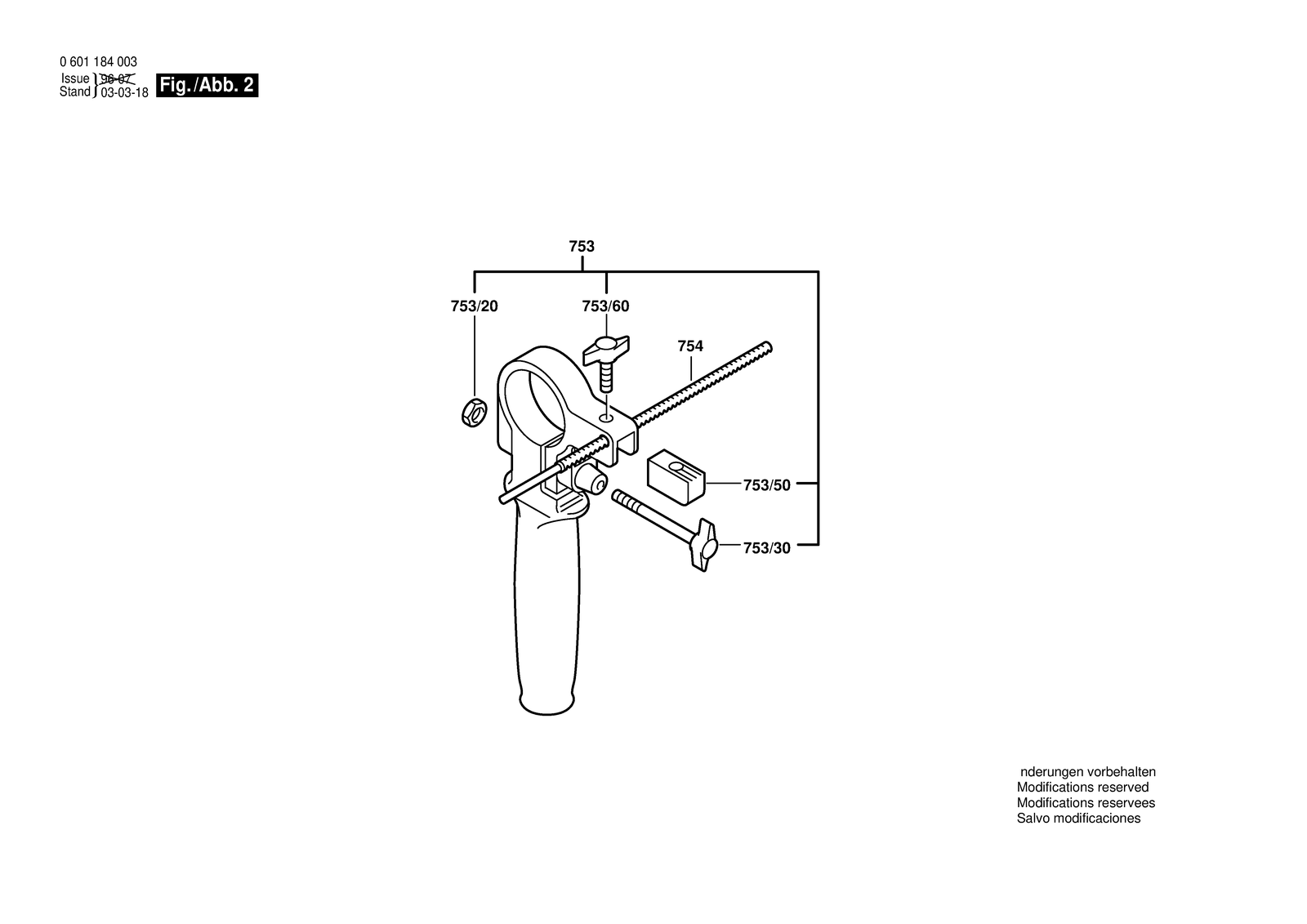

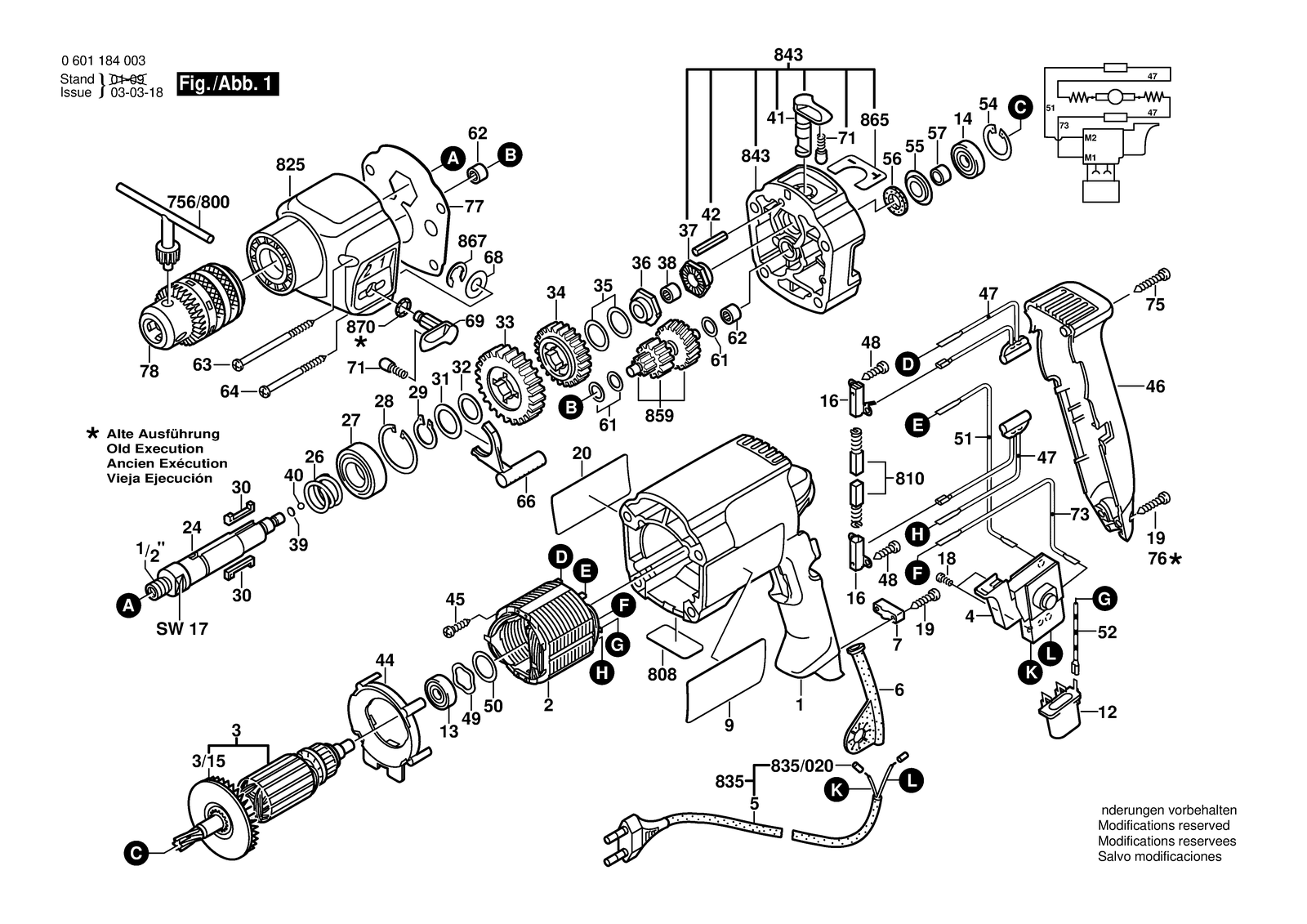

Bosch GSB 20-2 parts diagram, sheet 1Bosch GSB 20-2 parts diagram, sheet 2
No.Part numberPart name
12605104309Motor Housing Blue
122607329114Suppression Filter
131900905018Ball Bearing 7X22X7
142600905095Ball Bearing 9X24X7
162604337003Brush Holder
182603410001Socket head cap screw M3X6,5-4.8
192603490022Screw 4X16
21604220254Field 220-240V
22604220429Field 220-230V
22604220482Field 100-115V
202601118697Reference Plate Shadow Side
242606135013Drilling Spindle 1/2"
262604616002Compression Spring
271900905163Groove ball bearing 17X35X10
282916660014Spring retaining ring DIN 472 35X1,5 MM
292916650008Spring retaining ring DIN 471 17X1 MM
32604010744Armature 230-240V
32604010790Armature 100V
32604010791Armature 110-115V
3/152606610029Fan
302602300028Flat Key
312600101671Retaining Washer
322600101515Shim 1,0 MM
332606317045Cylindrical Gear Z=48
342606317037Cylindrical Gear Z=36
352600101616Shim 0,5 MM
352600101617Shim 0,3 MM
362600190052Catch Disk
372600190057Catch Disk
382600917003Needle-Roller Bearing Ø8X8 MM
392600000012Shim washer 0,2 MM
392600000014Shim washer 0,5 MM
392600000030Shim washer 1,35 MM
42607200260Switch
42607200365On-Off Switch
401903230010Ball DIN 5401-5,5MM-III-ST
412602026017Rotary Knob
422917780105Slotted Spring Pin 4X30 MM DIN 7346
442601328033Cover Disc
452603435086Tapping Screw
462605132049Housing Cover Blue
472604448100Connecting Cable White L=68 MM
472604465068Suppression Filter
482603490017Torx Oval-Head Screw 3X10
492600150004Shim
52604420032Power supply cord GB 2,65M 2 X 1,0MM H05 Vv-F
52604460053Elec. Cable W/Connection CH 2,65M 2 X 1,0MM H05 Vv-F
52604460122Power supply cord Usa/cdn 2,15M 2 X 0,82MM SJ 18/2
52604460135Power supply cord J 2,5M 2 X 0,75MM Pvc
52604460147Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F
52604460157Power supply cord AUS 2,6M 2 X 0,75MM Pvc
52604460283Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F
53604460069Power supply cord GB 110V 2,65M 2 X 1,0MM H05 Vv-F
502600101027Shim washer 0,3 MM
502600101665Shim washer 0,2 MM
502600101667Shim washer 0,5 MM
512604448005Cable White L=130 MM
522604448133Connecting Cable White L=96MM
542916660008Spring retaining ring DIN 472-24X1,2 MM
552600500002Cupped Washer
562600108077Felt Washer
572600400008Receptacle
62600707059Grommet Ø6,9 MM
62600707060Grommet Ø11,6-Ø12,5X84 MM
62600707061Grommet Ø8,8 MM
612600100607Shim 0,3 MM
622600914010Needle-Roller Bearing Ø6 MM
632603435070Headless Screw
642603435071Headless Screw 65 MM
662602033006Adjusting Slide
682600100618Shim washer
692602026038Rotary Knob Black
71611035005Cable Clip
72601035001Cable Clip
712600590006Ratchet Cap
752603490024Torx Oval-Head Screw 4X25
7531619PB4323Auxiliary Handle
753/202915011007Hex Nut DIN 934-M6-8-A
753/301613480007Wing Screw M6X(15)55
753/502608040014Clamping Plate M6
753/601613480008Wing Screw M6X20 MM
7542603001019Depth-Gauge
756/8002607950007Chuck Wrench SG2
762603490023Torx Oval-Head Screw 4X20
772601073012Gasket
781608571044Key Chuck
781608571080Key Chuck Ø1,5-13 MM
808160111A3H3Nameplate
8102604321905Carbon-Brush Set
8102604321913Carbon-Brush Set
8252605806990Gear Housing Blue
8351607000385Power supply cord EU 2,6M 2 X 1,0 MM
835/0201900452012End Splice DIN 46 228-A1-6
8432605700936Intermediate Flange
8592606100903Toothed Shaft Z= 10/22/29
8652601110076Sticker Drill/impact Drill
8672916080007Locking washer DIN 6799-4-FST
8702607010226Parts Set
92601118087Manufacturer's nameplate Sunny Side
92601118688Manufacturer's nameplate
92601118689Manufacturer's nameplate
