Bosch GSB 19-2 REA percussion drill: exploded parts diagram, 2 sheets, 92 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 19-2 REA: 92 positions on 2 sheets

Bosch GSB 19-2 REA parts list (2 sheets)

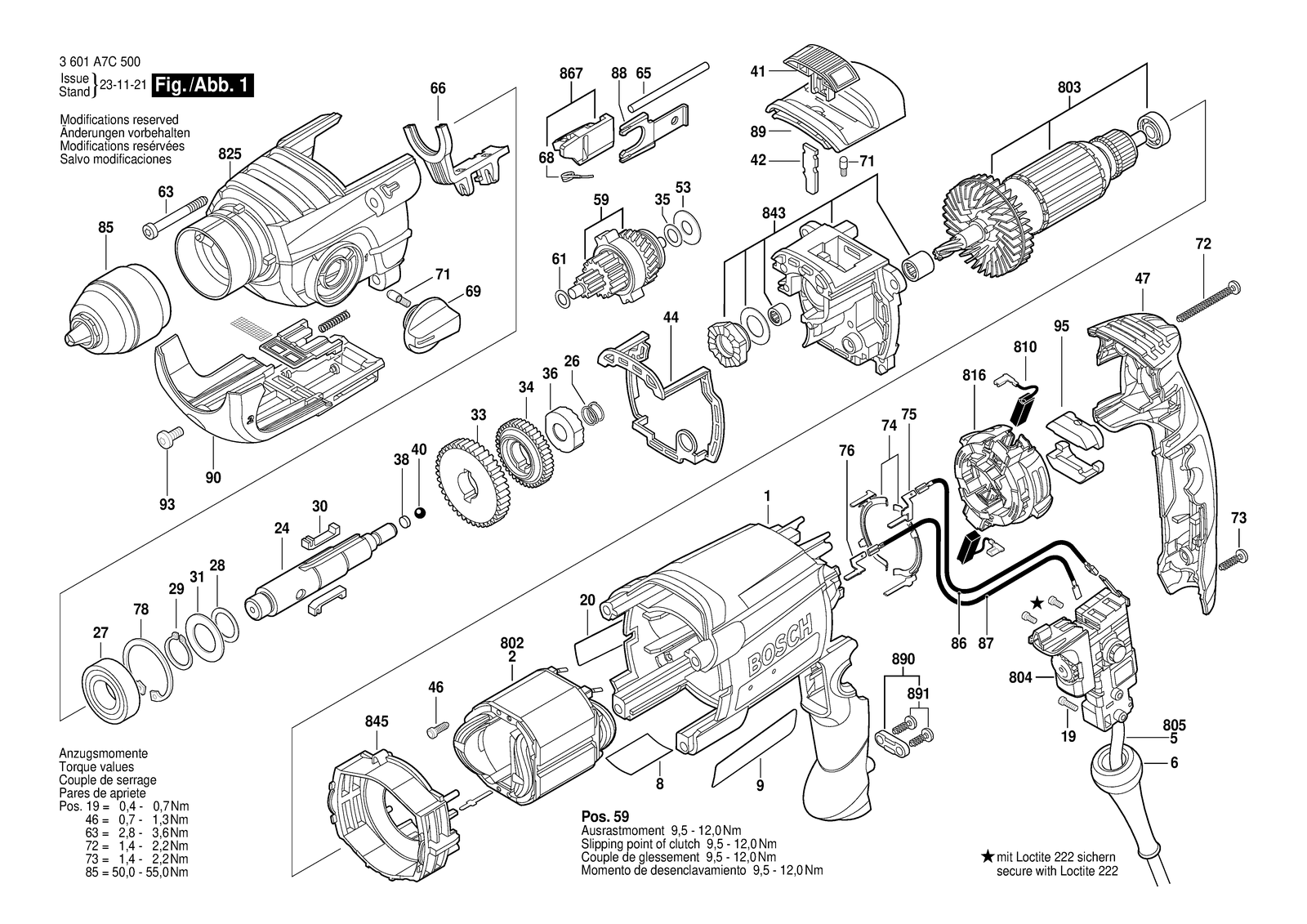

Bosch GSB 19-2 REA parts diagram, sheet 1Bosch GSB 19-2 REA parts diagram, sheet 2
No.Part numberPart name
11618B00A04Motor Housing
192603490017Torx Oval-Head Screw 3X10
21604010BT0Field 230V
21604220456Field 220-240V
22604220732Field 110-120V
202601115517Reference Plate
242606135138Drilling Spindle
262604616006Compression Spring
271900905163Groove ball bearing 17X35X10
282600100695Shim 0,5 MM
292916650008Spring retaining ring DIN 471 17X1 MM
302602300032Flat Key
312600101671Retaining Washer
332606317084Cylindrical Gear
342606317098Cylindrical Gear
352600101047Shim 0,3 MM
362600190105Catch Disk
382600000021Shim washer 1,0 MM
382600000030Shim washer 1,35 MM
382600000031Shim washer 1,7 MM
401903230009Ball DIN 5401-5 G28
401903230010Ball DIN 5401-5,5MM-III-ST
402603230007Ball 5,25 MM
411618B00800Slide Switch
422601074008Pressure Plate
442601015099Seal
461613435007Thread-forming tap. Screw DIN 7981-ST3,5X9,5-F
471618B00A02Housing Cover
51604460401Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F
52604460204Power supply cord GB 110V 4,15M 2 X 1,0MM H05 Rn-F
52604460244Power supply cord GB 230V 4,15M 2 X 1,0MM H05 Rn-F
52604460287Power supply cord I/br 230V 4,15M 2 X 1,0MM H05 Rn-F
532600550008Disc Spring
591600A00MM2Transmission
62600707075Cable Sleeve Ø6,4-Ø7,0X66 MM
612600100607Shim 0,3 MM
632603435085Headless Screw
652603105200Straight Pin
6532602025175Auxiliary Handle Black
653/30/12602025180Handle Black
653/30/22911061252Hex Screw M8X45
6551613001009Depth-Gauge SW 6X210 MM
657/12605190836Housing Black
657/172600591030Seal
657/211619P04479Filter
657/262603490018Torx Oval-Head Screw 3X18
662601099180Adjusting Slide Black
682604616014Compression Spring
692602026157Rotary Knob Black
712600590006Ratchet Cap
722603490027Torx Oval-Head Screw 4X40
732603490022Screw 4X16
742601324062Switch Contact
752601099259Contact
762601099260Contact
782916660014Spring retaining ring DIN 472 35X1,5 MM
8160111A3ZWNameplate
8160111A3ZXNameplate
8160111A3ZYNameplate
8160111A3ZZNameplate
82601115888Nameplate
8032604011914Armature 230-240V
8032604011918Armature 110-120V
8042607200665Switch
8051607000386Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F
8101607000485Carbon-Brush Set 10 X 1 617 000 525
8101617000525Carbon-Brush Set 220 V / 127 V
8161614336061Brush Plate
8252605806884Gear Housing
8431600A0018ABearing Bracket
8452600148012Air Guide Plate
852608572142Keyless Chuck
8522605719902Guide Tube
8532605700947Locking Device
8541619P06105Dust container
8552605730900Connection Part
8562605110902Push-Button
8572605700948Sealing Block
8581619P04548Friction Ring 5 Piece
8592605730901Dust Cap
862604448331Connecting Cable
8672602033900Link Guide Black
872604448334Connecting Cable 48 MM
881618B00808Holding Plate
892605510266Bulb Shield Black
8902607001305Fastening parts kit
8912603410046Cross Recessed-Head Screw M3X5
8953605430003Grease Tube Albida
92601115611Manufacturer's nameplate GSB 19-2 Re
902605510282Bulb Shield Black
932914491411Thread-forming tap. Screw
952601329118Clip Black
