Bosch GSB 19-2

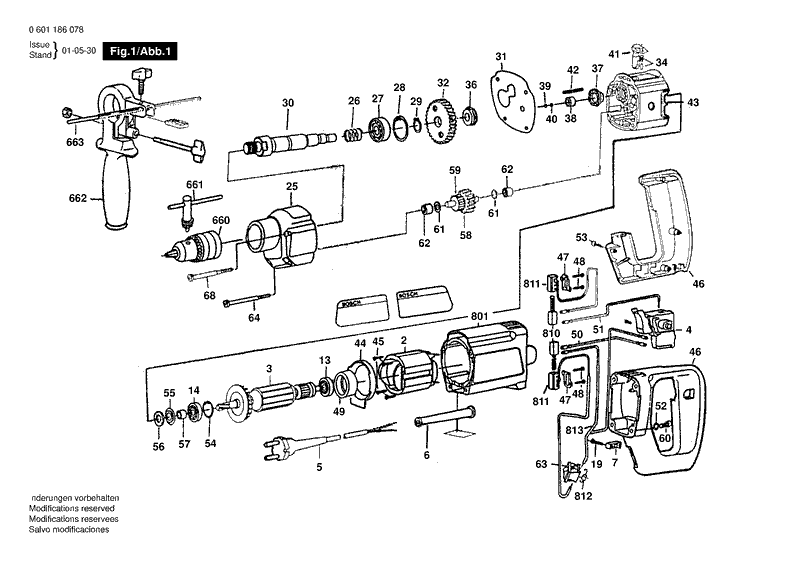

Bosch GSB 19-2 univ. 2speed impact drill: exploded parts diagram, 1 sheet, 64 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 19-2: 64 positions on 1 sheet
Bosch GSB 19-2 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 13 | 2600905023 | Groove ball bearing |
| 14 | 2600905021 | Groove ball bearing 9X24X7 |
| 19 | 9618087099 | Screw 4X16 MM |
| 2 | 9618086542 | Pole Shoe 220V |
| 2 | 9618086543 | Pole Shoe 127V |
| 25 | 9618086612 | Gear Housing |
| 26 | 9618086541 | Compression Spring |
| 27 | 1900905162 | Groove ball bearing 15X32X9 |
| 28 | 2916660013 | Retaining clip DIN 472-32X1,2 MM |
| 29 | 2916650006 | Retaining clip DIN 471-15X1-FST |
| 3 | 9618086544 | Armature With Fan 220V |
| 3 | 9618086545 | Armature 127V |
| 30 | 9618086539 | Drilling Spindle |
| 31 | F000600112 | Sealing Plate |
| 32 | F000635250 | Cylindrical Gear |
| 34 | 2600590006 | Ratchet Cap |
| 36 | 2600190052 | Catch Disk |
| 37 | F000635093 | Locating Washer |
| 38 | 2600917003 | Needle-Roller Bearing Ø8X8 MM |
| 39 | 2600000012 | Shim washer 0,2 MM |
| 39 | 2600000014 | Shim washer 0,5 MM |
| 4 | 2607200373 | Switch |
| 4 | 9618086703 | Switch |
| 40 | 1903230010 | Ball DIN 5401-5,5MM-III-ST |
| 41 | F000600280 | Rotary Knob |
| 42 | 2917780105 | Slotted Spring Pin 4X30 MM DIN 7346 |
| 43 | F000635453 | Intermediate Flange |
| 44 | 2601328033 | Cover Disc |
| 45 | F000616052 | Cross Recessed-Head Screw |
| 46 | 9618086540 | Star Knob |
| 47 | 2601015047 | Brush Plate |
| 48 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 49 | 1610206021 | Rubber Ring |
| 5 | 9618089003 | Power supply cord |
| 5 | F000600295 | Power supply cord AR 2,00M 2 X 0,75MM H07 Vv-F |
| 5 | F000609243 | Power supply cord |
| 50 | 9618083899 | Connecting Cable |
| 51 | 2604448005 | Cable White L=130 MM |
| 52 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 53 | 9618087100 | Tapping Screw 4X20 MM |
| 54 | 2916660008 | Spring retaining ring DIN 472-24X1,2 MM |
| 55 | 2600500002 | Cupped Washer |
| 56 | 2600108077 | Felt Washer |
| 57 | 2600400008 | Receptacle |
| 58 | F000635252 | Cylindrical Gear |
| 59 | F000635247 | Cylindrical Gear |
| 6 | 2600707060 | Grommet Ø11,6-Ø12,5X84 MM |
| 60 | 2910011132 | Socket head cap screw DIN 84-AM4X25-5.8 |
| 61 | 2600100607 | Shim 0,3 MM |
| 62 | 2600914010 | Needle-Roller Bearing Ø6 MM |
| 63 | 9618086560 | Brush Holder |
| 63 | 9618086561 | Brush Holder |
| 64 | 2603435013 | Headless Screw 65 MM |
| 660 | F000632031 | Chuck |
| 661 | 1607950039 | Chuck Wrench |
| 662 | F000633014 | Handle |
| 663 | 1613001005 | Depth-Gauge SW 6X210 MM |
| 68 | 2603435034 | Screw |
| 7 | 2601035001 | Cable Clip |
| 801 | 9618086558 | Motor Housing |
| 810 | 9618088985 | Carbon Brush |
| 811 | 2604449027 | Brush Holder |
| 812 | 9618086548 | Silicon Diode |
| 813 | 9618086549 | Cable |
