Bosch GSB 18VE-2 cordless impact drill: exploded parts diagram, 1 sheet, 33 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 18VE-2: 33 positions on 1 sheet

Bosch GSB 18VE-2 parts list (1 sheet)

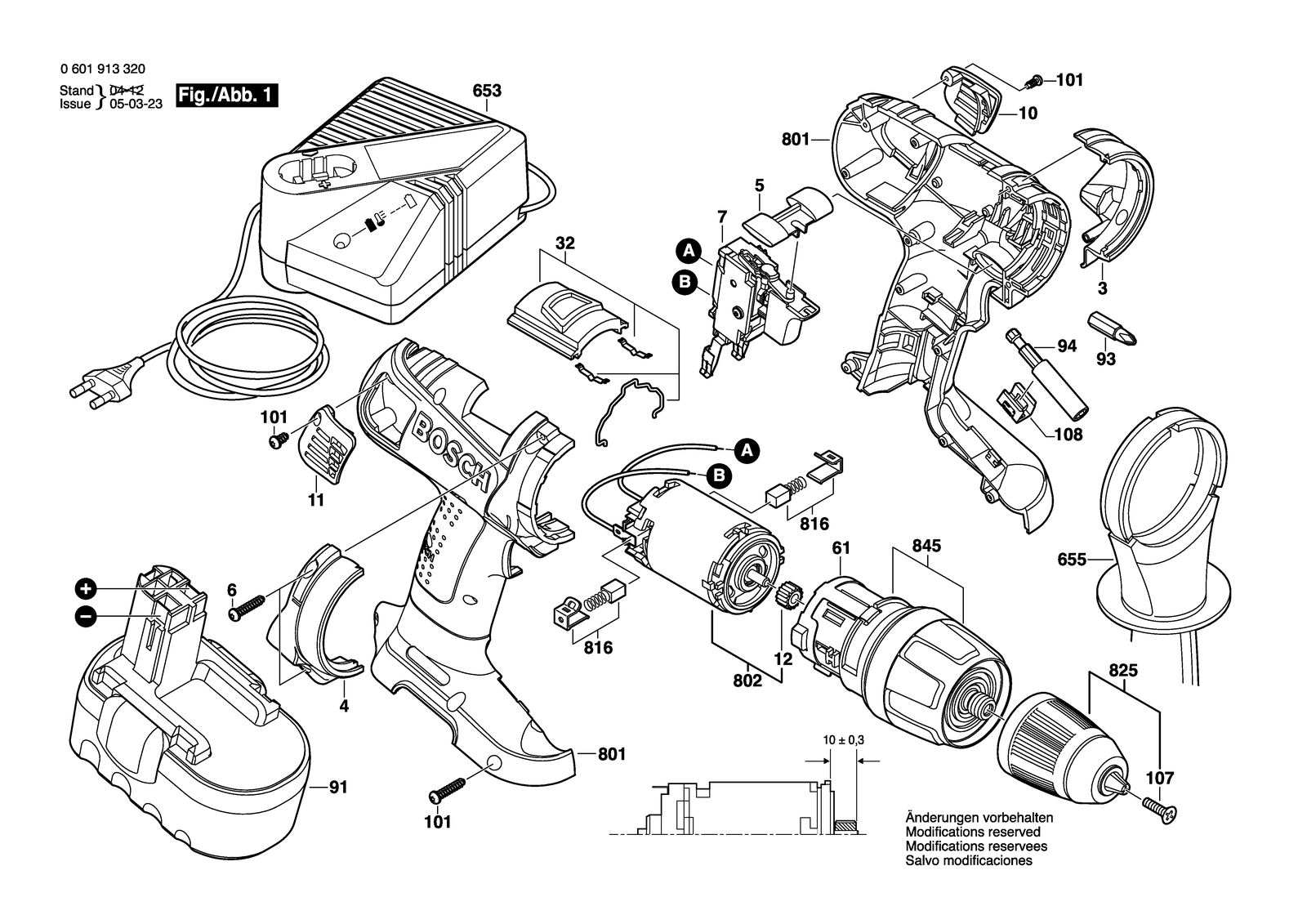

Bosch GSB 18VE-2 parts diagram, sheet 1
No.Part numberPart name
102600508051Cover Black
1012603490018Torx Oval-Head Screw 3X18
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
1082604690027Spring Element
112600508052Cover Black
122606316224Pinion
32605500168Protective Cap
322601099127Adjusting Slide
42605500169Protective Cap
52601099112Adjusting Slide Red
62603410052Thread-forming tap. Screw M3X20
612608040190Support
6532607224425Fast Charger EU 230/7,2-24V, 1H
6532607224427Fast Charger GB 230/7,2-24V, 1H
6532607224429Fast Charger AUS 240/7,2-24V, 1H
6532607224433Fast Charger SAM 115/7,2-24V,1H
6532607224437Fast Charger ROK 220/7,2-24V, 1H
6532607224869Fast Charger CN 220/7,2-24V,1H
6532607225027Fast Charger EU 230/7,2-24V, 30 Min.
6532607225029Fast Charger GB 230/7,2-24V, 30 Min.
6552602025135Auxiliary Handle
72607200457On-Off Switch
8012605105913Housing Section Blue
8022607022861DC motor 18V
8162607034904Carbon-Brush Set
8252608572900Keyless Chuck
8452606200932Planetary Gear Train
912607335265Slide-In Accu Package 18V,2,0AH,NICD
912607335687Slide-In Accu Package 18V, 2,6AH, Nimh, Hd
912607335695Slide-In Accu Package 18V,3,0AH, Nimh, Hd
912607335735Slide-In Accu Package 18V, 2,0AH, Nicd
932607000366Screwdriver Bit
942607001438Toolholder
