Bosch GSB 18V-55

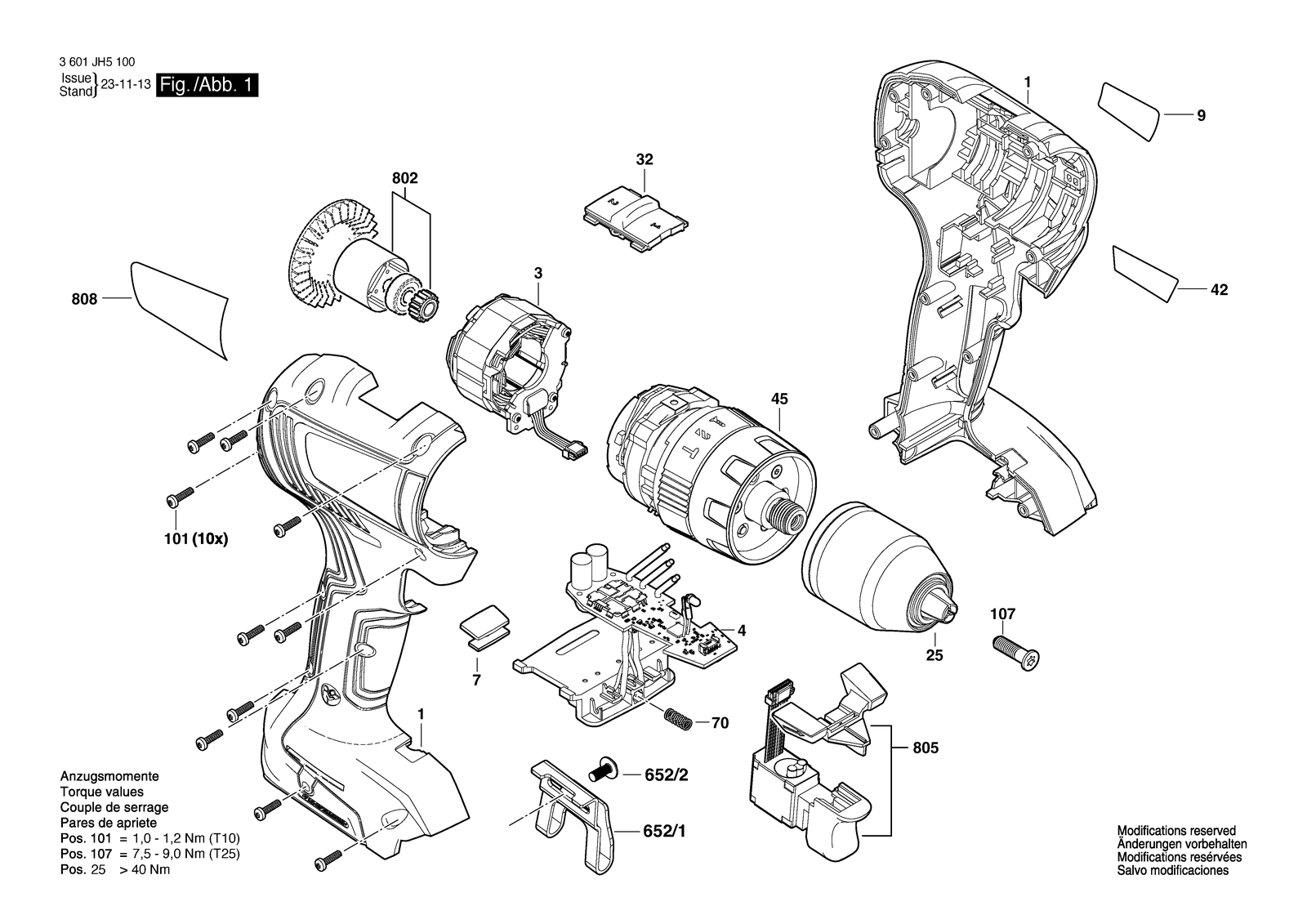

Bosch GSB 18V-55 cordl perc screwdr: exploded parts diagram, 2 sheets, 66 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 18V-55: 66 positions on 2 sheets
Bosch GSB 18V-55 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 16058065S4 | Housing |
| 1 | 16058065S4 | Housing |
| 101 | 2609110201 | Torx Flat-Head Screw 3X16 |
| 101 | 2609110201 | Torx Flat-Head Screw 3X16 |
| 107 | 2603421229 | Countersunk-Head Screw Lefthand Threads M6X23 |
| 107 | 2603421229 | Countersunk-Head Screw Lefthand Threads M6X23 |
| 25 | 1600A027W8 | Keyless Chuck |
| 25 | 1600A02N9H | Keyless Chuck |
| 3 | 1600A016YW | Stator |
| 3 | 1600A016YW | Stator |
| 32 | 2609199812 | Switchover Unit |
| 32 | 2609199812 | Switchover Unit |
| 4 | 16072335FX | Electronics Module |
| 4 | 16072335FX | Electronics Module |
| 42 | 160111C2TS | Sticker |
| 42 | 1619P17199 | Sticker |
| 42 | 160111C2TS | Sticker |
| 45 | 1600A0160S | Gear Box |
| 45 | 1600A0160S | Gear Box |
| 652/1 | 2609111584 | Clip |
| 652/1 | 2609111584 | Clip |
| 652/2 | 2609110834 | Screw |
| 652/2 | 2609110834 | Screw |
| 653 | 2607225921 | Charger EU GAL 1880 CV 230/14,4-18V |
| 653 | 2607225923 | Charger GB 230/10,8-18V, 30 42 S |
| 653 | 2607225935 | Charger Br GAL 1880 CV 220V/14,4-18V |
| 653 | 2607226033 | Fast Charger Rc Gal CV 1880 115/14,4-18V |
| 653 | 2607226253 | Fast Charger Gb GAL 18V-40 |
| 653 | 2607226267 | Fast Charger Cn GAL 18V-40 |
| 653 | 2607226281 | Fast Charger EU GAL 18V-20 220V-240V 12V-18V 2A |
| 653 | 2607226289 | Fast Charger Lam GAL18V-20 |
| 653 | 2607226295 | Fast Charger Br GAL18V-20, 127V - 220V |
| 653 | 2607226299 | Fast Charger Ar GAL18V-20 |
| 653 | 2607226003 | Charger Rok GAX 18V-30 230/10,8-18V 1H |
| 653 | 2607226251 | Fast Charger EU GAL 18V-40, 230V/10,8V – 18V |
| 653 | 2607226253 | Fast Charger Gb GAL 18V-40 |
| 653 | 2607226261 | Fast Charger Jp GAL 18V-40 |
| 7 | 2609100858 | Lens |
| 7 | 2609100858 | Lens |
| 70 | 1609280477 | Compression Spring |
| 70 | 1609280477 | Compression Spring |
| 802 | 1607000DM8 | Motor Spare Parts Set |
| 802 | 1607000DM8 | Motor Spare Parts Set |
| 805 | 1607000E18 | Switch |
| 805 | 1607000E18 | Switch |
| 808 | 160111A76F | Nameplate |
| 808 | 160111A76G | Nameplate |
| 808 | 160111A76H | Nameplate |
| 808 | 1619P17366 | Nameplate |
| 808 | 160111A76L | Nameplate |
| 808 | 160111A76M | Nameplate |
| 808 | 160111A7HY | Nameplate |
| 9 | 160111C36W | Manufacturer's nameplate |
| 9 | 1619P17208 | Manufacturer's nameplate |
| 9 | 160111C36H | Manufacturer's nameplate |
| 91 | 1607A350BJ | Battery Pack Rc GBA 18V 2.0AH Scm |
| 91 | 1607A350JR | Battery Pack GBA 18V 1.5AH |
| 91 | 1607A350MA | Battery Pack GBA 18V 2.0AH |
| 91 | 1607A350MN | Battery Pack GBA 18V 2.0AH |
| 91 | 2607337069 | Battery Pack Bbs Mr, 18V, 5,0 AH 48 S |
| 91 | 1607A35073 | Battery Pack Rok GBA 18V 3.0AH |
| 91 | 1607A350AN | Battery Pack GBA 18V 4.0AH Procore Scm |
| 91 | 1607A350BH | Battery Pack GBA 18V 2.0AH Scm Kr |
| 91 | 1607A350M0 | Battery Pack GBA 18V 4.0AH |
| 91 | 1607A350MA | Battery Pack GBA 18V 2.0AH |
| 91 | 2607336851 | Battery Pack Bbs Mr-L, 18V, 2,0 Ah |
