Bosch GSB 18V-45
Bosch GSB 18V-45 cordl perc screwdr: exploded parts diagram, 1 sheet, 22 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

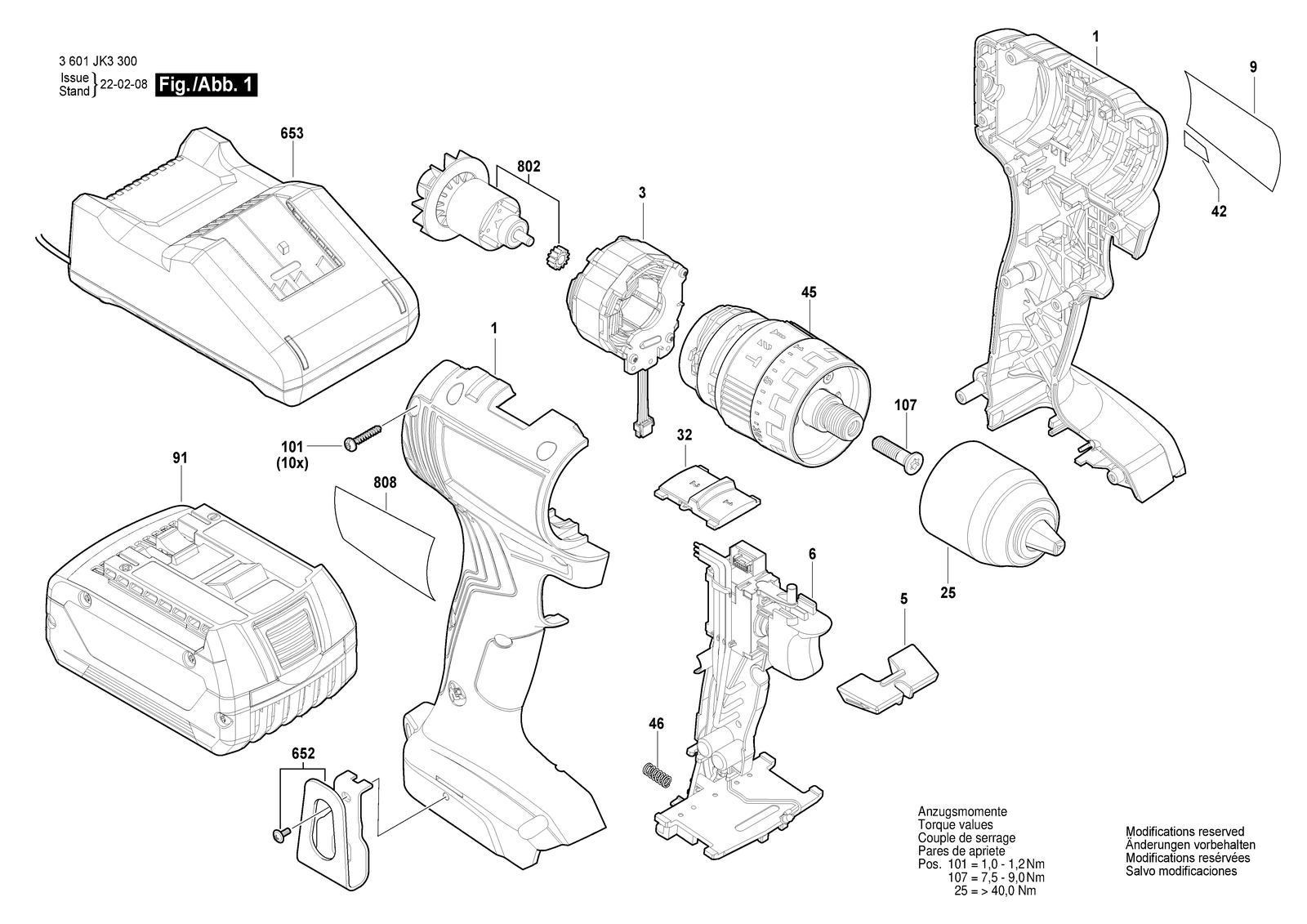

All parts of Bosch GSB 18V-45: 22 positions on 1 sheet
Bosch GSB 18V-45 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 160580662H | Housing |
| 101 | 2609110201 | Torx Flat-Head Screw 3X16 |
| 107 | 2603421229 | Countersunk-Head Screw Lefthand Threads M6X23 |
| 25 | 1600A02N9H | Keyless Chuck |
| 3 | 1619P15696 | Stator |
| 32 | 1600A012MM | Switchover Unit |
| 32 | 1600A0291C | Switchover Unit |
| 42 | 160111C49H | Sticker |
| 45 | 1600A0265A | Gear Box |
| 46 | 1609280477 | Compression Spring |
| 5 | 1600A01Z04 | Changeover Lever |
| 6 | 2607202513 | Electronics Module |
| 652 | 1600A027W3 | Clip |
| 653 | 2607226261 | Fast Charger Jp GAL 18V-40 |
| 653 | 2607226281 | Fast Charger EU GAL 18V-20 220V-240V 12V-18V 2A |
| 653 | 2607226293 | Fast Charger |
| 802 | 1607000EC2 | Rotor |
| 808 | 160111A95A | Nameplate |
| 808 | 160111A9LF | Nameplate |
| 9 | 160111C4DF | Manufacturer's nameplate |
| 91 | 1607A350MC | Battery Pack Kor GBA 18V 2.0AH |
| 91 | 1607A350ME | Battery Pack |
