Bosch GSB 18 VE-EC
Bosch GSB 18 VE-EC cordless drill driver: exploded parts diagram, 2 sheets, 83 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

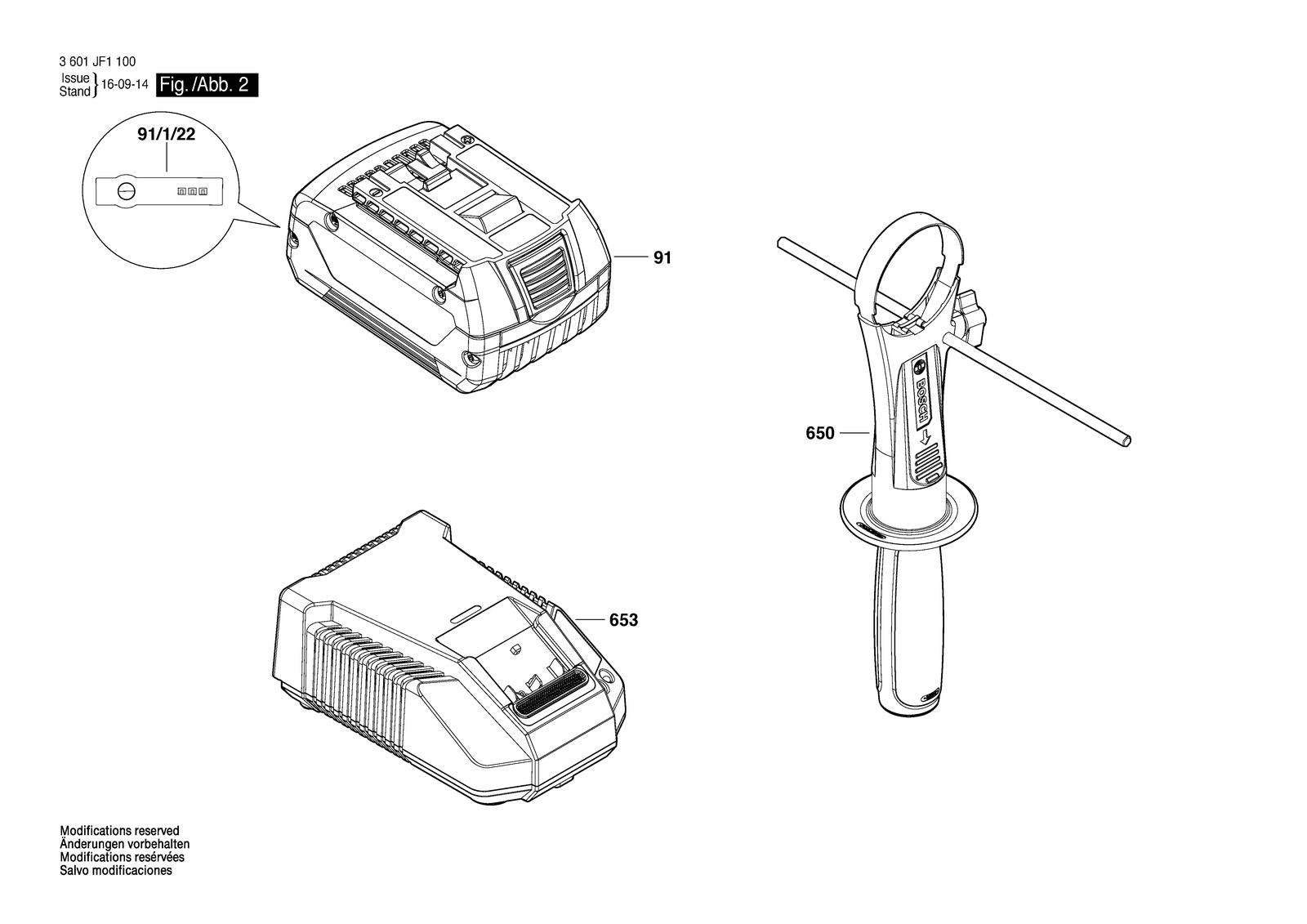

All parts of Bosch GSB 18 VE-EC: 83 positions on 2 sheets
Bosch GSB 18 VE-EC parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609101550 | Housing |
| 1 | 2609101604 | Housing |
| 1 | 2609101604 | Housing |
| 101 | 2609110353 | Torx Oval-Head Screw |
| 101 | 2609110353 | Torx Oval-Head Screw |
| 101 | 2609110353 | Torx Oval-Head Screw |
| 106 | 2609101581 | Color clip |
| 106 | 2609101581 | Color clip |
| 106 | 2609101581 | Color clip |
| 107 | 2603421229 | Countersunk-Head Screw Lefthand Threads M6X23 |
| 107 | 2603421229 | Countersunk-Head Screw Lefthand Threads M6X23 |
| 107 | 2603421229 | Countersunk-Head Screw Lefthand Threads M6X23 |
| 25 | 1600A01YE8 | Keyless Chuck |
| 25 | 1600A01YE8 | Keyless Chuck |
| 25 | 1600A01YE8 | Keyless Chuck |
| 3 | 2609170278 | O-Ring |
| 3 | 2609170278 | O-Ring |
| 3 | 2609170278 | O-Ring |
| 4 | 16072335AB | Electronics Module |
| 4 | 16072335AA | Electronics Module |
| 4 | 16072335AB | Electronics Module |
| 4/3 | 1607503182 | Printed-Board Assembly |
| 4/3 | 1607503182 | Printed-Board Assembly |
| 4/3 | 1607503182 | Printed-Board Assembly |
| 45 | 1600A003BB | Gear Box |
| 45 | 2609199916 | Gear Box |
| 45 | 2609199916 | Gear Box |
| 46 | 1609280477 | Compression Spring |
| 46 | 1609280477 | Compression Spring |
| 46 | 1609280477 | Compression Spring |
| 47 | 2609101490 | Lens |
| 47 | 2609101490 | Lens |
| 47 | 2609101490 | Lens |
| 5 | 2609101551 | Adjusting lever |
| 5 | 2609101551 | Adjusting lever |
| 5 | 2609101551 | Adjusting lever |
| 650 | 160202507X | Auxiliary Handle |
| 650 | 160202507X | Auxiliary Handle |
| 650 | 160202507X | Auxiliary Handle |
| 653 | 2607225321 | Charger EU 230/14,4-18V, 30 40 S |
| 653 | 2607225921 | Charger EU GAL 1880 CV 230/14,4-18V |
| 653 | 2607225923 | Charger GB 230/10,8-18V, 30 42 S |
| 653 | 2607225321 | Charger EU 230/14,4-18V, 30 40 S |
| 653 | 2607225921 | Charger EU GAL 1880 CV 230/14,4-18V |
| 653 | 2607225923 | Charger GB 230/10,8-18V, 30 42 S |
| 653 | 2607225321 | Charger EU 230/14,4-18V, 30 40 S |
| 653 | 2607225921 | Charger EU GAL 1880 CV 230/14,4-18V |
| 653 | 2607225923 | Charger GB 230/10,8-18V, 30 42 S |
| 655 | 2609199748 | Bit holder |
| 655 | 2609199748 | Bit holder |
| 655 | 2609199748 | Bit holder |
| 656/1 | 2609111584 | Clip |
| 656/1 | 2609111584 | Clip |
| 656/1 | 2609111584 | Clip |
| 656/2 | 2609110834 | Screw |
| 656/2 | 2609110834 | Screw |
| 656/2 | 2609110834 | Screw |
| 802 | 2609199943 | Motor Spare Parts Set |
| 802 | 2609199942 | Motor Spare Parts Set |
| 802 | 2609199943 | Motor Spare Parts Set |
| 804 | 1609280820 | Contact retainer 18V |
| 804 | 1609280821 | Contact retainer 14,4 V |
| 804 | 1609280820 | Contact retainer 18V |
| 808 | 160111A4WJ | Nameplate |
| 808 | 2609136621 | Nameplate |
| 808 | 160111A4WN | Nameplate |
| 857 | 2609101554 | Switch Slide |
| 857 | 2609101554 | Switch Slide |
| 857 | 2609101554 | Switch Slide |
| 858 | 2609112036 | Switch Spring |
| 858 | 2609112036 | Switch Spring |
| 858 | 2609112036 | Switch Spring |
| 9 | 2609136418 | Manufacturer's nameplate GSR 18 Ve-Ec |
| 9 | 2609136624 | Manufacturer's nameplate GSB 14,4 Ve-Ec |
| 9 | 2609136625 | Manufacturer's nameplate GSB 18 Ve-Ec |
| 91 | 1607A350M0 | Battery Pack GBA 18V 4.0AH |
| 91 | 2607337069 | Battery Pack Bbs Mr, 18V, 5,0 AH 48 S |
| 91 | 2607336813 | Battery Pack Bbs-Mr Xl-Pack 14,4V, Li, 4,0 Ah |
| 91 | 1607A350M0 | Battery Pack GBA 18V 4.0AH |
| 91 | 2607337069 | Battery Pack Bbs Mr, 18V, 5,0 AH 48 S |
| 91/1/22 | 2601115537 | Sticker |
| 91/1/22 | 2601115537 | Sticker |
| 91/1/22 | 2601115537 | Sticker |
