Bosch GSB 18 V-EC

Bosch GSB 18 V-EC cordl perc screwdr: exploded parts diagram, 1 sheet, 24 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 18 V-EC: 24 positions on 1 sheet

Bosch GSB 18 V-EC parts list (1 sheet)

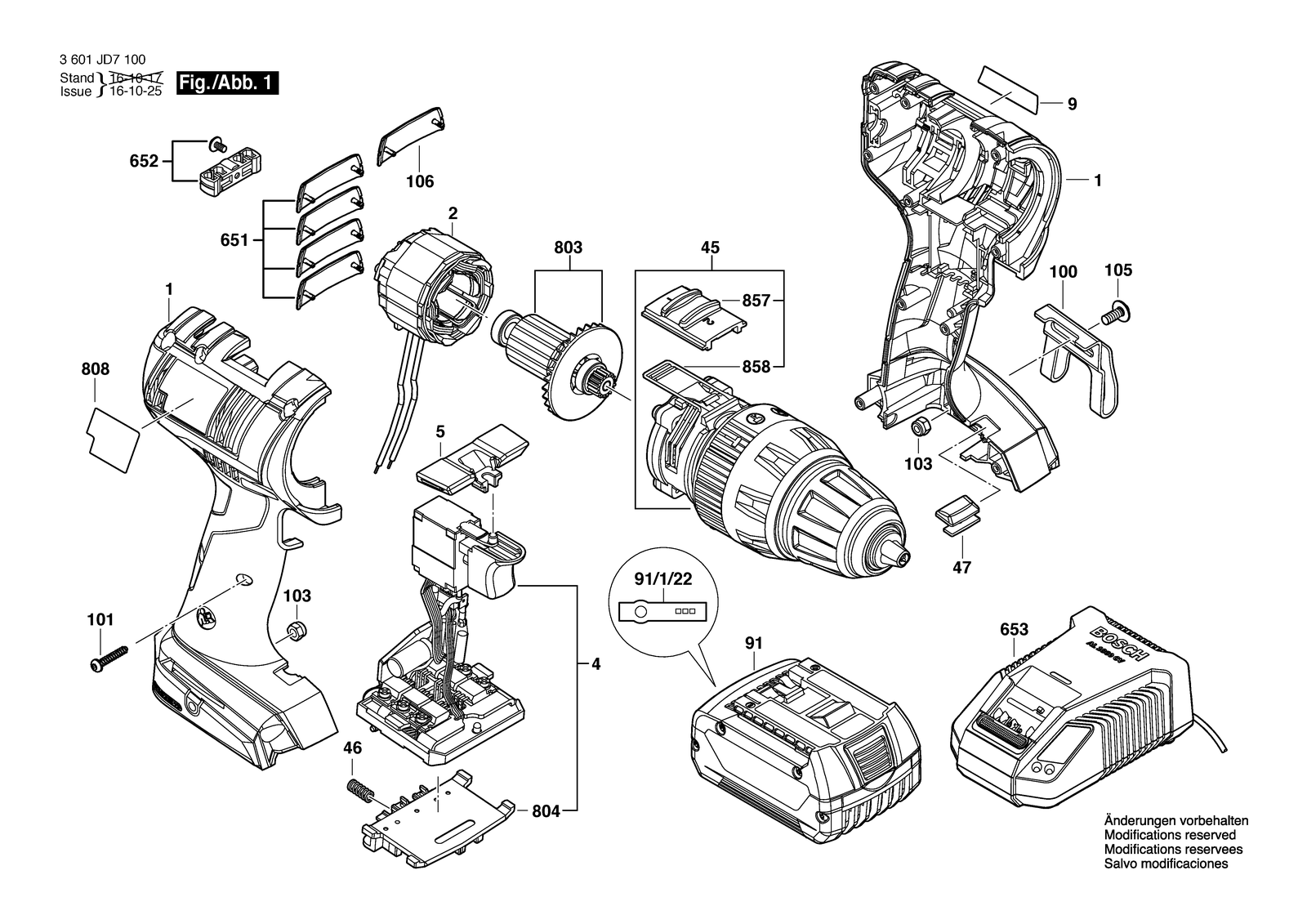

Bosch GSB 18 V-EC parts diagram, sheet 1
No.Part numberPart name
12609101226Housing
1002609110956Clip
1012609110353Torx Oval-Head Screw
1032609110835Nut
1052609110834Screw
1062609101409Color clip
21619P08583Stator 18V
41600A001BGElectronic Module
452609111567Gear Box
461609280477Compression Spring
472609100858Lens
52609101227Adjusting lever
6512609199746Color clip
6522609199748Bit holder
6532607225321Charger EU 230/14,4-18V, 30 40 S
6532607225923Charger GB 230/10,8-18V, 30 42 S
8032609199671Rotor 14,4-18V
8041609280478Contact retainer
8081600A00Z2CNameplate
8572609101293Switch Slide
8582609111078Switch Spring
92609134763Manufacturer's nameplate GSB 18 V-Ec
911607A350M0Battery Pack GBA 18V 4.0AH
91/1/222601115537Sticker
