Bosch GSB 18-2 RE

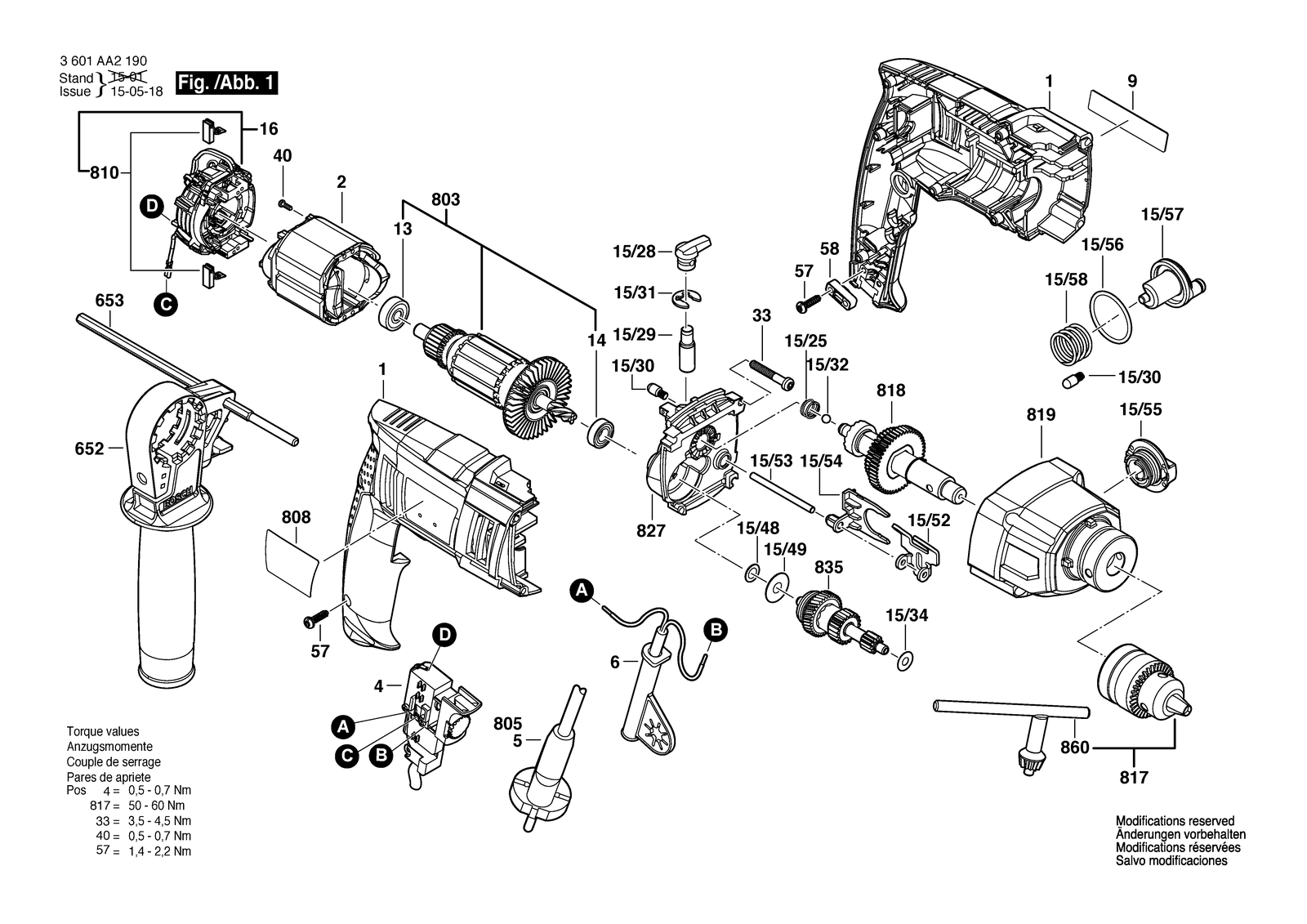

Bosch GSB 18-2 RE percussion drill: exploded parts diagram, 1 sheet, 97 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 18-2 RE: 97 positions on 1 sheet

Bosch GSB 18-2 RE parts list (1 sheet)

Bosch GSB 18-2 RE parts diagram, sheet 1
No.Part numberPart name
12609100936Motor Housing
12609100936Motor Housing
131900905020Groove ball bearing DIN 625 627-2Z/C3
131900905020Groove ball bearing DIN 625 627-2Z/C3
141900905021Groove ball bearing 9X24X7
141900905021Groove ball bearing 9X24X7
15/252604616006Compression Spring
15/252604616006Compression Spring
15/282609100939Knob
15/282609100939Knob
15/292609111330Control Shaft
15/292609111330Control Shaft
15/302600590006Ratchet Cap
15/302600590006Ratchet Cap
15/312916080912Locking washer
15/312916080912Locking washer
15/321903230010Ball DIN 5401-5,5MM-III-ST
15/321903230010Ball DIN 5401-5,5MM-III-ST
15/342609111487Shim
15/342609111487Shim
15/482600101047Shim 0,3 MM
15/482600101047Shim 0,3 MM
15/492600550008Disc Spring
15/492600550008Disc Spring
15/522609111907Adjusting Slide
15/522609111907Adjusting Slide
15/532609111220Slide Pin
15/532609111220Slide Pin
15/542609101436Holding Plate
15/542609101436Holding Plate
15/552609101419Rotary Knob
15/552609101419Rotary Knob
15/562600206025O-Ring
15/562600206025O-Ring
15/572609111893Link Guide
15/572609111893Link Guide
15/582604651026Coiled Spring
15/582604651026Coiled Spring
161600A021CLBrush Plate
162609199439Brush Plate
161600A00HT0Brush Plate
162609199439Brush Plate
21619PS0866Field
22609120463Field
22609120463Field
22609120464Field 120V
332609111383Headless Screw
332609111383Headless Screw
41607200270Switch Black
41607200266Switch
41607200270Switch Black
402910611002Tapping Screw DIN 7981-ST2,2X9,5-C-H
402910611002Tapping Screw DIN 7981-ST2,2X9,5-C-H
51604460244Power supply cord GB 230V 4,15M 2 X 1,0MM H05RN-F
5160446079KPower supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F
52604460249Power supply cord SAM 2,7M 2 X 0,82MM SJ 18/2
52604460283Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F
572603490022Screw 4X16
572603490022Screw 4X16
581611035005Cable Clip
582601035001Cable Clip
582601035001Cable Clip
62600707059Grommet Ø6,9 MM
62600707060Grommet Ø11,6-Ø12,5X84 MM
62600707060Grommet Ø11,6-Ø12,5X84 MM
6522609199430Auxiliary Handle
6522609199430Auxiliary Handle
6532603001009Depth-Gauge
6532603001009Depth-Gauge
8031619PS1248Armature set
8031619PS1248Armature set
8031619PS1249Armature set
8032609199451Armature set 230-240V
8051607000386Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F
808160111A78RNameplate
8081619P21393Nameplate
8082609134343Nameplate
8082609134347Nameplate
8082609134348Nameplate
8082609134349Nameplate
8101617000525Carbon-Brush Set 220 V / 127 V
8101617000525Carbon-Brush Set 220 V / 127 V
8172609112171Chuck
8171608571080Key Chuck Ø1,5-13 MM
8182609199446Drilling Spindle
8182609199446Drilling Spindle
8192609199450Gear Housing
8192609199450Gear Housing
8272609199449Bearing Flange
8272609199449Bearing Flange
8352609199447Transmission
8352609199447Transmission
8602607950007Chuck Wrench SG2
8602607950007Chuck Wrench SG2
9160111C11BManufacturer's nameplate GSB 18-2 Re
92609134894Manufacturer's nameplate GSB 18-2 Re
92609133447Manufacturer's nameplate GSB 20-2 Re
