Bosch GSB 18-2 RE

Bosch GSB 18-2 RE percussion drill: exploded parts diagram, 2 sheets, 100 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 18-2 RE: 100 positions on 2 sheets

Bosch GSB 18-2 RE parts list (2 sheets)

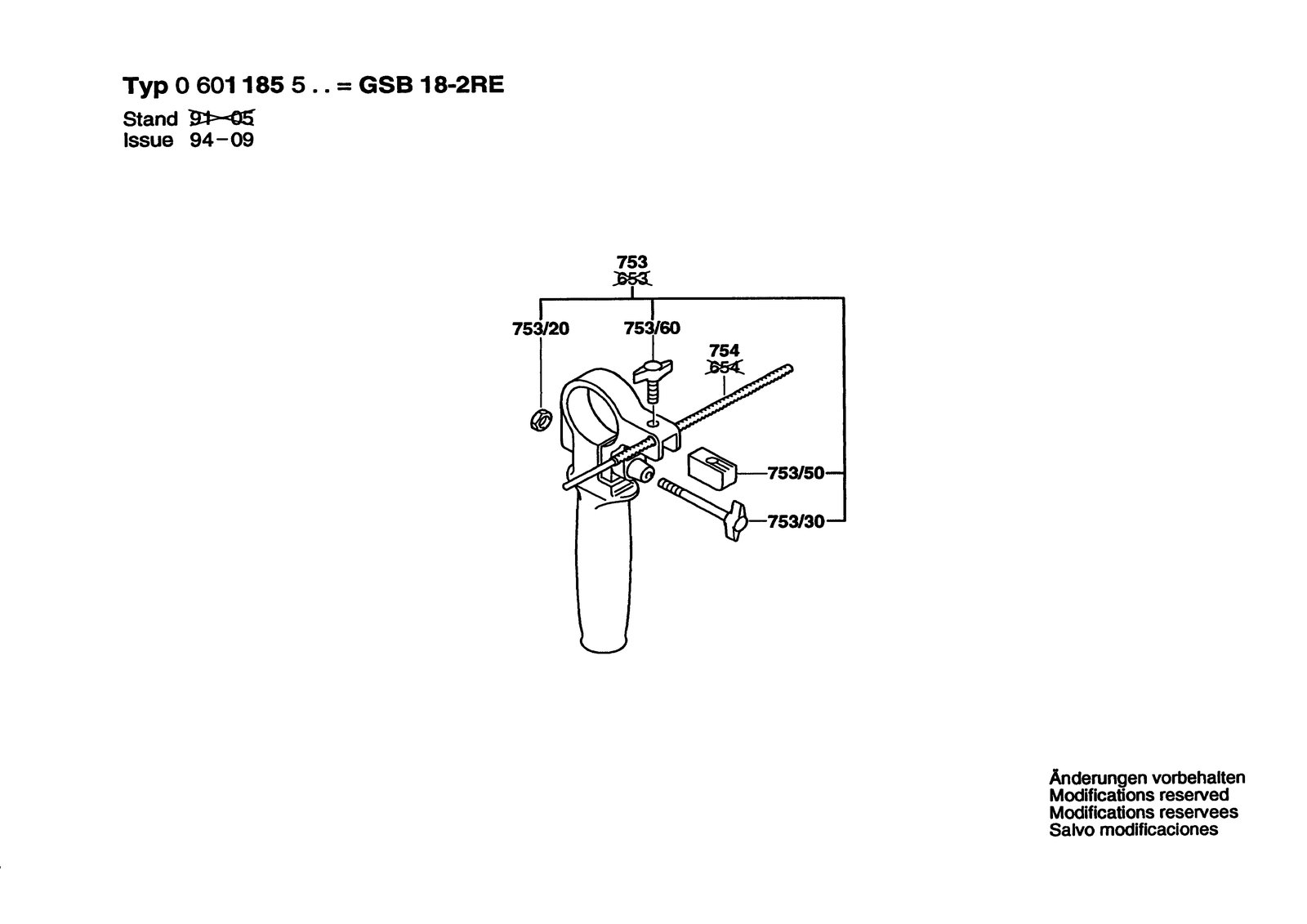

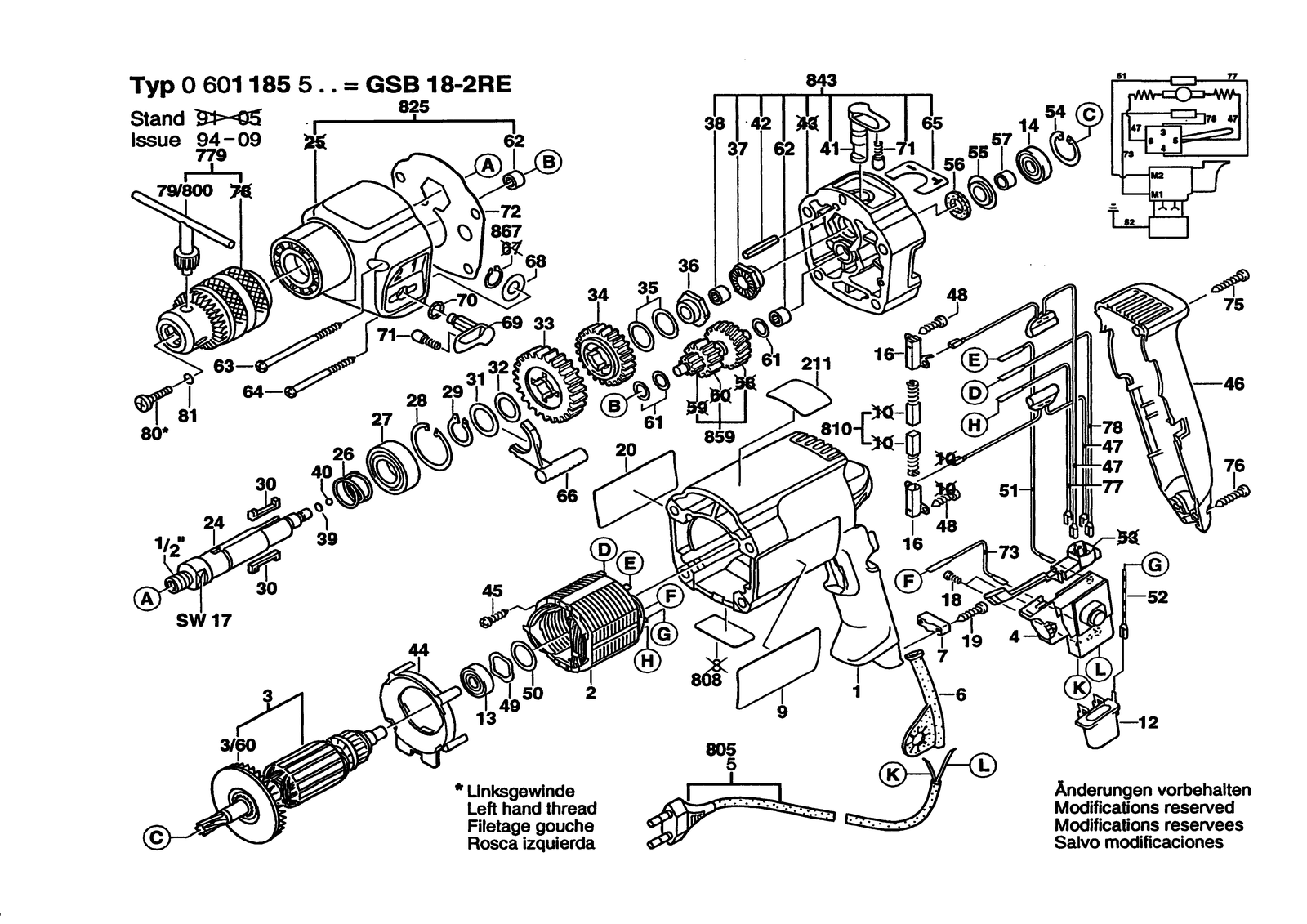

Bosch GSB 18-2 RE parts diagram, sheet 1Bosch GSB 18-2 RE parts diagram, sheet 2
No.Part numberPart name
12605104309Motor Housing Blue
12605104322Motor Housing Blue
122607329114Suppression Filter
131900905018Ball Bearing 7X22X7
142600905039Groove ball bearing 9X24X7
162604337003Brush Holder
182603410001Socket head cap screw M3X6,5-4.8
192603490022Screw 4X16
21604220254Field 220-240V
22604220482Field 100-115V
22604220907Field 115V
202601118171Sticker Shadow Side
202601118697Reference Plate Shadow Side
2111601110449Nameplate Caution
242606135032Drilling Spindle 1/2",SW 17
262604616002Compression Spring
271900905163Groove ball bearing 17X35X10
282916660014Spring retaining ring DIN 472 35X1,5 MM
292916650008Spring retaining ring DIN 471 17X1 MM
32604010739Armature 230-240V
32604010792Armature 100V
32604010793Armature 110-115V
3/602606610029Fan
302602300028Flat Key
312600101671Retaining Washer
322600101515Shim 1,0 MM
332606317045Cylindrical Gear Z=48
342606317037Cylindrical Gear Z=36
352600101616Shim 0,5 MM
352600101617Shim 0,3 MM
362600190052Catch Disk
372600190057Catch Disk
382600917003Needle-Roller Bearing Ø8X8 MM
392600000012Shim washer 0,2 MM
392600000014Shim washer 0,5 MM
42607200189Switch
42607200209Switch
42607200210Switch
401903230010Ball DIN 5401-5,5MM-III-ST
412602026017Rotary Knob
422917780105Slotted Spring Pin 4X30 MM DIN 7346
442601328033Cover Disc
452603435086Tapping Screw
462605132049Housing Cover Blue
472604448102Connecting Cable L=100MM
472604449047Brush Holder
472604465097Suppression Filter White L=126 MM
482603490017Torx Oval-Head Screw 3X10
492600150004Shim
51604460432Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F
52604420032Power supply cord GB 2,65M 2 X 1,0MM H05 Vv-F
52604460153Power supply cord J 2,5M 2 X 0,75MM Pvc
52604460157Power supply cord AUS 2,6M 2 X 0,75MM Pvc
52604460249Power supply cord SAM 2,7M 2 X 0,82MM SJ 18/2
52604460283Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F
53604460069Power supply cord GB 110V 2,65M 2 X 1,0MM H05 Vv-F
502600101027Shim washer 0,3 MM
502600101667Shim washer 0,5 MM
512604448005Cable White L=130 MM
522604448097Earth Conductor
542916660008Spring retaining ring DIN 472-24X1,2 MM
552600500002Cupped Washer
562600108077Felt Washer
572600400008Receptacle
62600707059Grommet Ø6,9 MM
62600707060Grommet Ø11,6-Ø12,5X84 MM
62600707061Grommet Ø8,8 MM
612600100607Shim 0,3 MM
622600914010Needle-Roller Bearing Ø6 MM
632603435070Headless Screw
642603435071Headless Screw 65 MM
652601110076Sticker Drill/impact Drill
662602033006Adjusting Slide
682600100618Shim washer
692602026038Rotary Knob Black
71611035005Cable Clip
72601035001Cable Clip
702607010226Parts Set
712600590006Ratchet Cap
722601073012Gasket
732604448146Connecting Cable White L=110 MM
752603490024Torx Oval-Head Screw 4X25
7531619PB4323Auxiliary Handle
753/202915011007Hex Nut DIN 934-M6-8-A
753/301613480007Wing Screw M6X(15)55
753/502608040014Clamping Plate M6
753/601613480008Wing Screw M6X20 MM
7541613001005Depth-Gauge SW 6X210 MM
772604448100Connecting Cable White L=68 MM
7791608571069Chuck Ø1,5-13 Mm, 1/2"
782604448074Connecting Cable Black L=98 MM
802603421208Countersunk-Head Screw Lefthand Threads M6X38/12(Ø11)
8051607000385Power supply cord EU 2,6M 2 X 1,0 MM
812604601004Retaining ring
8102604321905Carbon-Brush Set
8252605806990Gear Housing Blue
8432605700936Intermediate Flange
8592606100903Toothed Shaft Z= 10/22/29
8672916080007Locking washer DIN 6799-4-FST
92601118172Sticker Sunny Side
