Bosch GSB 18-2 RE
Bosch GSB 18-2 RE percussion drill: exploded parts diagram, 2 sheets, 87 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

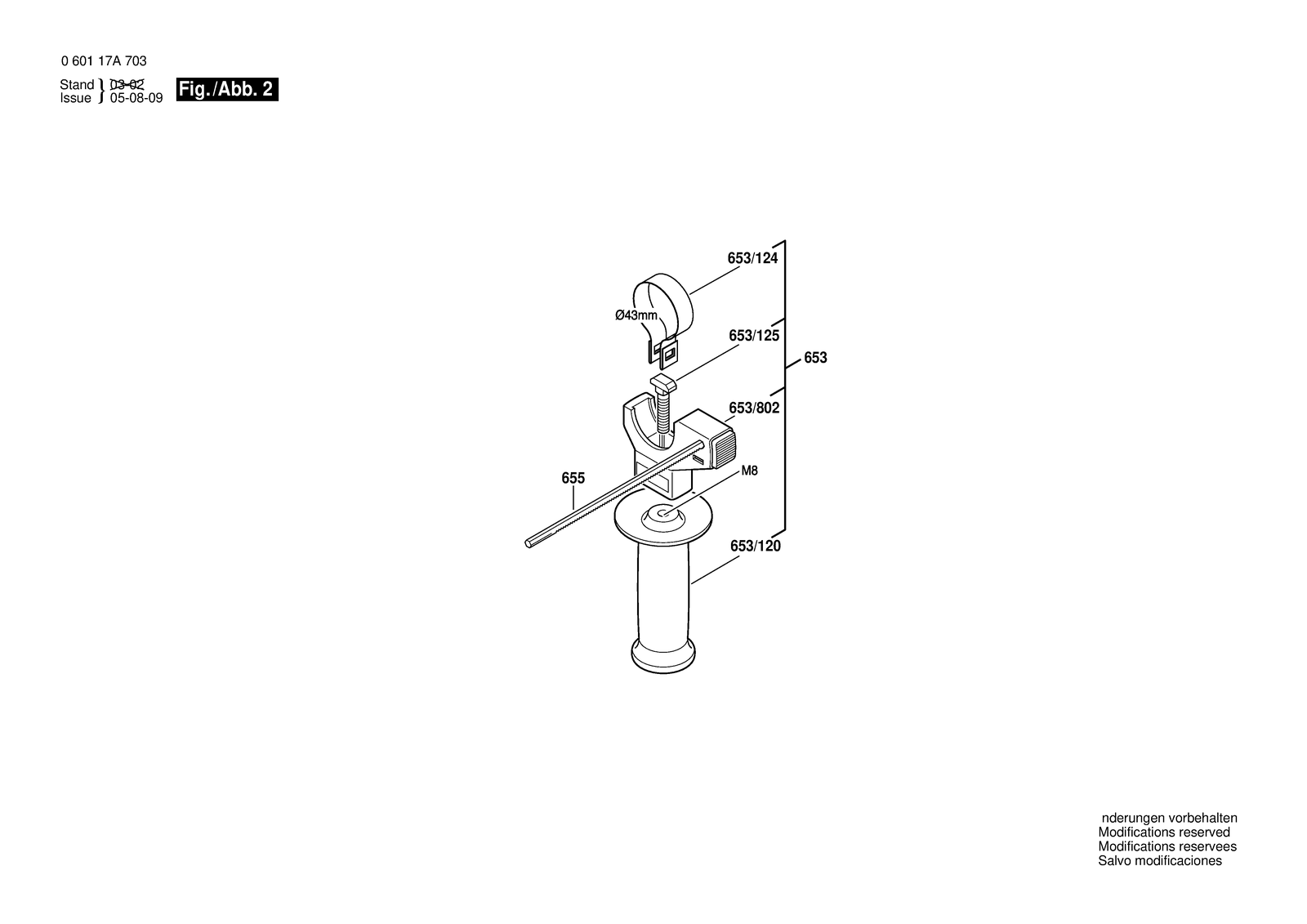

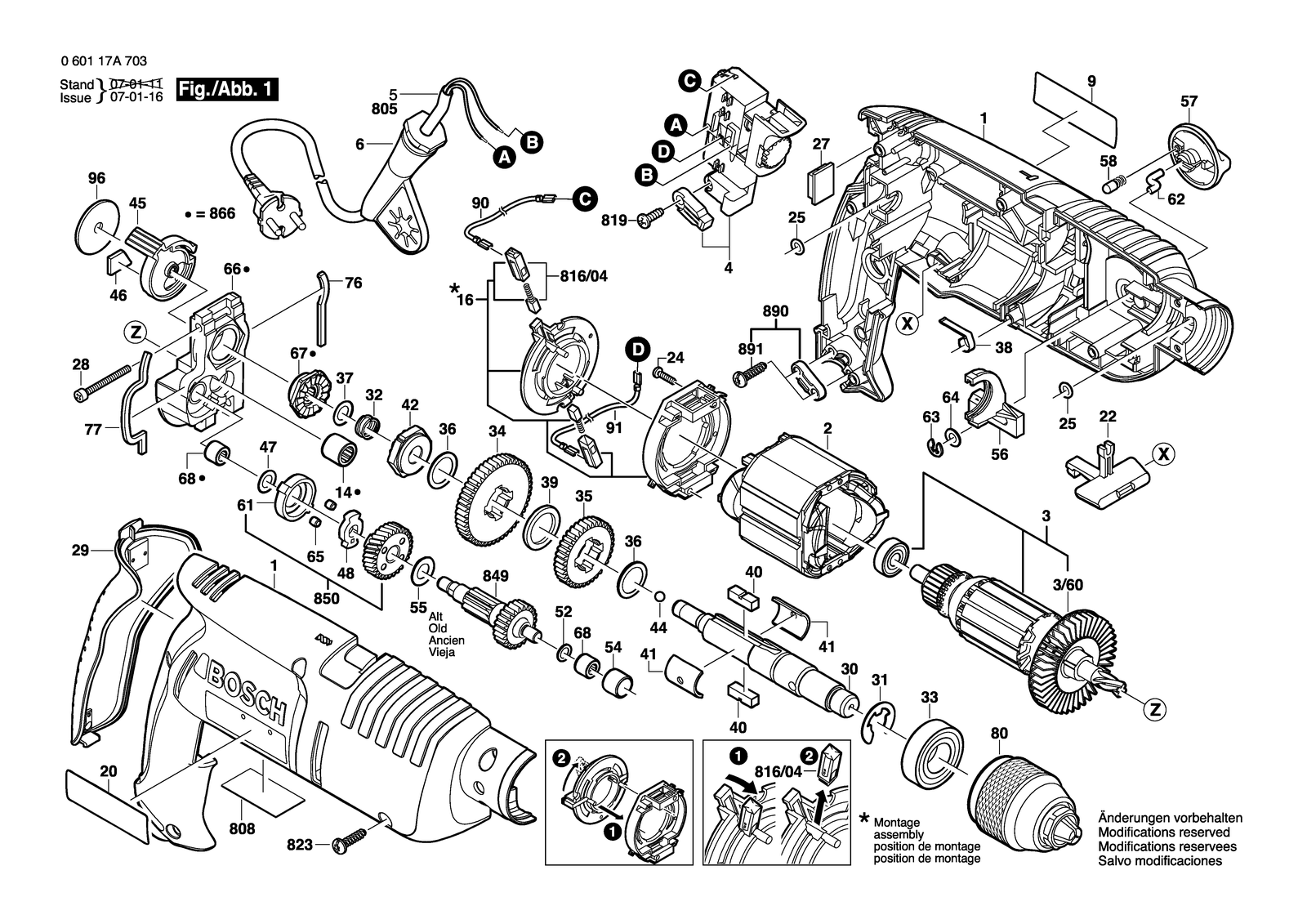

All parts of Bosch GSB 18-2 RE: 87 positions on 2 sheets
Bosch GSB 18-2 RE parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104760 | Housing Section |
| 14 | 2600914019 | Needle bearing |
| 16 | 2604337061 | Brush Plate |
| 2 | 2604220660 | Field 100-120V |
| 2 | 2604220689 | Field 230-240V |
| 20 | 2601116360 | Reference Plate |
| 22 | 2602098008 | Change-Over Switch Red |
| 24 | 2910611002 | Tapping Screw DIN 7981-ST2,2X9,5-C-H |
| 25 | 1900210000 | O-Ring 5,0X1,5 MM |
| 27 | 2603239024 | Damping Element |
| 28 | 2603429006 | Oval-Head Screw |
| 29 | 2608040177 | Handle Cover Black |
| 3 | 2604011166 | Armature 230-240V |
| 3 | 2604011290 | Armature 110V |
| 3/60 | 2606610029 | Fan |
| 30 | 2606135116 | Drilling Spindle |
| 31 | 2600118001 | Locking washer 0,6 MM |
| 31 | 2600118002 | Locking washer 0,8 MM |
| 31 | 2600118006 | Locking washer 0,3 MM |
| 32 | 2604616006 | Compression Spring |
| 33 | 1900905163 | Groove ball bearing 17X35X10 |
| 34 | 2606317082 | Cylindrical Gear |
| 35 | 2606317083 | Cylindrical Gear |
| 36 | 2600100695 | Shim 0,5 MM |
| 37 | 2600101047 | Shim 0,3 MM |
| 38 | 2601329072 | Contact Strap |
| 39 | 2600101084 | Retaining Washer |
| 4 | 2607200555 | Switch |
| 4 | 2607200556 | Switch |
| 4 | 2607200601 | Switch |
| 40 | 2602300034 | Flat Key |
| 41 | 2601098031 | Guiding Plate |
| 42 | 2600190070 | Catch Disk |
| 44 | 1903230010 | Ball DIN 5401-5,5MM-III-ST |
| 45 | 2601990041 | Indexing Disk |
| 46 | 2601074003 | Pressure Plate |
| 47 | 1600100632 | Shim Thick 0,2 MM |
| 48 | 2602210043 | Eccentric |
| 5 | 1604460401 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460199 | Power supply cord AUS 240V 4,15M 2 X 1,0MM Pvc |
| 5 | 2604460204 | Power supply cord GB 110V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460244 | Power supply cord GB 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460287 | Power supply cord I/br 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 52 | 2600100607 | Shim 0,3 MM |
| 54 | 2600400027 | Bearing Sleeve |
| 55 | 2600100637 | Shim 0,5 MM |
| 56 | 2601990009 | Fork Lever |
| 57 | 2602026119 | Rotary Knob |
| 58 | 2600590006 | Ratchet Cap |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703019 | Grommet Ø8,7-Ø9,6X76 MM |
| 61 | 2600202008 | Retaining snap ring |
| 62 | 2601335001 | Driver Pin |
| 63 | 2916080907 | Locking washer 4 DIN 6799 |
| 64 | 2600100618 | Shim washer |
| 65 | 2609007376 | Roller Body |
| 653 | 2602025118 | Auxiliary Handle Ø43 MM |
| 653/120 | 1612025019 | Auxiliary Handle M8 |
| 653/124 | 1611316006 | Clamping Band Ø43 MM |
| 653/125 | 1613490002 | T-Head Bolt M8X40 MM |
| 653/802 | 2608040176 | Support clamp Ø43 MM |
| 655 | 1613001009 | Depth-Gauge SW 6X210 MM |
| 66 | 2605807085 | Bearing Bracket |
| 67 | 2600190071 | Catch Disk |
| 68 | 2600914010 | Needle-Roller Bearing Ø6 MM |
| 76 | 2601005011 | Felt Strip |
| 77 | 2601005021 | Felt Strip |
| 80 | 2608572142 | Keyless Chuck |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 808 | 2601116380 | Marking Plate |
| 808 | 2601116381 | Marking Plate |
| 808 | 2601116382 | Marking Plate |
| 808 | 2601116383 | Marking Plate |
| 808 | 2601116384 | Marking Plate |
| 808 | 2601117737 | Marking Plate |
| 816/04 | 2609160125 | Carbon-Brush Set |
| 819 | 2910611006 | Tapping Screw DIN 7981-ST2,9X13-C-H |
| 823 | 2910611020 | Tapping Screw DIN 7981-ST3,9X19-C-H |
| 849 | 2606309937 | Toothed Shaft |
| 850 | 2606440900 | Carrier |
| 866 | 2605807934 | Bearing Bracket |
| 890 | 2607001305 | Fastening parts kit |
| 891 | 2603410046 | Cross Recessed-Head Screw M3X5 |
| 9 | 2601116359 | Manufacturer's nameplate |
| 90 | 2604448228 | Pvc-Insulated Cable Blue L=120 MM |
| 91 | 1614431025 | Pvc-Insulated Cable L=95 MM |
| 96 | 2600100066 | Plain Washer |
