Bosch GSB 18-2-LI Plus

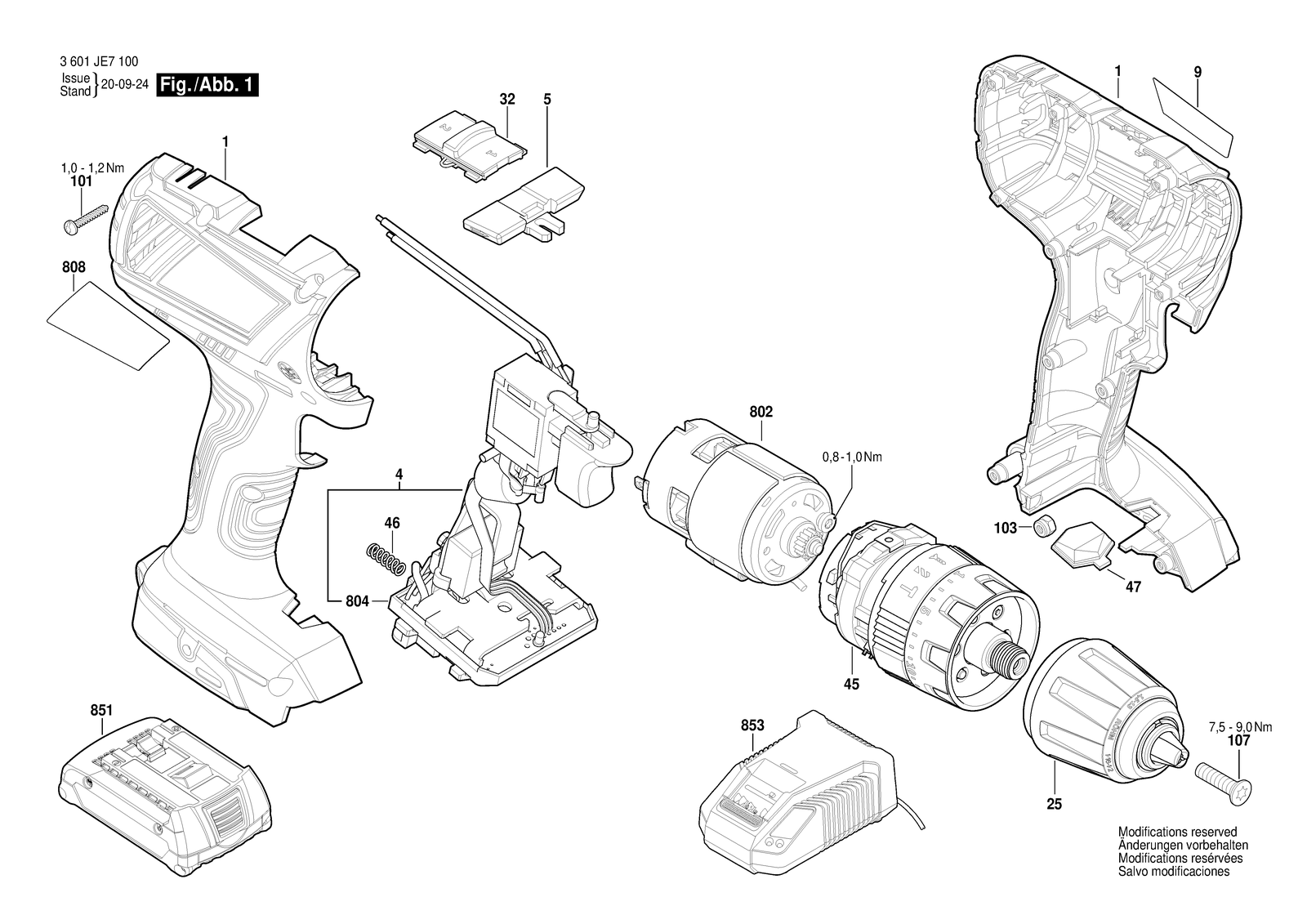

Bosch GSB 18-2-LI Plus cordl perc screwdr: exploded parts diagram, 1 sheet, 25 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 18-2-LI Plus: 25 positions on 1 sheet
Bosch GSB 18-2-LI Plus parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609101483 | Housing |
| 101 | 2609110353 | Torx Oval-Head Screw |
| 103 | 2609110835 | Nut |
| 107 | 2603421229 | Countersunk-Head Screw Lefthand Threads M6X23 |
| 25 | 2609111940 | Keyless Chuck |
| 25 | 2609111944 | Keyless Chuck |
| 32 | 2609199812 | Switchover Unit |
| 4 | 160723359P | Electronics Module |
| 45 | 1600A00S4H | Gear Box |
| 46 | 1609280477 | Compression Spring |
| 47 | 2609101486 | Lens |
| 5 | 2609101484 | Adjusting lever |
| 802 | 2609199841 | DC motor |
| 804 | 1609280478 | Contact retainer |
| 808 | 1600A00Z0S | Nameplate |
| 808 | 160111A5K3 | Nameplate |
| 851 | 1607A350JR | Battery Pack GBA 18V 1.5AH |
| 851 | 1607A350M0 | Battery Pack GBA 18V 4.0AH |
| 851 | 1607A350MA | Battery Pack GBA 18V 2.0AH |
| 853 | 2607225321 | Charger EU 230/14,4-18V, 30 40 S |
| 853 | 2607225425 | Fast Charger GB 230/10,8-18V, 1H |
| 853 | 2607225923 | Charger GB 230/10,8-18V, 30 42 S |
| 853 | 2607226281 | Fast Charger EU GAL 18V-20 220V-240V 12V-18V 2A |
| 9 | 160111C2F7 | Manufacturer's nameplate |
| 9 | 2609136298 | Manufacturer's nameplate |
