Bosch GSB 18-2

Bosch GSB 18-2 percussion drill: exploded parts diagram, 2 sheets, 89 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 18-2: 89 positions on 2 sheets

Bosch GSB 18-2 parts list (2 sheets)

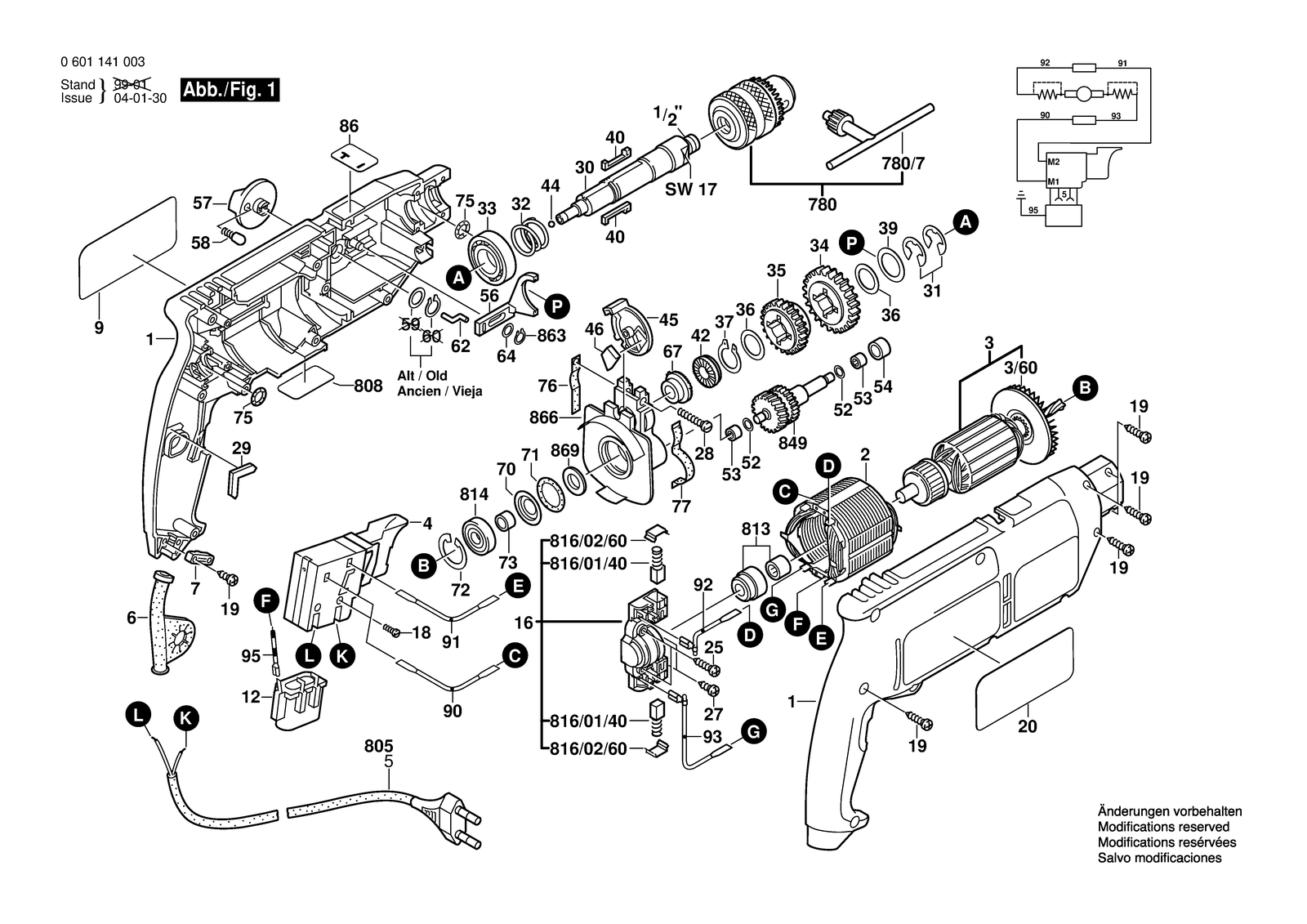

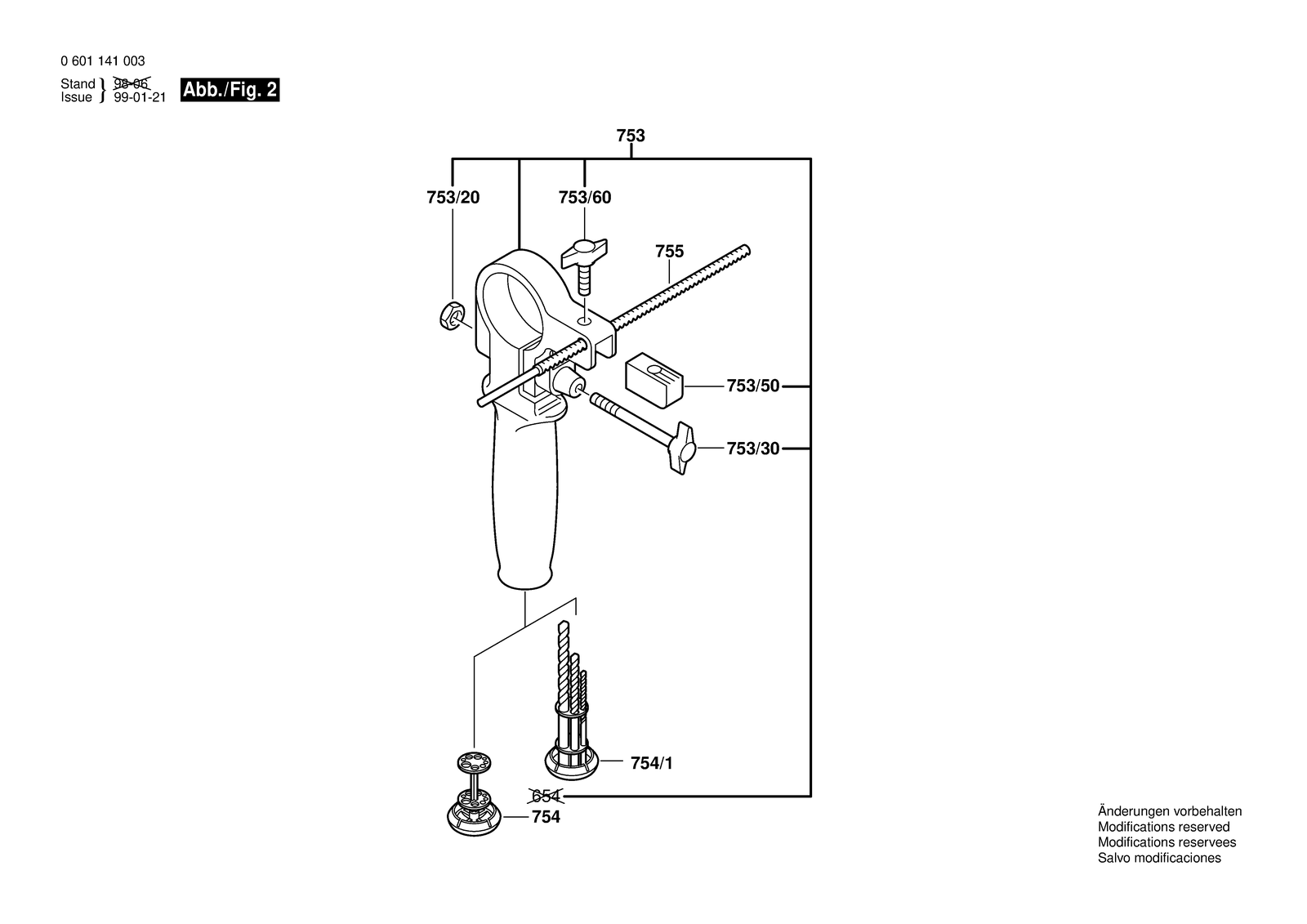

Bosch GSB 18-2 parts diagram, sheet 1Bosch GSB 18-2 parts diagram, sheet 2
No.Part numberPart name
12605104437Housing Section Blue
122607329114Suppression Filter
162604337122Brush Plate
162605807060Brush Plate
162605807122Brush Plate
162609992626Brush Plate
162609992627Brush Plate
182603410001Socket head cap screw M3X6,5-4.8
192603490022Screw 4X16
22604220429Field 220-230V
22604220439Field 110-115V
202601118439Reference Plate Shadow Side
252603490019Torx Oval-Head Screw 3X30
272603490018Torx Oval-Head Screw 3X18
282603429005Socket head cap screw
292601022000Damping Plate
32604010877Armature 220-230V
32604010878Armature 110-115V
3/602606610029Fan
302606135044Drilling Spindle Int. Lefth. Thread 1/2", SW 17
312600118001Locking washer 0,6 MM
312600118002Locking washer 0,8 MM
312600118006Locking washer 0,3 MM
322604616002Compression Spring
331900905163Groove ball bearing 17X35X10
342606317045Cylindrical Gear Z=48
352606317037Cylindrical Gear Z=36
362600101515Shim 1,0 MM
372916650006Retaining clip DIN 471-15X1-FST
392600101671Retaining Washer
42607200260Switch
402602300028Flat Key
422600190052Catch Disk
441903230010Ball DIN 5401-5,5MM-III-ST
452601990001Indexing Disk Black
462601074003Pressure Plate
52604460121Power supply cord Usa/cdn 2,15M 2 X 082MM SJ 18/2
52604460140Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F
52604460208Power supply cord GB 110V 2,65M 2 X 1,0MM H05VV-F
52604460249Power supply cord SAM 2,7M 2 X 0,82MM SJ 18/2
52604460283Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F
522600100607Shim 0,3 MM
532600914010Needle-Roller Bearing Ø6 MM
542600400027Bearing Sleeve
562602033005Control Fork
572602026091Rotary Head
582600590006Ratchet Cap
62600707059Grommet Ø6,9 MM
62600707060Grommet Ø11,6-Ø12,5X84 MM
622601335001Driver Pin
642600100618Shim washer
672600190057Catch Disk
72601035001Cable Clip
702600500014Cupped Washer
711900210117O-Ring 18X3 MM
722916660008Spring retaining ring DIN 472-24X1,2 MM
732600400008Receptacle
751900210000O-Ring 5,0X1,5 MM
7531619PB4323Auxiliary Handle
753/202915011007Hex Nut DIN 934-M6-8-A
753/301613480007Wing Screw M6X(15)55
753/502608040014Clamping Plate M6
753/601613480008Wing Screw M6X20 MM
7542607000122Drill Holder
7552603001019Depth-Gauge
762601005011Felt Strip
772601005016Felt Strip
7801608571044Key Chuck
7801608571080Key Chuck Ø1,5-13 MM
780/72607950007Chuck Wrench SG2
8051607000385Power supply cord EU 2,6M 2 X 1,0 MM
808160111A3H3Nameplate
8132600917902Needle-Roller Bearing
8142600905039Groove ball bearing 9X24X7
816/01/402604321913Carbon-Brush Set
816/01/402604321916Carbon-Brush Set
816/02/602601322013Ratchet Cap
816/02/602601329051Ratchet Cap
8492606309913Toothed Shaft Z= 10/29/22
862601110580Sticker
8632916080007Locking washer DIN 6799-4-FST
8662605807928Bearing Bracket
8692600108000Felt Washer
92601118438Manufacturer's nameplate Sunny Side
902604448136Connecting Cable White L=133 MM
912604448129Connecting Cable Black L=83 MM
922604448123Connecting Cable White L=73 MM
932604448130Connecting Cable White L=88 MM
952604448170Earth Conductor
