Bosch GSB 162-2 RE

Bosch GSB 162-2 RE percussion drill: exploded parts diagram, 2 sheets, 162 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 162-2 RE: 162 positions on 2 sheets

Bosch GSB 162-2 RE parts list (2 sheets)

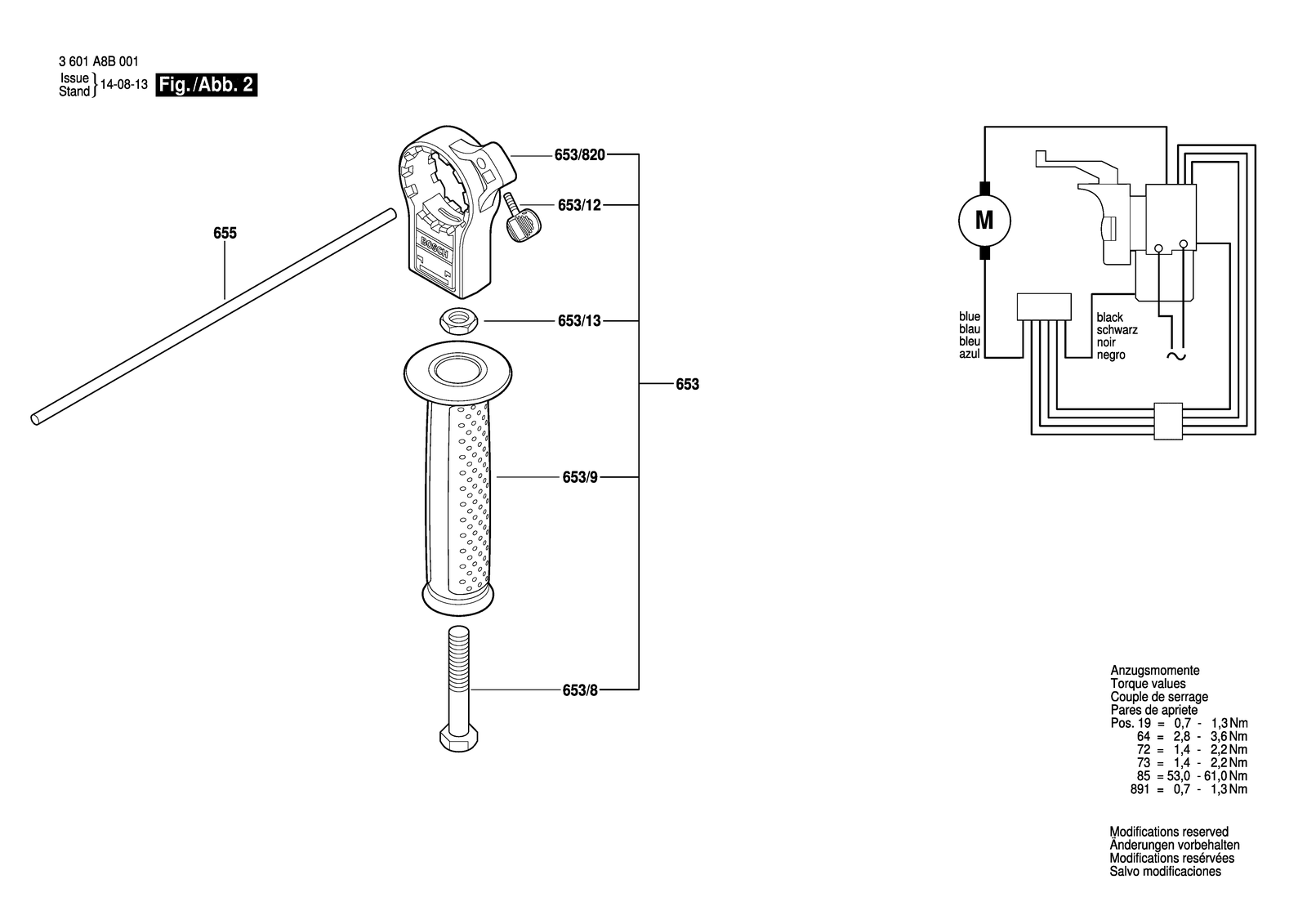

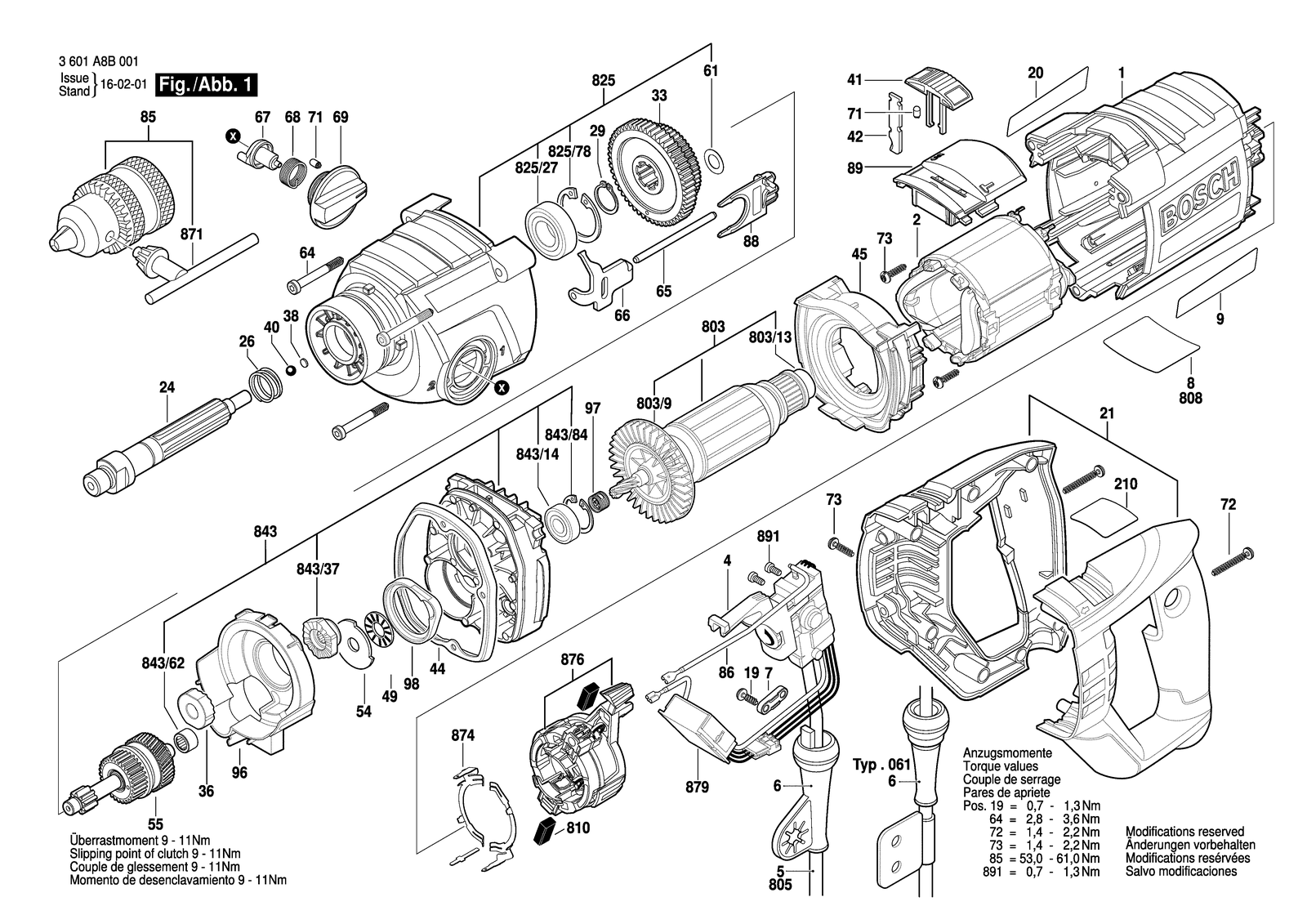

Bosch GSB 162-2 RE parts diagram, sheet 1Bosch GSB 162-2 RE parts diagram, sheet 2
No.Part numberPart name
12605105138Motor Housing
12605105138Motor Housing
192603490021Torx Oval-Head Screw 4X12
192603490021Torx Oval-Head Screw 4X12
21619P08137Field 110V
21619P08347Field 230-240V
21619P08137Field 110V
21619P08347Field 230-240V
202601115617Reference Plate
202601115617Reference Plate
212602025178Handle
212602025178Handle
2102601112190Reference Plate
2102601112190Reference Plate
242606135143Drilling Spindle
242606135143Drilling Spindle
262604616002Compression Spring
292916650008Spring retaining ring DIN 471 17X1 MM
292916650008Spring retaining ring DIN 471 17X1 MM
332606317114Double Gear Wheel
332606317114Double Gear Wheel
362600190105Catch Disk
362600190105Catch Disk
382600000021Shim washer 1,0 MM
382600000045Shim washer
382600000021Shim washer 1,0 MM
382600000045Shim washer
42607200675Switch
42607200675Switch
401903230010Ball DIN 5401-5,5MM-III-ST
401903230010Ball DIN 5401-5,5MM-III-ST
412602319030Slide Switch
412602319030Slide Switch
422601074009Pressure Plate
422601074009Pressure Plate
442601015104Seal
442601015104Seal
452600148015Air-Deflector Ring
452600148015Air-Deflector Ring
493608872471Thrust Needle Bearing
493608872471Thrust Needle Bearing
51604460204Power supply cord GB 110V 4,15M 2 X 1,5MM H07 Rn-F
51604460401Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F
52604460199Power supply cord AUS 240V 4,15M 2 X 1,0MM Pvc
52604460244Power supply cord GB 230V 4,15M 2 X 1,0MM H05 Rn-F
51604460204Power supply cord GB 110V 4,15M 2 X 1,5MM H07 Rn-F
51604460401Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F
52604460199Power supply cord AUS 240V 4,15M 2 X 1,0MM Pvc
52604460244Power supply cord GB 230V 4,15M 2 X 1,0MM H05 Rn-F
542600114087Friction Washer
542600114087Friction Washer
551600A004HTTransmission
551600A004HTTransmission
62600707072Grommet
62600707074Grommet
61600703035Grommet Ø8,7-Ø9,6X66 MM
62600707072Grommet
62600707074Grommet
612600100712Shim
612600100712Shim
642603435085Headless Screw
642603435085Headless Screw
652603105132Straight Pin
652603105132Straight Pin
6532602025205Auxiliary Handle
6532602025205Auxiliary Handle
653/122603481021Wing Screw
653/122603481021Wing Screw
653/132915051140Hex Nut
653/132915051140Hex Nut
653/82911061971Hex Screw
653/82911061971Hex Screw
653/8202602025905Support clamp
653/8202602025905Support clamp
653/92602025189Handle
653/92602025189Handle
6552600460045Depth-Gauge
6552600460045Depth-Gauge
662601099226Adjusting Slide
662601099226Adjusting Slide
672602033021Link Guide
672602033021Link Guide
682604651026Coiled Spring
682604651026Coiled Spring
692602026172Rotary Knob
692602026172Rotary Knob
72601035004Cable Clip
72601035004Cable Clip
712600590006Ratchet Cap
712600590006Ratchet Cap
722603490025Torx Oval-Head Screw 4X30
722603490025Torx Oval-Head Screw 4X30
732603490022Screw 4X16
732603490022Screw 4X16
8031600A004L1Armature assembly 220-240V
8031600A004L2Armature assembly 110V
8031600A004L1Armature assembly 220-240V
8031600A004L2Armature assembly 110V
803/132600905086Groove ball bearing 7X19X6
803/132600905086Groove ball bearing 7X19X6
803/92606610137Fan
803/92606610137Fan
8051607000385Power supply cord EU 2,6M 2 X 1,0 MM
8051607000386Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F
8051607000385Power supply cord EU 2,6M 2 X 1,0 MM
8051607000386Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F
808160111A1E7Nameplate
808160111A1E8Nameplate
808160111A1EANameplate
808160111A1EBNameplate
808160111A1ECNameplate
808160111A3WCNameplate
808160111A1PHNameplate
808160111A1PKNameplate
808160111A32TNameplate
808160111A32WNameplate
808160111A32XNameplate
808160111A32YNameplate
8102604321947Carbon-Brush Set
8102604321947Carbon-Brush Set
8252605806879Gear Housing
8252605806879Gear Housing
825/271900905163Groove ball bearing 17X35X10
825/271900905163Groove ball bearing 17X35X10
825/782916660014Spring retaining ring DIN 472 35X1,5 MM
825/782916660014Spring retaining ring DIN 472 35X1,5 MM
8432605807950Bearing Bracket
8432605807950Bearing Bracket
843/142600905095Ball Bearing 9X24X7
843/142600905095Ball Bearing 9X24X7
843/372600190121Catch Disk
843/372600190121Catch Disk
843/622600917023Needle bearing
843/622600917023Needle bearing
843/842916660008Spring retaining ring DIN 472-24X1,2 MM
843/842916660008Spring retaining ring DIN 472-24X1,2 MM
851608571083Key Chuck Ø3-16MM,5/8"
851608571083Key Chuck Ø3-16MM,5/8"
862604448328Connecting Cable
862604448328Connecting Cable
8712607950007Chuck Wrench SG2
8712607950007Chuck Wrench SG2
8742601324072Switch Contact
8742601324072Switch Contact
8762604337912Brush Plate
8762604337912Brush Plate
8792607230906Rpm Actuator
8792607230906Rpm Actuator
882601328086Holding Plate
882601328086Holding Plate
892605510276Bulb Shield
892605510276Bulb Shield
8912603429010Cross Recessed-Head Screw
8912603429010Cross Recessed-Head Screw
92601111402Manufacturer's nameplate GSB 162-2 Re
92601111402Manufacturer's nameplate GSB 162-2 Re
961600A00L17Sealing Cover
961600A00L17Sealing Cover
972605808138Seal Ring
972605808138Seal Ring
982601015114Seal
982601015114Seal
