Bosch GSB 162-2 RE

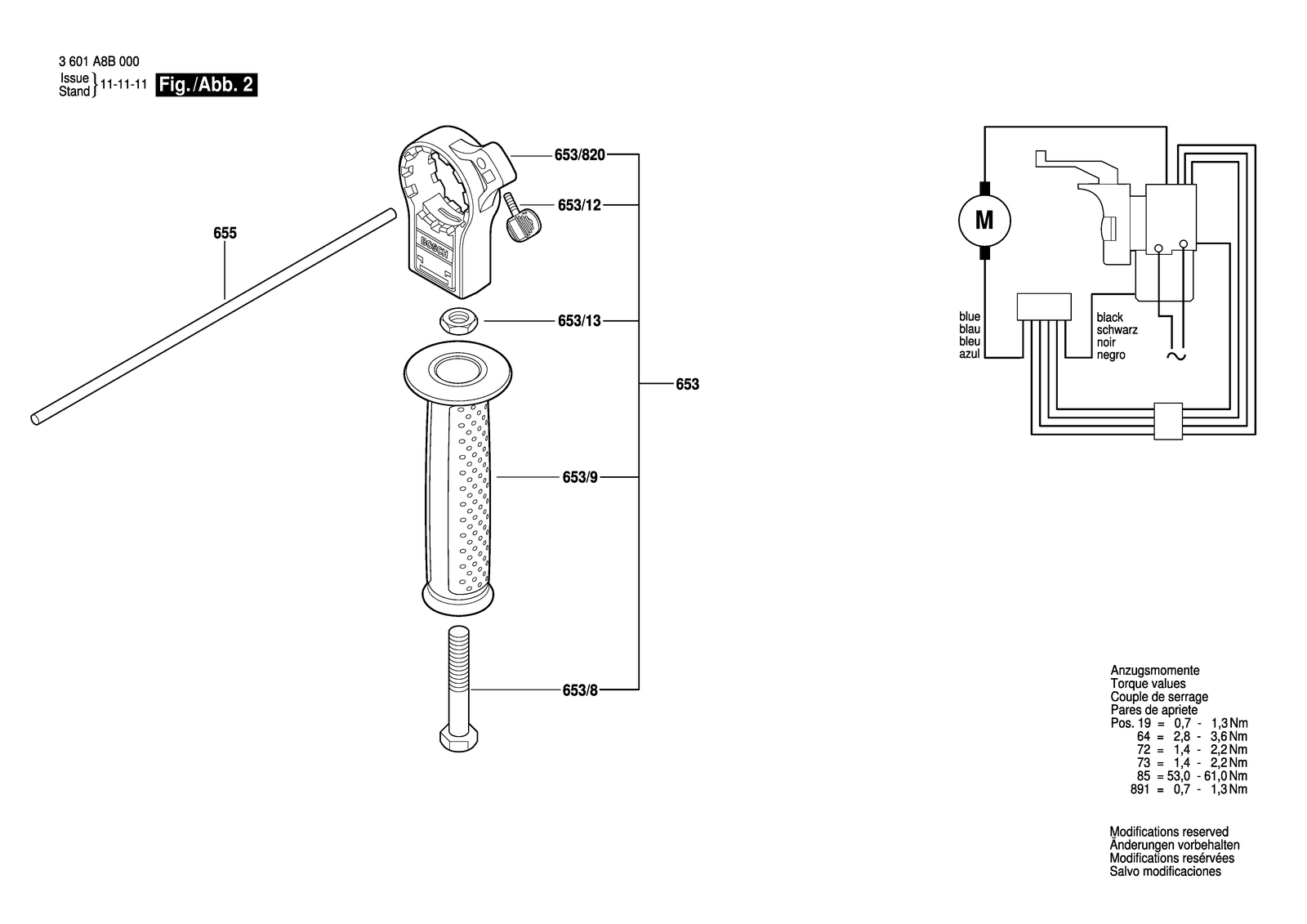

Bosch GSB 162-2 RE percussion drill: exploded parts diagram, 2 sheets, 81 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 162-2 RE: 81 positions on 2 sheets
Bosch GSB 162-2 RE parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605105138 | Motor Housing |
| 19 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 2 | 1604220377 | Field 100-120V |
| 2 | 1619P08345 | Field 230V |
| 20 | 2601115617 | Reference Plate |
| 21 | 2602025178 | Handle |
| 210 | 2601112190 | Reference Plate |
| 24 | 2606135143 | Drilling Spindle |
| 26 | 2604616002 | Compression Spring |
| 29 | 2916650008 | Spring retaining ring DIN 471 17X1 MM |
| 3 | 1600A004L1 | Armature assembly 220-240V |
| 3 | 2604011424 | Armature 110-120V |
| 3/13 | 2600905032 | Ball Bearing 7X19X6 |
| 3/9 | 2606610137 | Fan |
| 33 | 2606317097 | Cylindrical Gear |
| 36 | 2600190105 | Catch Disk |
| 38 | 2600000021 | Shim washer 1,0 MM |
| 38 | 2600000045 | Shim washer |
| 38 | 2600000046 | Shim washer |
| 4 | 2607200675 | Switch |
| 40 | 1903230010 | Ball DIN 5401-5,5MM-III-ST |
| 41 | 2602319030 | Slide Switch |
| 42 | 2601074009 | Pressure Plate |
| 44 | 2601015104 | Seal |
| 45 | 2600148015 | Air-Deflector Ring |
| 5 | 1604460401 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460199 | Power supply cord AUS 240V 4,15M 2 X 1,0MM Pvc |
| 5 | 2604460204 | Power supply cord GB 110V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460244 | Power supply cord GB 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460287 | Power supply cord I/br 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 59 | 2606308044 | Transmission |
| 6 | 2600707072 | Grommet |
| 6 | 2600707074 | Grommet |
| 61 | 2600100712 | Shim |
| 64 | 2603435085 | Headless Screw |
| 65 | 2603105132 | Straight Pin |
| 653 | 2602025188 | Auxiliary Handle |
| 653/12 | 2603481021 | Wing Screw |
| 653/13 | 2915051140 | Hex Nut |
| 653/8 | 2911061971 | Hex Screw |
| 653/820 | 2602025905 | Support clamp |
| 653/9 | 2602025189 | Handle |
| 655 | 2600460045 | Depth-Gauge |
| 66 | 2601099226 | Adjusting Slide |
| 67 | 2602033021 | Link Guide |
| 68 | 2604651026 | Coiled Spring |
| 69 | 2602026172 | Rotary Knob |
| 7 | 2601035004 | Cable Clip |
| 71 | 2600590006 | Ratchet Cap |
| 72 | 2603490025 | Torx Oval-Head Screw 4X30 |
| 73 | 2603490022 | Screw 4X16 |
| 8 | 2601111509 | Nameplate |
| 8 | 2601111868 | Nameplate |
| 8 | 2601115612 | Nameplate |
| 8 | 2601115613 | Nameplate |
| 8 | 2601115669 | Nameplate |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 810 | 2604321947 | Carbon-Brush Set |
| 825 | 2605806879 | Gear Housing |
| 825/27 | 1900905163 | Groove ball bearing 17X35X10 |
| 825/78 | 2916660014 | Spring retaining ring DIN 472 35X1,5 MM |
| 843 | 2605807945 | Bearing Bracket |
| 843/14 | 2600905095 | Ball Bearing 9X24X7 |
| 843/37 | 2600190121 | Catch Disk |
| 843/60 | 2600000042 | Shim washer |
| 843/62 | 2600917023 | Needle bearing |
| 843/84 | 2916660008 | Spring retaining ring DIN 472-24X1,2 MM |
| 85 | 1608571083 | Key Chuck Ø3-16MM,5/8" |
| 86 | 2604448328 | Connecting Cable |
| 871 | 2607950007 | Chuck Wrench SG2 |
| 874 | 2601324072 | Switch Contact |
| 876 | 2604337912 | Brush Plate |
| 879 | 2607230906 | Rpm Actuator |
| 879 | 2607230907 | Rpm Actuator |
| 88 | 2601328086 | Holding Plate |
| 89 | 2605510276 | Bulb Shield |
| 891 | 2603429010 | Cross Recessed-Head Screw |
| 9 | 2601111402 | Manufacturer's nameplate GSB 162-2 Re |
| 96 | 1600A00L17 | Sealing Cover |
| 97 | 2605808138 | Seal Ring |
| 98 | 2601015114 | Seal |
