Bosch GSB 1600 RE

Bosch GSB 1600 RE percussion drill: exploded parts diagram, 1 sheet, 49 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 1600 RE: 49 positions on 1 sheet

Bosch GSB 1600 RE parts list (1 sheet)

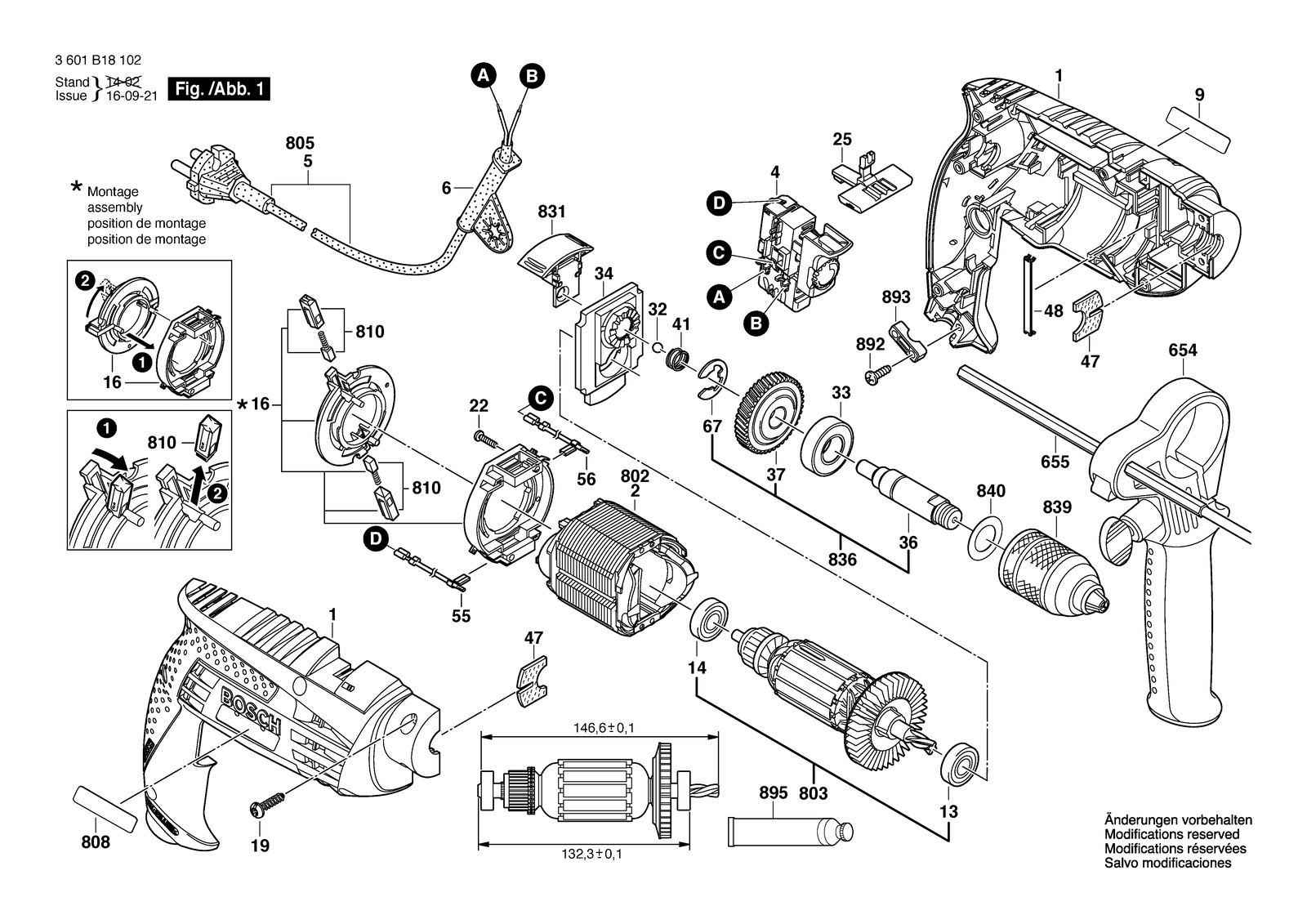

Bosch GSB 1600 RE parts diagram, sheet 1
No.Part numberPart name
12609100579Housing
132609110153Ball Bearing 8X22X7
142609110491Ball Bearing
162604337059Brush Plate
162604337061Brush Plate
192603490022Screw 4X16
222910611002Tapping Screw DIN 7981-ST2,2X9,5-C-H
252609100580Lever
321903230010Ball DIN 5401-5,5MM-III-ST
331900905122Groove ball bearing 15X32X9
342609199115Bearing Bracket
362609110449Drilling Spindle
372606320092Conversion Gear
41607200266Switch
41607200270Switch Black
412604616006Compression Spring
472609170056Felt Strip
482609110627Spring Clip
51604460244Power supply cord GB 230V 4,15M 2 X 1,0MM H05RN-F
51604460401Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F
51607000386Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F
52604460204Power supply cord GB 110V 4,15M 2 X 1,0MM H05 Rn-F
552609120221Connecting Cable White
562609120222Connecting Cable Red
62600707059Grommet Ø6,9 MM
62600707060Grommet Ø11,6-Ø12,5X84 MM
6542602025094Auxiliary Handle
6552609005615Depth-Gauge
672609110481Spring retaining ring
8022604220647Field 230V
8022604220660Field 100-120V
8032609120234Armature 110-120V
8032609120235Armature 220-240V
808160111A3YSNameplate
808160111A44HNameplate
808160111A44KNameplate
808160111A44LNameplate
808160111A44NNameplate
8101607000CJ1Brush Holder
8102607014013Carbon-Brush Set
8312609160127Change-Over Switch
8362609160124Drilling Spindle
8392608572106Keyless Chuck Ø 1,5-13 Mm, 1/2"
8402600100105Plain Washer
8922603490022Screw 4X16
8931611035005Cable Clip
8932601035001Cable Clip
8953605430003Grease Tube Albida
9160111C1W8Manufacturer's nameplate
