Bosch GSB 1600 RE percussion drill: exploded parts diagram, 1 sheet, 47 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 1600 RE: 47 positions on 1 sheet

Bosch GSB 1600 RE parts list (1 sheet)

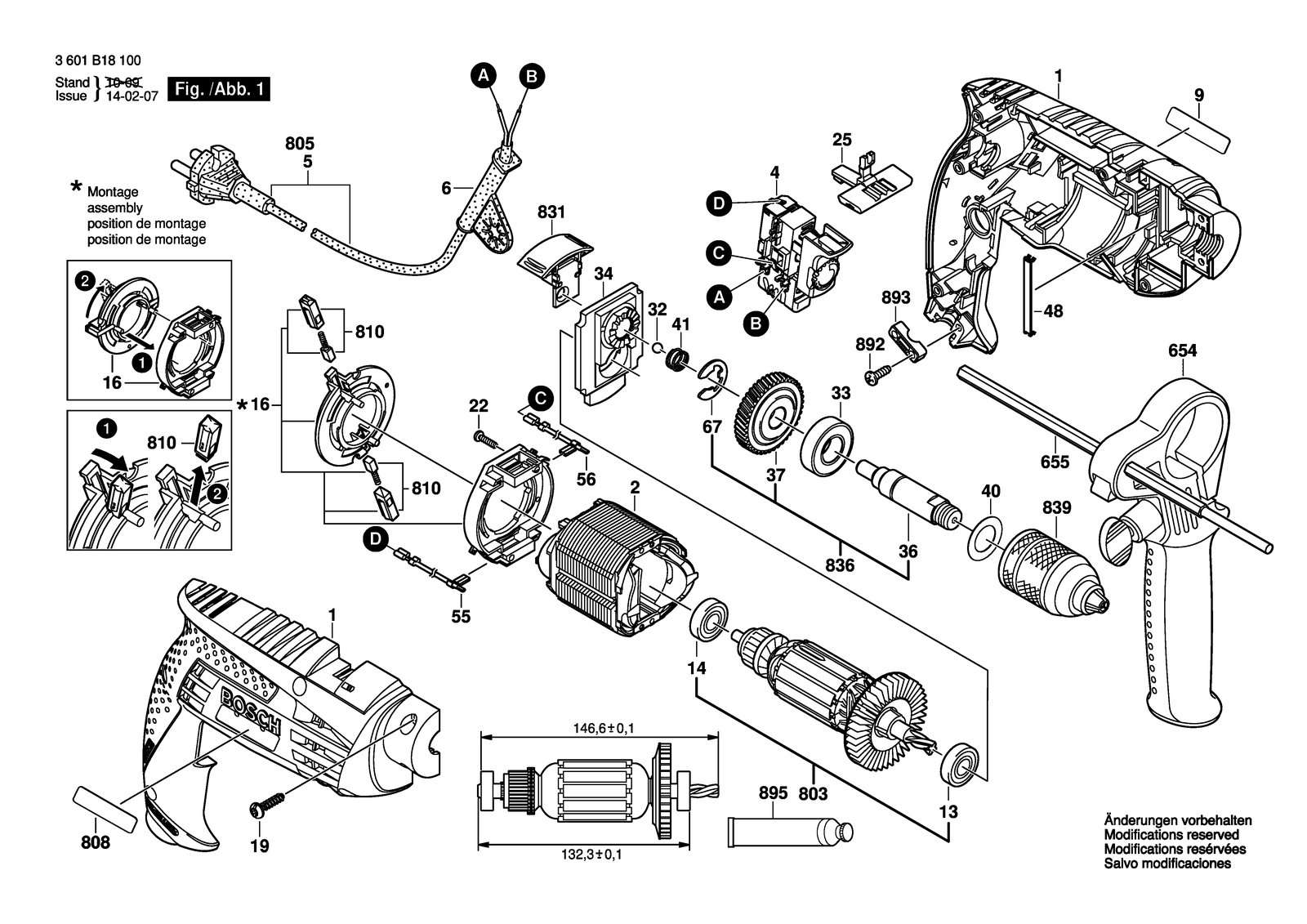

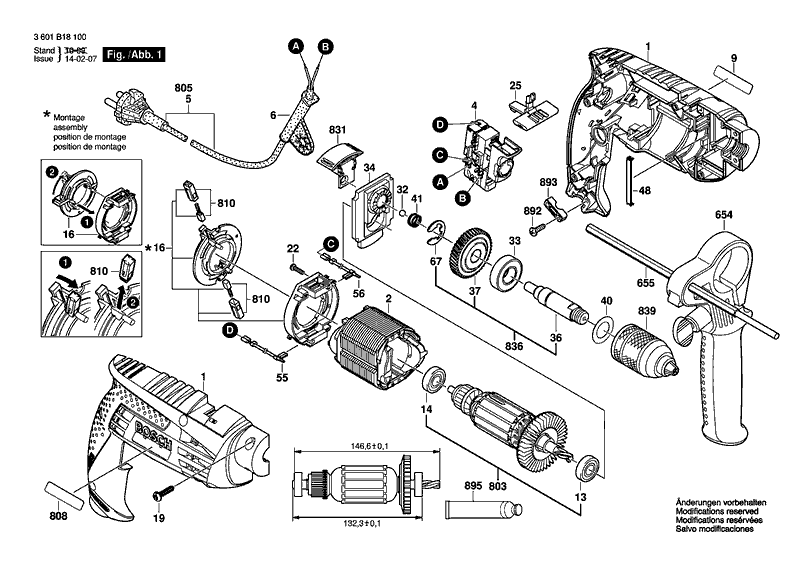

Bosch GSB 1600 RE parts diagram, sheet 1
No.Part numberPart name
12609100579Housing
132609110153Ball Bearing 8X22X7
142609110491Ball Bearing
162604337059Brush Plate
162604337061Brush Plate
192603490022Screw 4X16
22604220647Field 230V
22604220660Field 100-120V
222910611002Tapping Screw DIN 7981-ST2,2X9,5-C-H
252609100580Lever
321903230010Ball DIN 5401-5,5MM-III-ST
332600905068Groove ball bearing 15X32X9
342609199115Bearing Bracket
362609110449Drilling Spindle
372606320092Conversion Gear
41607200266Switch
41607200270Switch Black
402600100105Plain Washer
412604616006Compression Spring
482609110627Spring Clip
51604460244Power supply cord GB 230V 4,15M 2 X 1,0MM H05RN-F
51604460401Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F
51607000386Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F
52604460204Power supply cord GB 110V 4,15M 2 X 1,0MM H05 Rn-F
552609120221Connecting Cable White
562609120222Connecting Cable Red
62600707059Grommet Ø6,9 MM
62600707061Grommet Ø8,8 MM
6542602025094Auxiliary Handle
6552609005615Depth-Gauge
672609110481Spring retaining ring
8032609120234Armature 110-120V
8032609120235Armature 220-240V
8082609131107Nameplate
8082609131108Nameplate
8082609135661Nameplate
8082609135663Nameplate
8082609135665Nameplate
8102607014013Carbon-Brush Set
8102609160125Carbon-Brush Set
8312609160127Change-Over Switch
8362609160124Drilling Spindle
8392608572184Keyless Chuck
8922603490022Screw 4X16
8932601035001Cable Clip
8953605430003Grease Tube Albida
92609131774Manufacturer's nameplate GBS 1600 Re
