Bosch GSB 16 RE

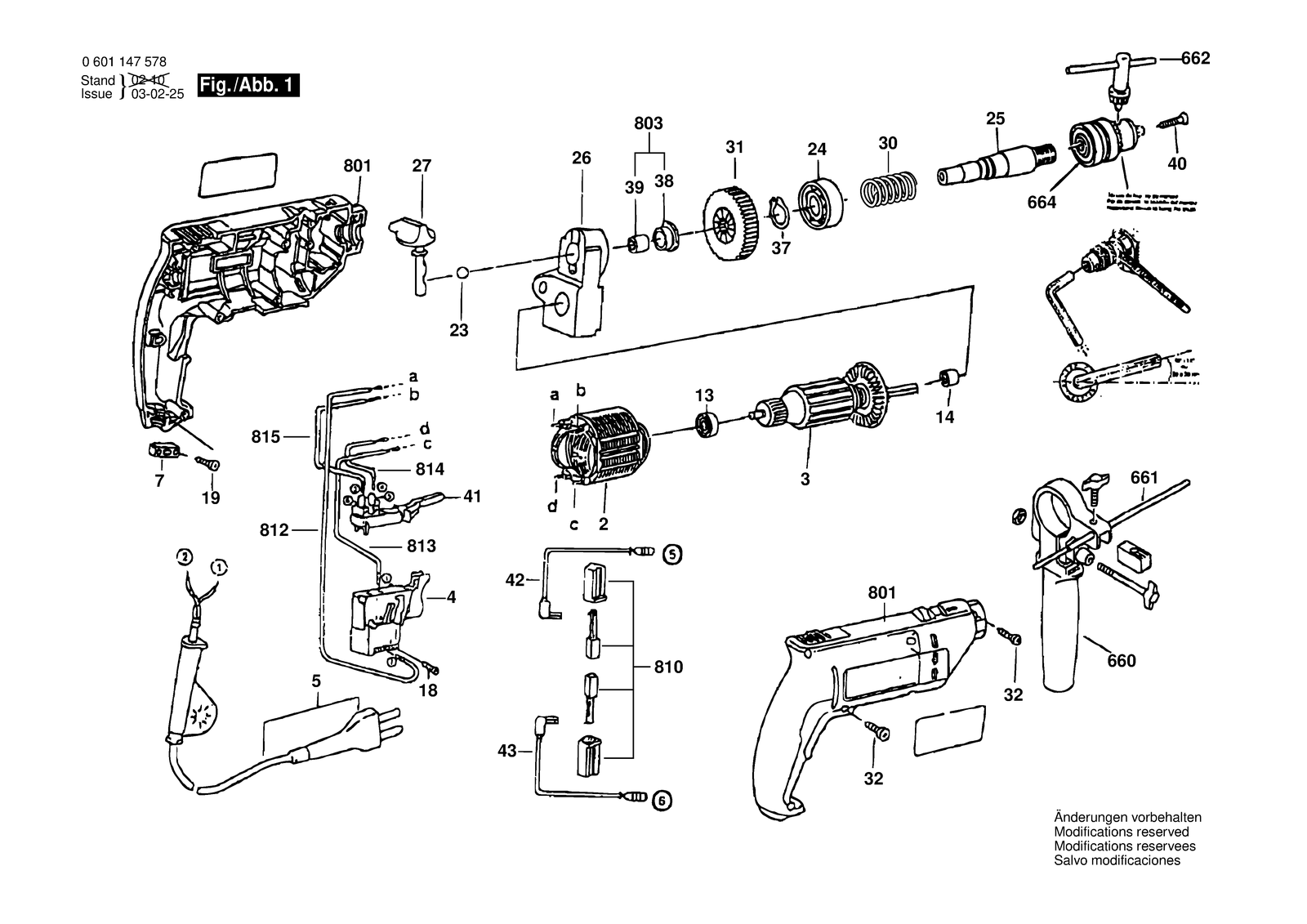

Bosch GSB 16 RE un. 2-speed drill: exploded parts diagram, 1 sheet, 80 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 16 RE: 80 positions on 1 sheet
Bosch GSB 16 RE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 13 | 3130900020 | Groove ball bearing 8X22X7 608-2Z/C3 |
| 13 | 1900905029 | Ball Bearing 8X22X7 |
| 14 | 2600917003 | Needle-Roller Bearing Ø8X8 MM |
| 14 | 2600917003 | Needle-Roller Bearing Ø8X8 MM |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 19 | 9618087099 | Screw 4X16 MM |
| 19 | 9618087099 | Screw 4X16 MM |
| 2 | F000607013 | Pole Shoe 220V |
| 2 | F000607014 | Field 115-127V |
| 2 | 9618089662 | Pole Shoe 220V |
| 2 | 9618089667 | Pole Shoe 127V |
| 23 | 1903230009 | Ball DIN 5401-5 G28 |
| 23 | 1903230009 | Ball DIN 5401-5 G28 |
| 24 | 1900905121 | Groove ball bearing 12X28X8 |
| 24 | 9618081609 | Groove ball bearing |
| 25 | F000619022 | Axle |
| 25 | F000600080 | Drilling Spindle |
| 26 | F000600995 | Motor Bearing |
| 26 | F000600076 | Motor Bearing |
| 27 | F000600146 | Shifter Rod |
| 27 | F000600146 | Shifter Rod |
| 3 | F000605015 | Armature With Fan 115-127V |
| 3 | F000605016 | Armature 220V |
| 3 | 9618089663 | Armature 220V |
| 3 | 9618089666 | Armature With Fan 127V |
| 30 | F000620000 | Compression Spring |
| 31 | 2606320054 | Cylindrical Gear |
| 31 | 9618089890 | Toothed Gear |
| 32 | 9618087099 | Screw 4X16 MM |
| 32 | 9618087099 | Screw 4X16 MM |
| 37 | 2916650003 | Spring retaining ring DIN 471-12X1-FST |
| 37 | 2916650003 | Spring retaining ring DIN 471-12X1-FST |
| 38 | 2606490040 | Catch Disk |
| 38 | 2606490040 | Catch Disk |
| 39 | 2600917003 | Needle-Roller Bearing Ø8X8 MM |
| 39 | 2600917003 | Needle-Roller Bearing Ø8X8 MM |
| 4 | 2607200189 | Switch |
| 4 | 2607200209 | Switch |
| 4 | 2607200187 | Switch |
| 4 | 2607200357 | Switch |
| 40 | F000616006 | Slotted Capstan Screw |
| 40 | 2603421226 | Countersunk-Head Screw Lefthand Threads M6X27 |
| 41 | 2607200231 | Change-Over Switch |
| 41 | 2607200231 | Change-Over Switch |
| 42 | 2604448147 | Connecting Cable White L=85 MM |
| 42 | 2604448147 | Connecting Cable White L=85 MM |
| 43 | 2604448147 | Connecting Cable White L=85 MM |
| 43 | 2604448147 | Connecting Cable White L=85 MM |
| 5 | 9618087135 | Power supply cord |
| 5 | 9618087136 | Power supply cord |
| 5 | F000600301 | Power supply cord |
| 5 | 9618087135 | Power supply cord |
| 5 | 9618087136 | Power supply cord |
| 5 | F000600301 | Power supply cord |
| 5 | F000609094 | Power supply cord |
| 660 | F000633014 | Handle |
| 660 | 2602025094 | Auxiliary Handle |
| 661 | F000635207 | Depth-Gauge SW 6X210 MM |
| 661 | 1613001005 | Depth-Gauge SW 6X210 MM |
| 662 | F000632059 | Chuck Wrench |
| 662 | F000632059 | Chuck Wrench |
| 664 | 9617085001 | Chuck |
| 664 | 2608571061 | Key Chuck |
| 7 | F000635217 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 801 | F000601076 | Motor Housing |
| 801 | 9618089665 | Motor Housing |
| 803 | 2606490056 | Screen Disc |
| 803 | 2606490056 | Screen Disc |
| 810 | F000611007 | Carbon Brush |
| 810 | F000611007 | Carbon Brush |
| 812 | 9618087197 | Connecting Cable |
| 812 | 9618087197 | Connecting Cable |
| 813 | F000635121 | Connecting Cable White L=124 MM |
| 813 | 2604448018 | Connecting Cable White L=124 MM |
| 814 | 9618089206 | Connecting Cable |
| 814 | 9618089206 | Connecting Cable |
| 815 | 9618089208 | Connecting Cable |
| 815 | 9618089208 | Connecting Cable |
