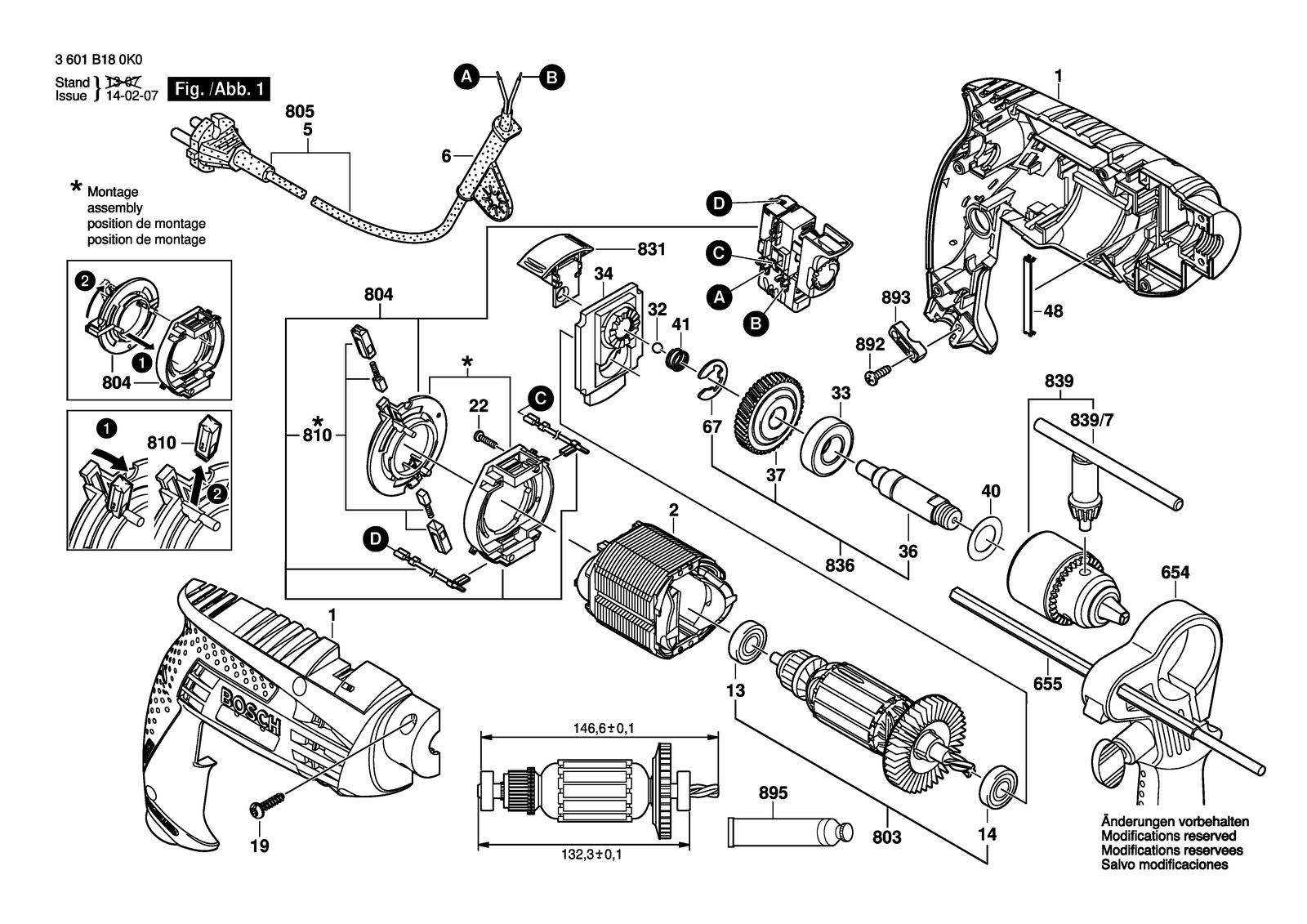

Bosch GSB 16 percussion drill: exploded parts diagram, 1 sheet, 32 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 16: 32 positions on 1 sheet

Bosch GSB 16 parts list (1 sheet)

Bosch GSB 16 parts diagram, sheet 1
No.Part numberPart name
12609100419Housing
132609110153Ball Bearing 8X22X7
142609110491Ball Bearing
192603490022Screw 4X16
22604220647Field 230V
222910611002Tapping Screw DIN 7981-ST2,2X9,5-C-H
321903230010Ball DIN 5401-5,5MM-III-ST
332600905068Groove ball bearing 15X32X9
342609199115Bearing Bracket
362609110449Drilling Spindle
372606320092Conversion Gear
402600100105Plain Washer
412604616006Compression Spring
482609110627Spring Clip
51604460262Power supply cord CN 220V 2,65M 2 X 0,75MM H05 Vv-F
52604460243Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F
52604460245Power supply cord CN 220V 2,65M 2 X 0,75MM H05 Vv-F
52604460283Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F
62600707059Grommet Ø6,9 MM
6542602025094Auxiliary Handle
6552609005615Depth-Gauge
672609110481Spring retaining ring
8032609120235Armature 220-240V
8042609199663Switch
8102607014013Carbon-Brush Set
8312609160127Change-Over Switch
8362609160124Drilling Spindle
8391608571080Key Chuck Ø1,5-13 MM
839/72607950007Chuck Wrench SG2
8922603490022Screw 4X16
8932601035001Cable Clip
8953605430003Grease Tube Albida
