Bosch GSB 16-2

Bosch GSB 16-2 un. 2-speed drill: exploded parts diagram, 1 sheet, 38 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 16-2: 38 positions on 1 sheet

Bosch GSB 16-2 parts list (1 sheet)

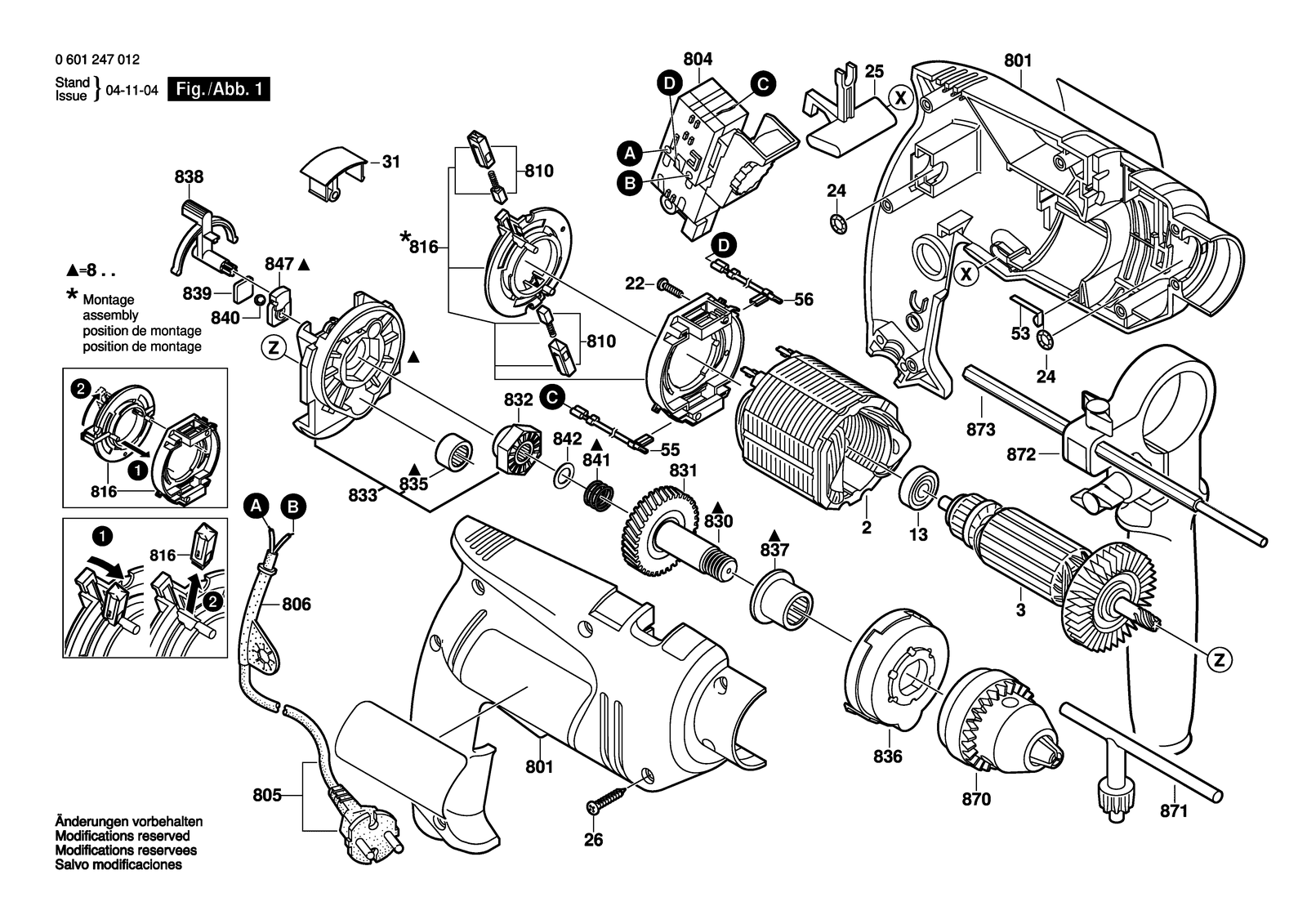

Bosch GSB 16-2 parts diagram, sheet 1
No.Part numberPart name
131900905023Groove ball bearing DIN 625-607-2Z/C3
2F000607027Field 127V
2F000607028Pole Shoe 220V
222910611002Tapping Screw DIN 7981-ST2,2X9,5-C-H
241900210000O-Ring 5,0X1,5 MM
252601099104Dummy Plug
269618087099Screw 4X16 MM
3F000605042Armature With Fan 127V
3F000605043Armature With Fan 220V
312605510170Locking Piece
532601329043Contact Strap
55F000610028Connecting Cable
56F000610031Connecting Cable
801F000601112Motor Housing
804F000608020On-Off Switch
805F000600286On-Off Switch
805F000609274Power supply cord BR 2,00M 2 X 1,00MM H05 Vvf
805F000609280Power supply cord SAM 2,00M 2 X 1,00MM H05 Vvf
8062600707066Grommet Ø6,2-Ø6,9X90 MM
810F000611030Carbon-Brush Set
816F000612063Brush Plate
830F000619018Drilling Spindle
8312606320056Cylindrical Gear
832F000614005Catch Disk
833F000613027Assembly Set
8352600914019Needle bearing
8362605808080Gear Cover
8372600301052Porous Bearing
8382601990010Indexing Disk Black
8392601074004Pressure Plate
8401903230009Ball DIN 5401-5 G28
8412604616006Compression Spring
8422600101047Shim 0,3 MM
8472608040120Frame
8709617085000Chuck
8711607950027Chuck Wrench
872F000633033Handle
8731613001005Depth-Gauge SW 6X210 MM
