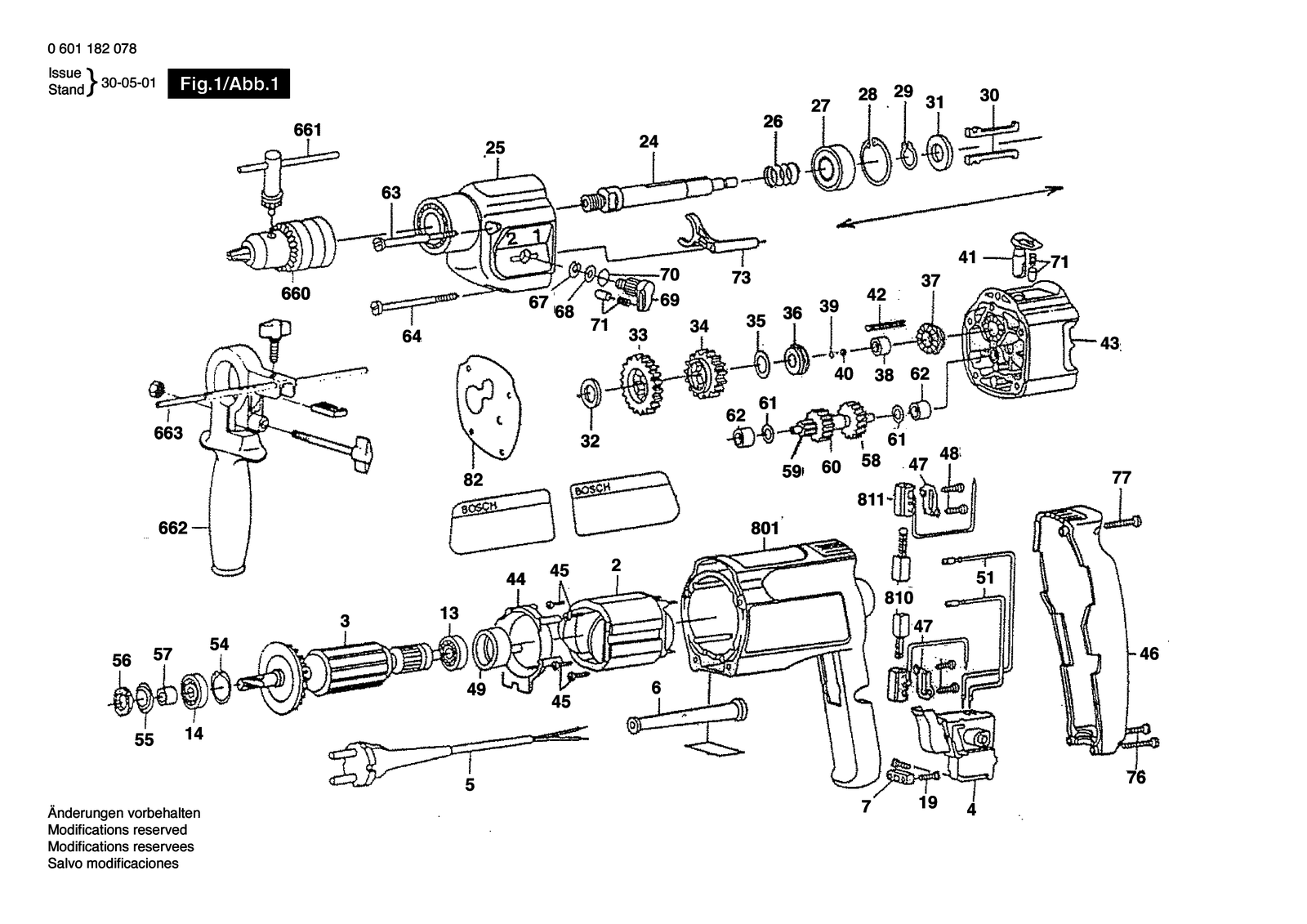

Bosch GSB 16-2 percussion drill: exploded parts diagram, 1 sheet, 65 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 16-2: 65 positions on 1 sheet
Bosch GSB 16-2 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 14 | 2600905021 | Groove ball bearing 9X24X7 |
| 19 | 9618087099 | Screw 4X16 MM |
| 2 | 2604220428 | Field 110-120V |
| 2 | 2604220429 | Field 220-230V |
| 24 | 9618089688 | Drilling Spindle |
| 25 | 2605806366 | Gear Housing Blue |
| 26 | 2604616002 | Compression Spring |
| 27 | 1900905163 | Groove ball bearing 17X35X10 |
| 28 | 2916660014 | Spring retaining ring DIN 472 35X1,5 MM |
| 29 | 2916650008 | Spring retaining ring DIN 471 17X1 MM |
| 3 | 2604010573 | Armature 110-115V |
| 3 | 2604010575 | Armature 220-240V |
| 30 | F000600352 | Flat Key |
| 31 | 2600101671 | Retaining Washer |
| 32 | 2600101515 | Shim 1,0 MM |
| 33 | 2606317045 | Cylindrical Gear Z=48 |
| 34 | 2606317037 | Cylindrical Gear Z=36 |
| 35 | 2600101616 | Shim 0,5 MM |
| 36 | 2600190052 | Catch Disk |
| 37 | 2600190051 | Catch Disk |
| 38 | 2600917003 | Needle-Roller Bearing Ø8X8 MM |
| 39 | 2600000014 | Shim washer 0,5 MM |
| 4 | 9618086703 | Switch |
| 40 | 1903230010 | Ball DIN 5401-5,5MM-III-ST |
| 41 | F000600280 | Rotary Knob |
| 42 | 2917780105 | Slotted Spring Pin 4X30 MM DIN 7346 |
| 43 | 2605700221 | Intermediate Flange |
| 44 | 2601328033 | Cover Disc |
| 45 | 2603435015 | Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F |
| 46 | 9618085475 | Housing Cover |
| 47 | 2601015047 | Brush Plate |
| 48 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 49 | 1610206021 | Rubber Ring |
| 5 | 9618089010 | Power supply cord |
| 51 | 2604448005 | Cable White L=130 MM |
| 54 | 2916660008 | Spring retaining ring DIN 472-24X1,2 MM |
| 55 | 2600500002 | Cupped Washer |
| 56 | 2600108077 | Felt Washer |
| 57 | 2600400008 | Receptacle |
| 58 | 2606319069 | Cylindrical Gear Z=29 |
| 59 | 2606309052 | Toothed Shaft |
| 6 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 60 | 2606317055 | Cylindrical Gear Z=22 |
| 61 | 2600100607 | Shim 0,3 MM |
| 62 | 2600914010 | Needle-Roller Bearing Ø6 MM |
| 63 | 2603435012 | Tapping Screw 79 MM |
| 64 | 2603435071 | Headless Screw 65 MM |
| 660 | 1608571055 | Key Chuck Ø1,5-13 Mm, 1/2" |
| 661 | 1607950027 | Chuck Wrench |
| 662 | 2602025094 | Auxiliary Handle |
| 663 | 9618082863 | Vacuum Limiter |
| 67 | 2916080007 | Locking washer DIN 6799-4-FST |
| 68 | 2600100618 | Shim washer |
| 69 | 2602026038 | Rotary Knob Black |
| 7 | 2601035001 | Cable Clip |
| 70 | 1810210222 | O-Ring 7X1 MM |
| 71 | 2600590006 | Ratchet Cap |
| 73 | 2602033006 | Adjusting Slide |
| 76 | 9618087100 | Tapping Screw 4X20 MM |
| 77 | 9618087101 | Tapping Screw |
| 801 | 9618083925 | Motor Housing |
| 810 | 1607014117 | Carbon Brush |
| 811 | 2604449027 | Brush Holder |
| 82 | F000600112 | Sealing Plate |
