Bosch GSB 16

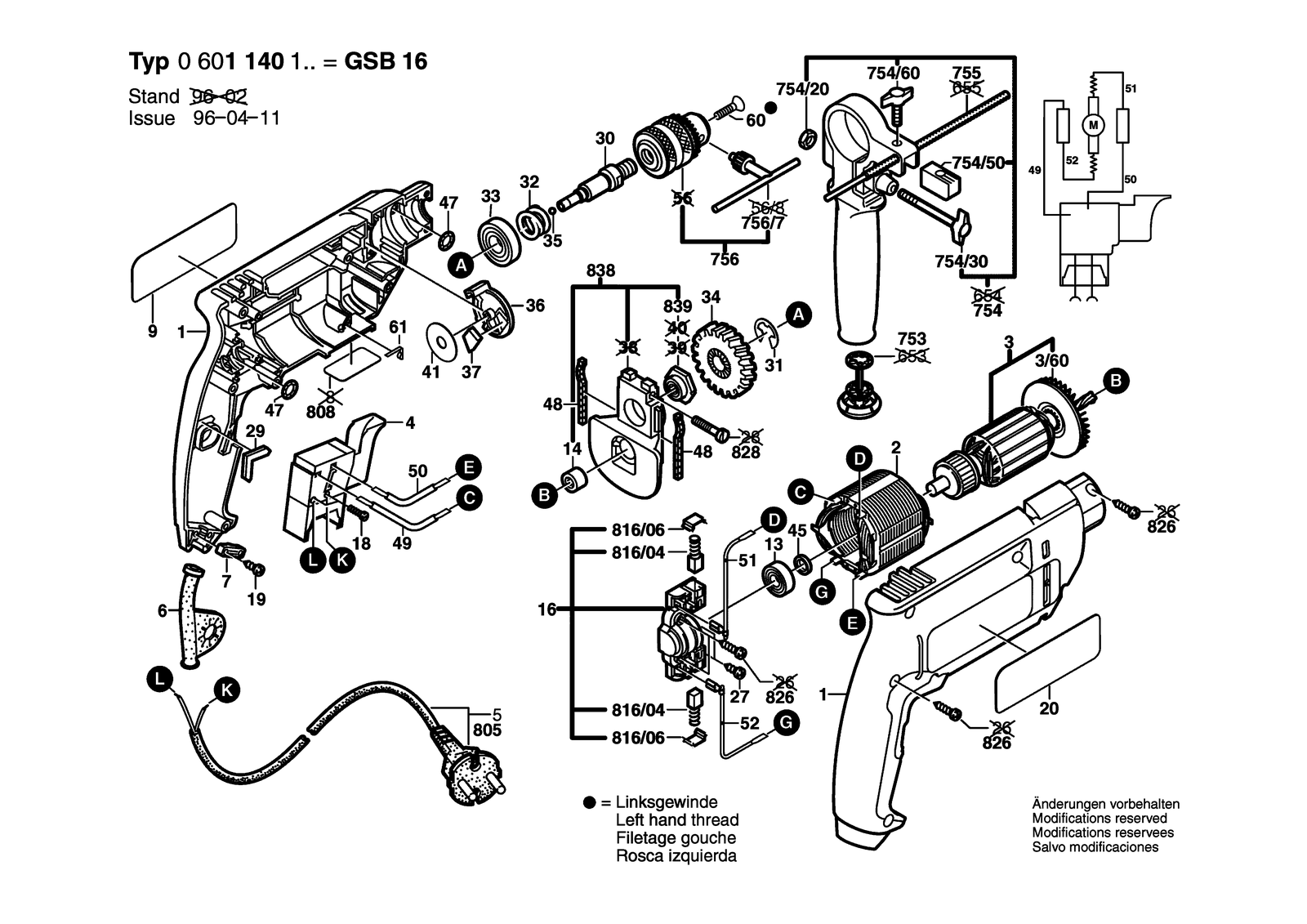

Bosch GSB 16 percussion drill: exploded parts diagram, 1 sheet, 116 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 16: 116 positions on 1 sheet
Bosch GSB 16 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104554 | Housing Section Blue |
| 1 | 2605104554 | Housing Section Blue |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 13 | 1619P11239 | Groove ball bearing |
| 14 | 2600914019 | Needle bearing |
| 14 | 2600914019 | Needle bearing |
| 16 | 2604337122 | Brush Plate |
| 16 | 2609992617 | Brush Plate |
| 16 | 2609992618 | Brush Plate |
| 16 | 2609992618 | Brush Plate |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 1619P00029 | Screw |
| 2 | 2604220430 | Field 240V |
| 2 | 2604220440 | Field 115V |
| 2 | 2604220430 | Field 240V |
| 20 | 2601118434 | Reference Plate Shadow Side |
| 20 | 2601118739 | Reference Plate Shadow Side |
| 20 | 2601118997 | Reference Plate Shadow Side |
| 27 | 2603435073 | Tapping Screw |
| 27 | 1619P00222 | Cross Recessed-Head Screw |
| 29 | 1619P00026 | Damping Plate |
| 29 | 1619P00026 | Damping Plate |
| 3 | 2604011139 | Armature With Fan 220-240V |
| 3 | 2604011164 | Armature 100V |
| 3 | 2604011139 | Armature With Fan 220-240V |
| 3/60 | 2606610029 | Fan |
| 3/60 | 2606610029 | Fan |
| 30 | 2606135034 | Drilling Spindle Lefthand Threads 1/2",M6 |
| 30 | 2606135034 | Drilling Spindle Lefthand Threads 1/2",M6 |
| 31 | 2600118001 | Locking washer 0,6 MM |
| 31 | 2600118006 | Locking washer 0,3 MM |
| 31 | 2600118001 | Locking washer 0,6 MM |
| 31 | 2600118006 | Locking washer 0,3 MM |
| 32 | 2604617000 | Compression Spring |
| 32 | 2604617000 | Compression Spring |
| 33 | 1900905122 | Groove ball bearing 15X32X9 |
| 33 | 1900905122 | Groove ball bearing 15X32X9 |
| 34 | 2606320050 | Cylindrical Gear Z=42 |
| 34 | 2606320050 | Cylindrical Gear Z=42 |
| 35 | 1903230010 | Ball DIN 5401-5,5MM-III-ST |
| 35 | 1903230010 | Ball DIN 5401-5,5MM-III-ST |
| 36 | 2601990001 | Indexing Disk Black |
| 36 | 2601990001 | Indexing Disk Black |
| 37 | 2601074003 | Pressure Plate |
| 37 | 2601074003 | Pressure Plate |
| 4 | 2607200260 | Switch |
| 4 | 2607200365 | On-Off Switch |
| 41 | 2600100066 | Plain Washer |
| 41 | 1619P00028 | Plain Washer |
| 45 | 2600209012 | Spacer Ring |
| 45 | 2600209012 | Spacer Ring |
| 47 | 1900210000 | O-Ring 5,0X1,5 MM |
| 47 | 1900210000 | O-Ring 5,0X1,5 MM |
| 48 | 2601005011 | Felt Strip |
| 48 | 2601005011 | Felt Strip |
| 49 | 2604448136 | Connecting Cable White L=133 MM |
| 49 | 2604448122 | Connecting Cable White L=162MM |
| 5 | 2604460135 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 5 | 2604460140 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460145 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 5 | 1619P00057 | Power supply cord CN 2,65M 2 X 1,00MM H05 Vv-F |
| 50 | 2604448129 | Connecting Cable Black L=83 MM |
| 50 | 2604448129 | Connecting Cable Black L=83 MM |
| 51 | 2604448123 | Connecting Cable White L=73 MM |
| 51 | 2604448123 | Connecting Cable White L=73 MM |
| 52 | 2604448130 | Connecting Cable White L=88 MM |
| 52 | 2604448130 | Connecting Cable White L=88 MM |
| 6 | 2600707059 | Grommet Ø6,9 MM |
| 6 | 2600707060 | Grommet Ø11,6-Ø12,5X84 MM |
| 6 | 2600707061 | Grommet Ø8,8 MM |
| 6 | 1619P14639 | Grommet Ø 7MM |
| 6 | 2600707059 | Grommet Ø6,9 MM |
| 60 | 2603421226 | Countersunk-Head Screw Lefthand Threads M6X27 |
| 60 | 2603421226 | Countersunk-Head Screw Lefthand Threads M6X27 |
| 61 | 2601329043 | Contact Strap |
| 61 | 2601329043 | Contact Strap |
| 7 | 1611035005 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 753 | 2607000122 | Drill Holder |
| 753 | 2607000122 | Drill Holder |
| 754 | 1619PB4323 | Auxiliary Handle |
| 754 | 1619PB4323 | Auxiliary Handle |
| 754/20 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 754/20 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 754/30 | 1613480007 | Wing Screw M6X(15)55 |
| 754/30 | 1613480007 | Wing Screw M6X(15)55 |
| 754/50 | 2608040014 | Clamping Plate M6 |
| 754/50 | 2608040014 | Clamping Plate M6 |
| 754/60 | 1613480008 | Wing Screw M6X20 MM |
| 754/60 | 1613480008 | Wing Screw M6X20 MM |
| 755 | 1613001005 | Depth-Gauge SW 6X210 MM |
| 755 | 1613001005 | Depth-Gauge SW 6X210 MM |
| 756 | 2608571046 | . Ø 1,5-13 MM |
| 756/7 | 2607950007 | Chuck Wrench SG2 |
| 756/7 | 2607950007 | Chuck Wrench SG2 |
| 805 | 1607000385 | Power supply cord EU 2,6M 2 X 1,0 MM |
| 808 | 160111A3H3 | Nameplate |
| 808 | 1619P00500 | Nameplate |
| 816/04 | 2604321913 | Carbon-Brush Set |
| 816/04 | 2604321914 | Carbon-Brush Set |
| 816/04 | 2604321914 | Carbon-Brush Set |
| 816/06 | 2601322017 | Ratchet Cap |
| 816/06 | 2601322017 | Ratchet Cap |
| 826 | 2912401020 | Tapping Screw DIN 7981-3,9X19-C-Z-ST |
| 826 | 2912401020 | Tapping Screw DIN 7981-3,9X19-C-Z-ST |
| 828 | 2910021134 | Socket head cap screw DIN 84-BM4X30-8.8 |
| 828 | 2910021134 | Socket head cap screw DIN 84-BM4X30-8.8 |
| 838 | 2605807930 | Bearing Bracket |
| 838 | 2605807930 | Bearing Bracket |
| 839 | 2606490057 | Catch Disk |
| 839 | 2606490057 | Catch Disk |
| 9 | 2601119652 | Manufacturer's nameplate |
| 9 | 2601119652 | Manufacturer's nameplate |
