Bosch GSB 16

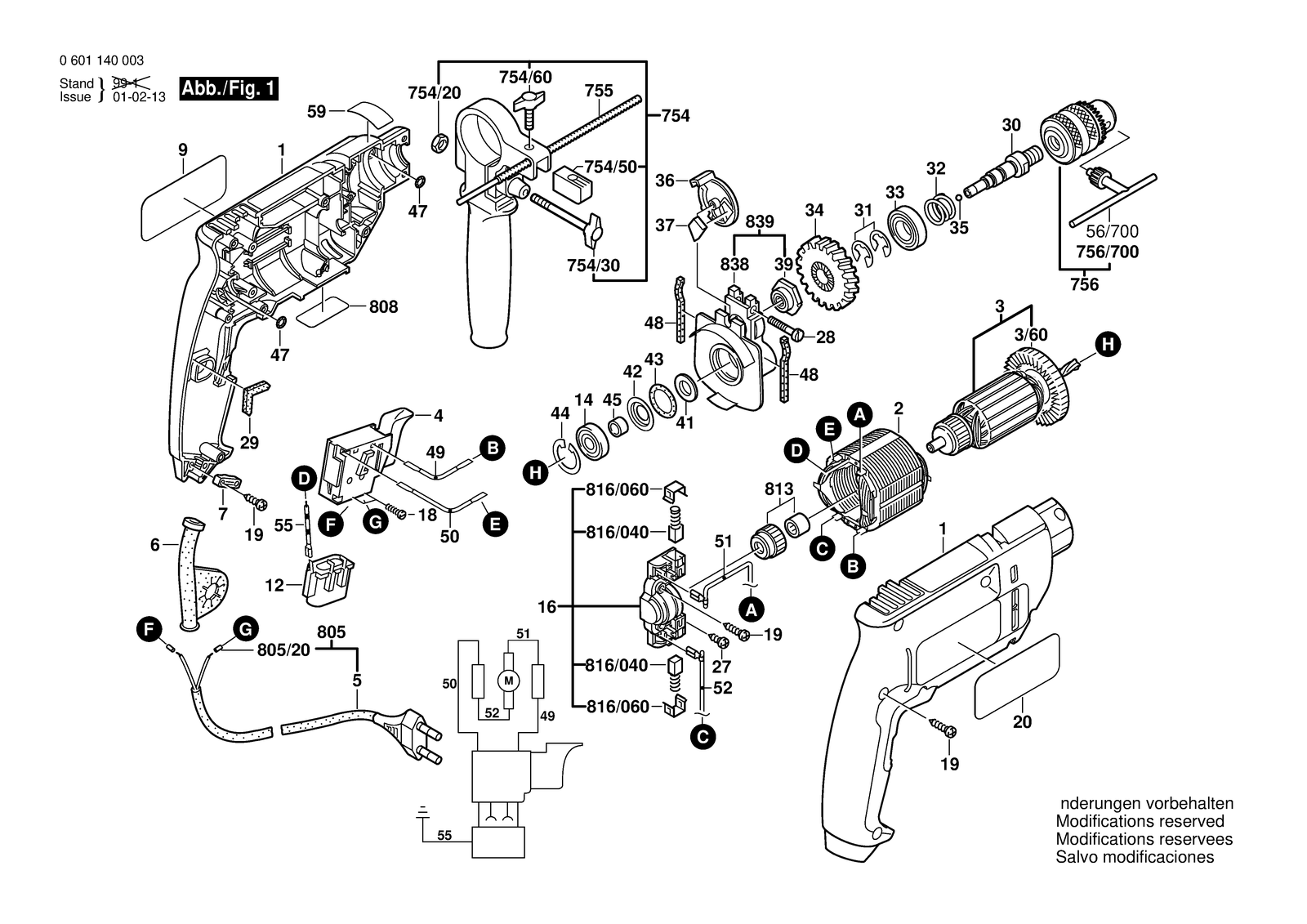

Bosch GSB 16 percussion drill: exploded parts diagram, 1 sheet, 63 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 16: 63 positions on 1 sheet
Bosch GSB 16 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104436 | Housing Section Blue |
| 12 | 2607329114 | Suppression Filter |
| 14 | 2600905039 | Groove ball bearing 9X24X7 |
| 16 | 2605807060 | Brush Plate |
| 16 | 2605807122 | Brush Plate |
| 16 | 2609992626 | Brush Plate |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2604220430 | Field 240V |
| 2 | 2604220440 | Field 115V |
| 20 | 2601118434 | Reference Plate Shadow Side |
| 27 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 28 | 2603429005 | Socket head cap screw |
| 29 | 2601022000 | Damping Plate |
| 3 | 2604011050 | Armature 230-240V |
| 3 | 2604011067 | Armature 110V |
| 3/60 | 2606610029 | Fan |
| 30 | 2606135034 | Drilling Spindle Lefthand Threads 1/2",M6 |
| 31 | 2600118001 | Locking washer 0,6 MM |
| 31 | 2600118002 | Locking washer 0,8 MM |
| 31 | 2600118006 | Locking washer 0,3 MM |
| 32 | 2604617000 | Compression Spring |
| 33 | 1900905122 | Groove ball bearing 15X32X9 |
| 34 | 2606320050 | Cylindrical Gear Z=42 |
| 35 | 1903230010 | Ball DIN 5401-5,5MM-III-ST |
| 36 | 2601990001 | Indexing Disk Black |
| 37 | 2601074003 | Pressure Plate |
| 39 | 2606490056 | Screen Disc |
| 4 | 2607200260 | Switch |
| 41 | 2600108014 | Felt Washer |
| 42 | 2600500014 | Cupped Washer |
| 43 | 1900210117 | O-Ring 18X3 MM |
| 44 | 2916660008 | Spring retaining ring DIN 472-24X1,2 MM |
| 45 | 2600400008 | Receptacle |
| 47 | 1900210000 | O-Ring 5,0X1,5 MM |
| 48 | 2601005011 | Felt Strip |
| 49 | 2604448136 | Connecting Cable White L=133 MM |
| 5 | 2604420033 | Cable Set |
| 5 | 2604460283 | Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F |
| 50 | 2604448129 | Connecting Cable Black L=83 MM |
| 51 | 2604448123 | Connecting Cable White L=73 MM |
| 52 | 2604448130 | Connecting Cable White L=88 MM |
| 55 | 2604448103 | Earth Conductor |
| 59 | 2601110580 | Sticker |
| 6 | 2600707059 | Grommet Ø6,9 MM |
| 6 | 2600707060 | Grommet Ø11,6-Ø12,5X84 MM |
| 6 | 2600707061 | Grommet Ø8,8 MM |
| 7 | 2601035001 | Cable Clip |
| 754 | 1619PB4323 | Auxiliary Handle |
| 754/20 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 754/30 | 1613480007 | Wing Screw M6X(15)55 |
| 754/50 | 2608040014 | Clamping Plate M6 |
| 754/60 | 1613480008 | Wing Screw M6X20 MM |
| 755 | 1613001005 | Depth-Gauge SW 6X210 MM |
| 756 | 1608571080 | Key Chuck Ø1,5-13 MM |
| 756/700 | 2607950007 | Chuck Wrench SG2 |
| 805 | 1607000385 | Power supply cord EU 2,6M 2 X 1,0 MM |
| 808 | 160111A3H3 | Nameplate |
| 813 | 2600917902 | Needle-Roller Bearing |
| 816/040 | 2604321913 | Carbon-Brush Set |
| 816/060 | 2601322017 | Ratchet Cap |
| 838 | 2605807915 | Bearing Bracket |
| 9 | 2601118432 | Manufacturer's nameplate Sunny Side |
