Bosch GSB 14,4 V-LI

Bosch GSB 14,4 V-LI cordl perc screwdr: exploded parts diagram, 1 sheet, 31 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 14,4 V-LI: 31 positions on 1 sheet

Bosch GSB 14,4 V-LI parts list (1 sheet)

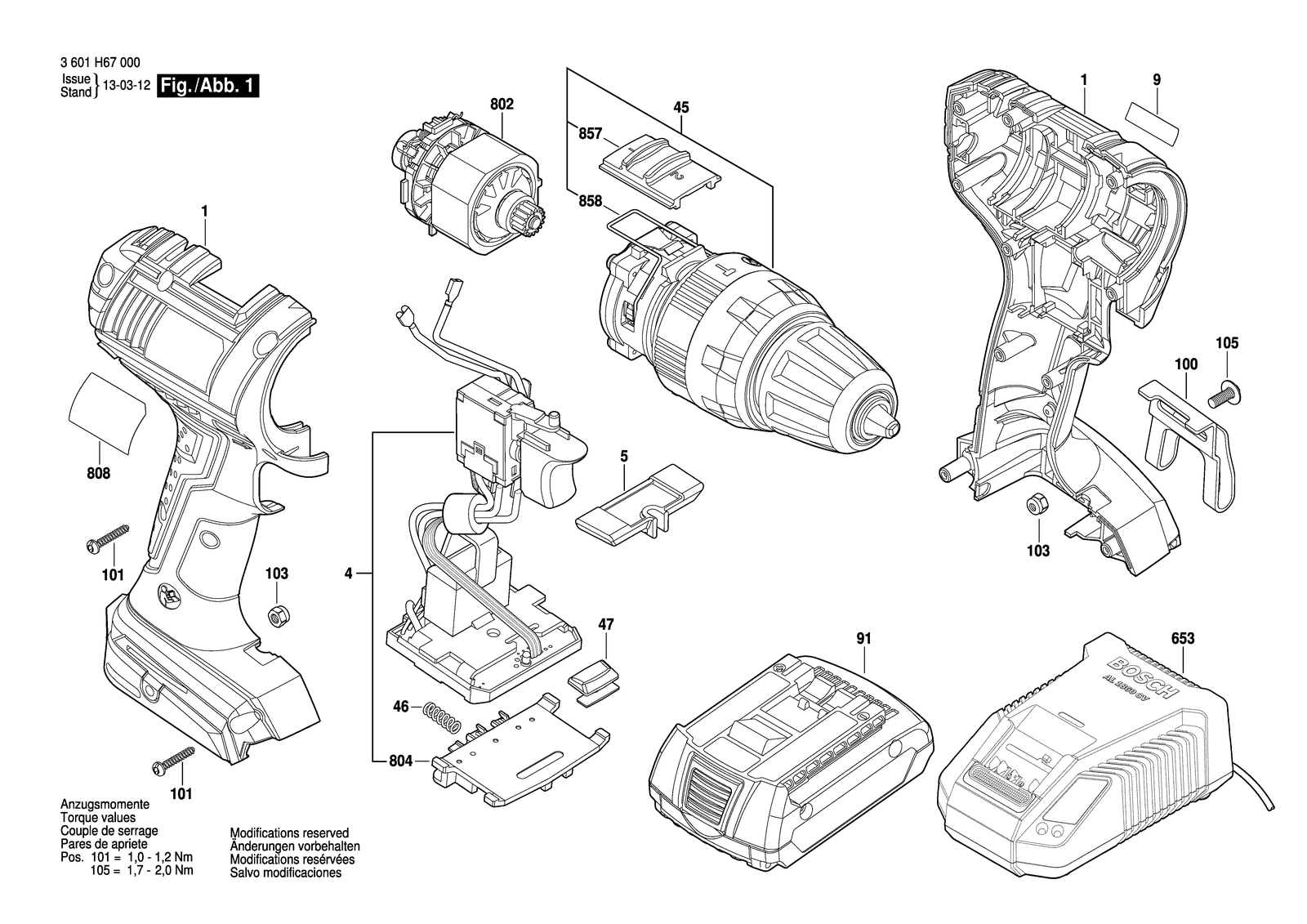

Bosch GSB 14,4 V-LI parts diagram, sheet 1
No.Part numberPart name
12609100856Housing
1002609110956Clip
1012609110353Torx Oval-Head Screw
1032609110835Nut
1052609110834Screw
41607233443Electronics Module
41607233491Electronics Module
452609199295Gear Box
461609280477Compression Spring
472609100858Lens
52609100859Adjusting lever
6532607225321Charger EU 230/14,4-18V, 30 40 S
6532607225329Fast Charger LAM 120/10,8-18V, 30 Min
6532607225425Fast Charger GB 230/10,8-18V, 1H
6532607225715Charger ARG 230V/14,4-18V, 30 Min
6532607225923Charger GB 230/10,8-18V, 30 42 S
6532607225931Charger J GAL 1880 CV 100/14,4-18V
6532607225933Charger Rok GAL 1880 CV 220V/14,4-18V
6532607225935Charger Br GAL 1880 CV 220V/14,4-18V
6532607225939Fast Charger Br GAL 1880 CV 127/14,4-18V
6532607226281Fast Charger EU GAL 18V-20 220V-240V 12V-18V 2A
8022609199358DC motor 14,4V
8041609280474Contact retainer
8081600A00Z1PNameplate
8082609132967Nameplate
8572609100897Switch Slide
8582609111078Switch Spring
92609132912Manufacturer's nameplate GSB 14,4 V-Li
911607A350B9Battery Pack EU GBA 14.4V 2.0AH LI Scm
912607336835Battery Pack Bbs Mr-L, 14.4V, 2AH,
912607336941Battery Pack Bbs Mr-Xl, 14.4V, LI
