Bosch GSB 14,4-2-LI

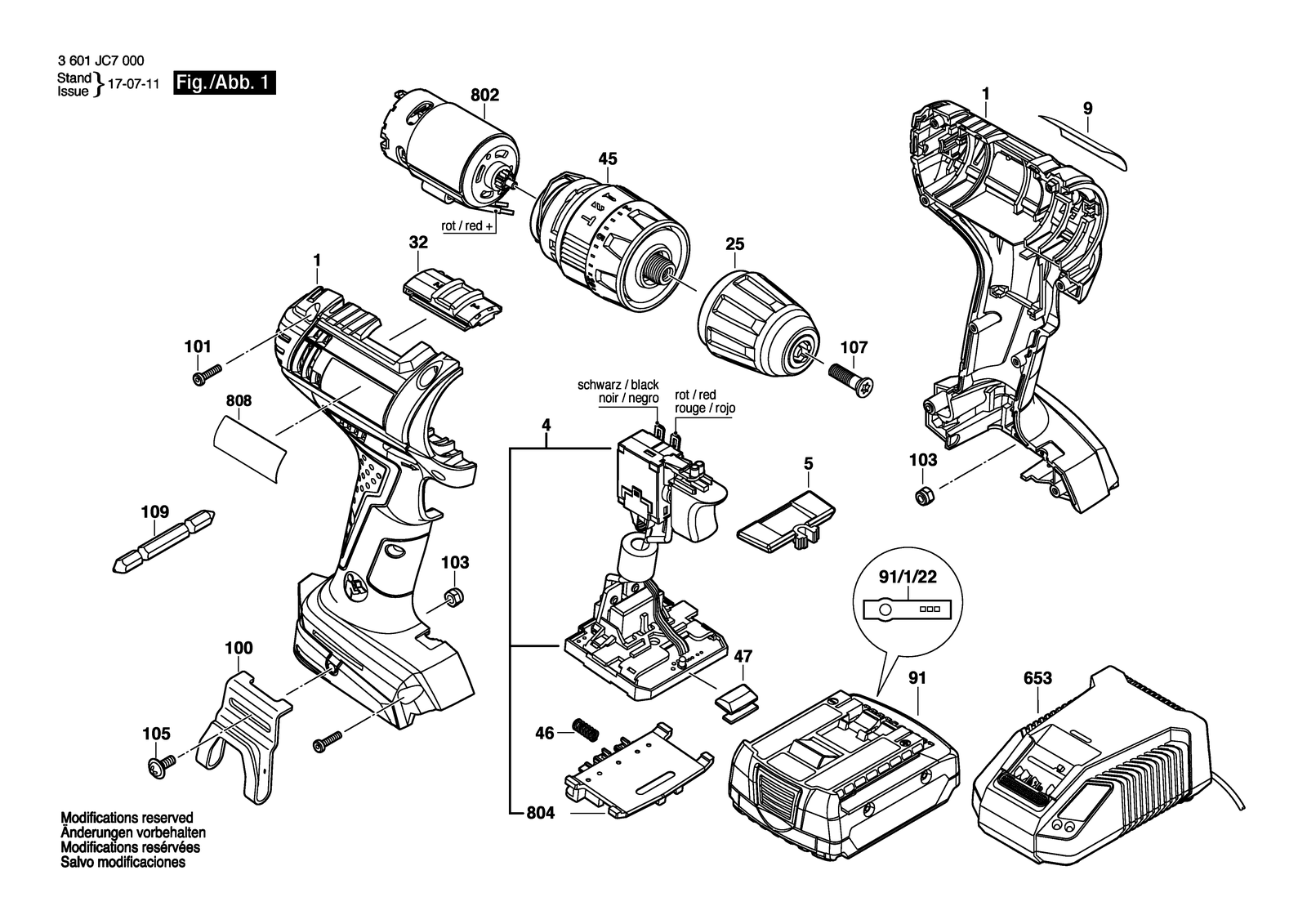

Bosch GSB 14,4-2-LI cordl perc screwdr: exploded parts diagram, 1 sheet, 51 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 14,4-2-LI: 51 positions on 1 sheet
Bosch GSB 14,4-2-LI parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609101065 | Housing Blue |
| 1 | 2609101065 | Housing Blue |
| 100 | 2609110956 | Clip |
| 100 | 2609110956 | Clip |
| 101 | 2609110538 | Screw |
| 101 | 2609110538 | Screw |
| 103 | 2609110835 | Nut |
| 103 | 2609110835 | Nut |
| 105 | 2609110834 | Screw |
| 105 | 2609110834 | Screw |
| 107 | 2603421229 | Countersunk-Head Screw Lefthand Threads M6X23 |
| 107 | 2603421229 | Countersunk-Head Screw Lefthand Threads M6X23 |
| 109 | 2609110342 | Screwdriver Blade |
| 109 | 2609110342 | Screwdriver Blade |
| 25 | 2609111312 | Keyless Chuck |
| 25 | 2609111312 | Keyless Chuck |
| 32 | 2609199279 | Switchover Unit |
| 32 | 2609199279 | Switchover Unit |
| 4 | 1607233543 | Electronics Module |
| 4 | 1607233544 | Electronics Module 18V |
| 45 | 2609199397 | Gear Box |
| 45 | 2609199397 | Gear Box |
| 46 | 1609280477 | Compression Spring |
| 46 | 1609280477 | Compression Spring |
| 47 | 2609100858 | Lens |
| 47 | 2609100858 | Lens |
| 5 | 2609101009 | Adjusting lever |
| 5 | 2609101009 | Adjusting lever |
| 653 | 2607225425 | Fast Charger GB 230/10,8-18V, 1H |
| 653 | 2607226281 | Fast Charger EU GAL 18V-20 220V-240V 12V-18V 2A |
| 653 | 2607225425 | Fast Charger GB 230/10,8-18V, 1H |
| 653 | 2607225427 | Fast Charger AUS 240/10,8-18V, 1H |
| 653 | 2607225431 | Fast Charger RC 115/10,8-18V, 1H |
| 653 | 2607225435 | Fast Charger ROK 220/10,8-18V, 1H |
| 653 | 2607225439 | Fast Charger CN 220/10,8-18V, 1H |
| 653 | 2607226281 | Fast Charger EU GAL 18V-20 220V-240V 12V-18V 2A |
| 653 | 2607226283 | Fast Charger UK GAL 18V-20 220-240V / 2A / 12-18V |
| 802 | 2609199626 | DC motor 14,4V-18V |
| 802 | 2609199626 | DC motor 14,4V-18V |
| 804 | 1609280474 | Contact retainer |
| 804 | 1609280478 | Contact retainer |
| 808 | 1600A00Z2E | Nameplate |
| 808 | 1600A00Z2G | Nameplate |
| 9 | 2609133814 | Manufacturer's nameplate GSB 14,4-2-LI |
| 9 | 2609134165 | Manufacturer's nameplate GSB 18-2-LI |
| 91 | 1607A350B9 | Battery Pack EU GBA 14.4V 2.0AH LI Scm |
| 91 | 1607A350BH | Battery Pack GBA 18V 2.0AH Scm Kr |
| 91 | 1607A350JR | Battery Pack GBA 18V 1.5AH |
| 91 | 1607A350M0 | Battery Pack GBA 18V 4.0AH |
| 91 | 1607A350MA | Battery Pack GBA 18V 2.0AH |
| 91/1/22 | 2601115537 | Sticker |
