Bosch GSB 14,4-2

Bosch GSB 14,4-2 cordl perc screwdr: exploded parts diagram, 1 sheet, 29 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 14,4-2: 29 positions on 1 sheet

Bosch GSB 14,4-2 parts list (1 sheet)

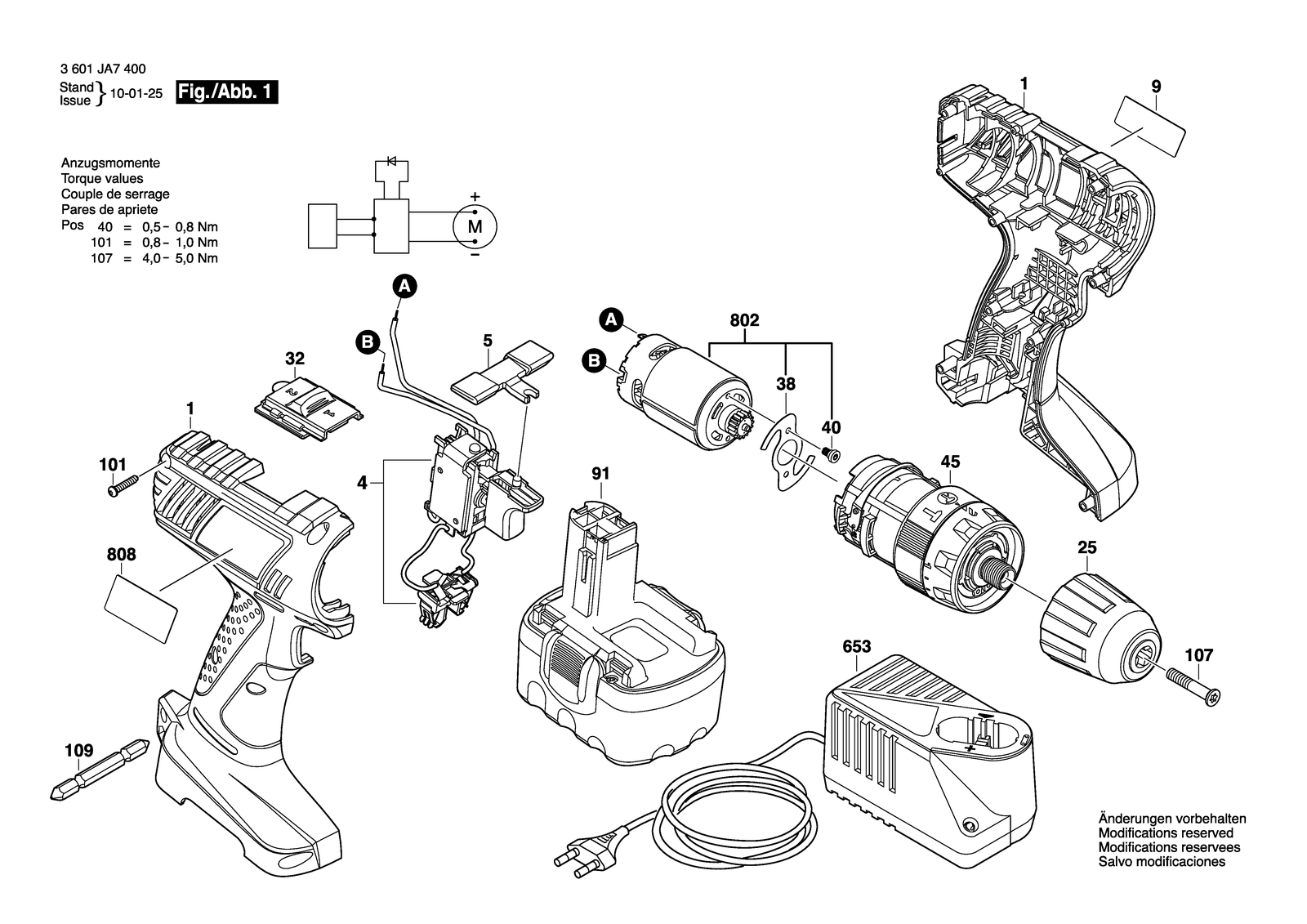

Bosch GSB 14,4-2 parts diagram, sheet 1
No.Part numberPart name
12609100844Housing
1012609110201Torx Flat-Head Screw 3X16
1072609110635Pan head screw M 6X30
1092609110342Screwdriver Blade
252609110973Keyless Chuck
322609199251Slide Switch
382609110801Tab Washer
42607202069Switch
402609110802Screw
452609199266Gear Box
52609100837Change-Over Switch
6532607224317Battery Charger SAM 115/7,2V, 3H
6532607224391Fast Charger EU 230/7,2-14,4V, 1H
6532607224393Fast Charger GB 230/7,2-14,4V, 1H
6532607224397Fast Charger USA 120/7,2-14,4V, 1H
6532607224401Fast Charger ROK 220/7,2-14,4V, 1H
6532607224727Fast Charger CN 220/7,2-14,4V, 1H
6532607224977Fast Charger BR 127/7,2-14,4V, 1H
6532607224979Fast Charger BR 220/7,2-14,4V, 1H
6532607225317Fast Charger AR 230/7,2-14,4, 1H
8022609199393Motor Spare Parts Set
8082609132751Nameplate
8082609132752Nameplate
8082609132753Nameplate
8082609132754Nameplate
8082609132755Nameplate
8082609135913Nameplate
92609132763Manufacturer's nameplate GSB 14,4-2
911617S0004WAccumulator package 14,4V, 1,5AH, Nicd
