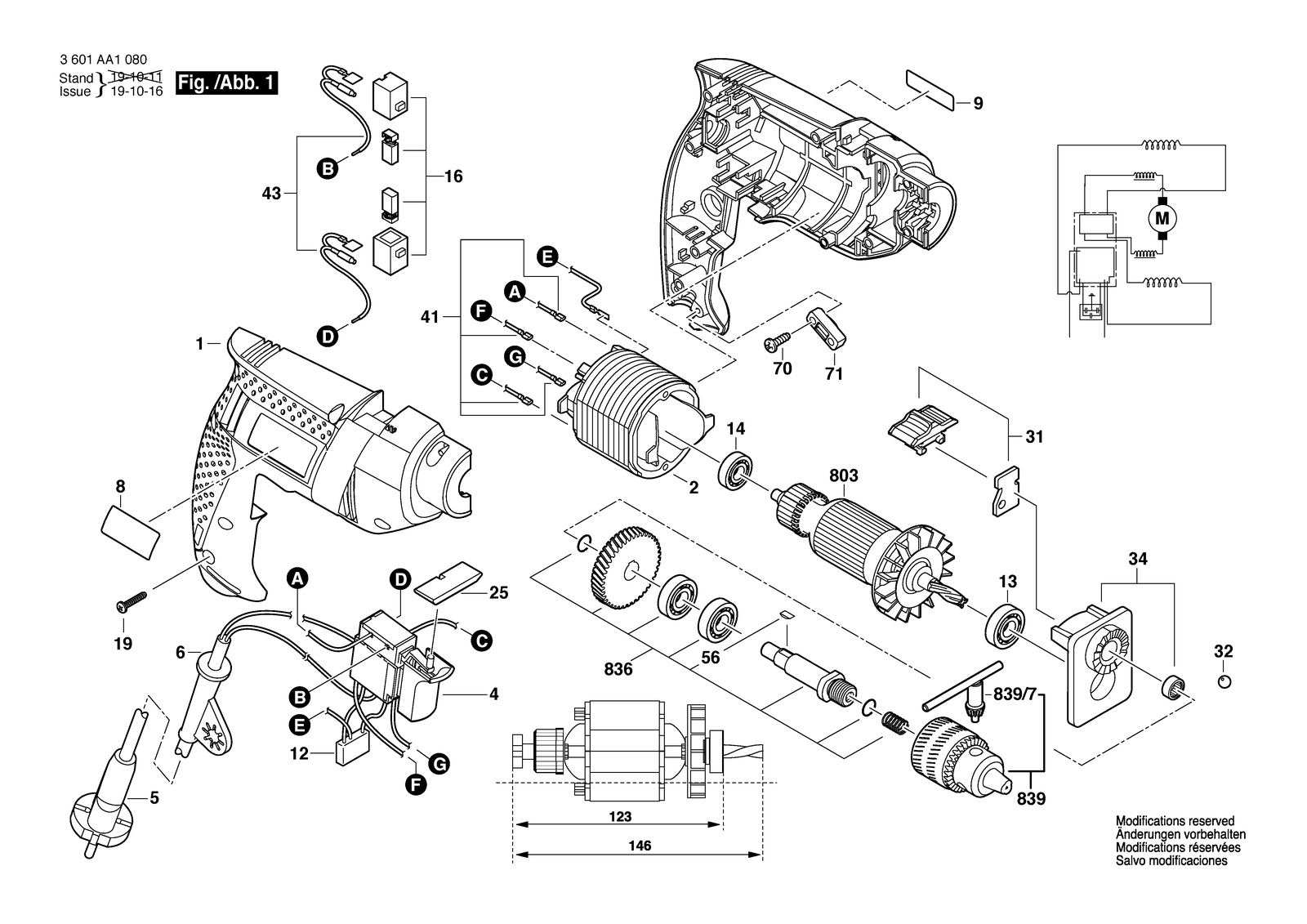

Bosch GSB 1300 percussion drill: exploded parts diagram, 2 sheets, 42 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 1300: 42 positions on 2 sheets
Bosch GSB 1300 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619PB4746 | Housing |
| 12 | 1619PA0702 | Suppression Capacitor |
| 13 | 1619PA0681 | Groove ball bearing |
| 14 | 1619PA0680 | Groove ball bearing |
| 16 | 1619PA1407 | Carbon-Brush Set |
| 16 | 1619PA6195 | Carbon-Brush Set |
| 19 | 1619PA0683 | Torx Oval-Head Screw |
| 2 | 1619PA0678 | Field 220-240V |
| 2 | 1619PA6194 | Field 115V |
| 25 | 1619PA0684 | Lever |
| 31 | 1619PA0701 | Change-Over Switch |
| 32 | F000615033 | Ball |
| 34 | 1619PA0685 | Bearing Bracket |
| 4 | 1619PA0679 | On-Off Switch |
| 4 | 1619PA6197 | On-Off Switch |
| 41 | 1619PA6599 | Cable |
| 43 | 1619PA0703 | Suppressor Box |
| 43 | 1619PA6430 | Suppressor Box |
| 5 | 1619PA0875 | Power supply cord |
| 5 | 1619PA0876 | Power supply cord |
| 5 | 1619PA0877 | Power supply cord |
| 5 | 1619PA0878 | Power supply cord |
| 5 | 1619PA2001 | Power supply cord |
| 5 | 1619PA6196 | Power supply cord |
| 5 | 1619PA8071 | Power supply cord |
| 56 | 1619PA0690 | Woodruff Key |
| 6 | 1619PA6598 | Grommet |
| 6 | 1619PB2058 | Grommet Ø 9 MM |
| 6 | F000603043 | Grommet |
| 651 | 1619PB4323 | Auxiliary Handle |
| 698 | 2603001009 | Depth-Gauge |
| 698 | 2609005615 | Depth-Gauge |
| 70 | F000616083 | Tapping Screw |
| 71 | F000616084 | Fastening Clamp |
| 8 | 1619PB3909 | Nameplate |
| 8 | 1619PB5642 | Nameplate |
| 803 | 1619PA0697 | Armature 220-240V |
| 803 | 1619PA6193 | Armature 115V |
| 836 | 1619PA1858 | Drilling Spindle |
| 839 | 1619PA1689 | Key Chuck |
| 839/7 | 1619PA0694 | Chuck Wrench |
| 9 | 1619PA9112 | Manufacturer's nameplate GSB 550 |
