Bosch GSB 13 RE

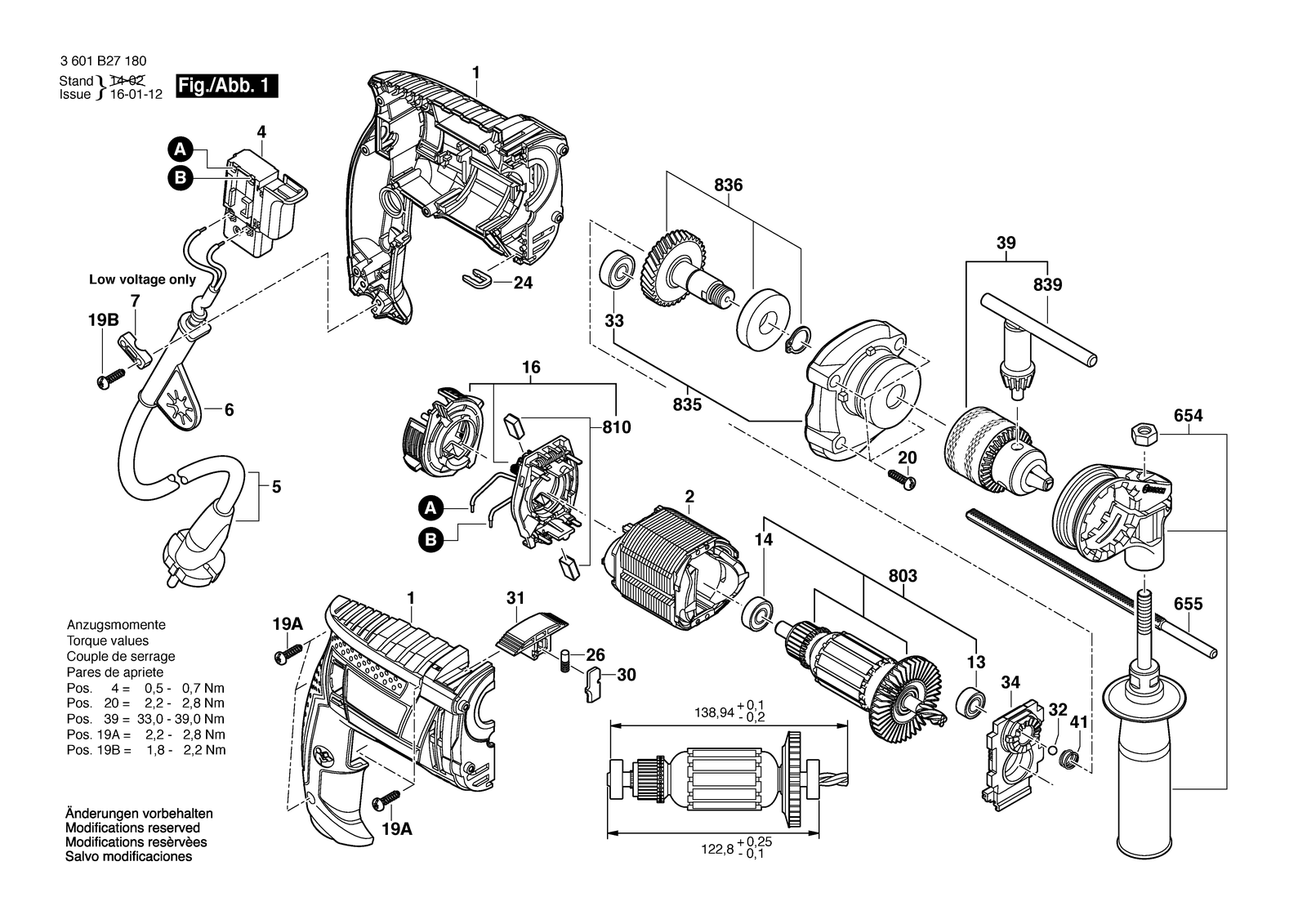

Bosch GSB 13 RE percussion drill: exploded parts diagram, 1 sheet, 67 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 13 RE: 67 positions on 1 sheet
Bosch GSB 13 RE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609100961 | Housing |
| 1 | 2609100785 | Housing |
| 13 | 2609110153 | Ball Bearing 8X22X7 |
| 13 | 2609110153 | Ball Bearing 8X22X7 |
| 14 | 2609110491 | Ball Bearing |
| 14 | 2609110491 | Ball Bearing |
| 16 | 2609199416 | Brush Plate |
| 16 | 2609199414 | Brush Plate |
| 16 | 2609199837 | Brush Plate |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2609120588 | Stator 230V |
| 2 | 1619PS0988 | Field |
| 2 | 1619PS0989 | Field |
| 2 | 2609120588 | Stator 230V |
| 2 | 2609120589 | Stator 115V |
| 20 | 2603490022 | Screw 4X16 |
| 20 | 2603490022 | Screw 4X16 |
| 24 | 2609110537 | Clip |
| 24 | 2609110537 | Clip |
| 26 | 2600590006 | Ratchet Cap |
| 26 | 2600590006 | Ratchet Cap |
| 30 | 2609110922 | Pressure Plate |
| 30 | 2609110922 | Pressure Plate |
| 31 | 2609100728 | Shift Lever |
| 31 | 2609100728 | Shift Lever |
| 32 | 1903230010 | Ball DIN 5401-5,5MM-III-ST |
| 32 | 1903230010 | Ball DIN 5401-5,5MM-III-ST |
| 33 | 2600905068 | Groove ball bearing 15X32X9 |
| 33 | 2600905068 | Groove ball bearing 15X32X9 |
| 34 | 2609199228 | Bearing Bracket |
| 34 | 2609199228 | Bearing Bracket |
| 39 | 2609000990 | Key Chuck |
| 39 | 2609000990 | Key Chuck |
| 4 | 1607200508 | On-Off Switch Black |
| 4 | 2607200623 | Switch |
| 4 | 2607200624 | Switch |
| 41 | 2604616006 | Compression Spring |
| 41 | 2604616006 | Compression Spring |
| 5 | 1604460262 | Power supply cord CN 220V 2,65M 2 X 0,75MM H05 Vv-F |
| 5 | 2604460245 | Power supply cord CN 220V 2,65M 2 X 0,75MM H05 Vv-F |
| 5 | 1604460262 | Power supply cord CN 220V 2,65M 2 X 0,75MM H05 Vv-F |
| 5 | 1604460275 | Power supply cord J 2,5M 2 X 1,25MM Pvc |
| 5 | 2604460243 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460245 | Power supply cord CN 220V 2,65M 2 X 0,75MM H05 Vv-F |
| 6 | 2600707059 | Grommet Ø6,9 MM |
| 6 | 2600707059 | Grommet Ø6,9 MM |
| 6 | 2600707061 | Grommet Ø8,8 MM |
| 654 | 2609199582 | Auxiliary Handle |
| 654 | 2609199582 | Auxiliary Handle |
| 655 | 2609005615 | Depth-Gauge |
| 655 | 2603001009 | Depth-Gauge |
| 7 | 2601035001 | Cable Clip |
| 7 | 1611035005 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 803 | 2609199667 | Armature set 230V |
| 803 | 2609199667 | Armature set 230V |
| 803 | 2609199736 | Armature set |
| 810 | 2610391290 | Carbon-Brush Set |
| 810 | 2609120645 | Carbon-Brush Set |
| 810 | 2610391290 | Carbon-Brush Set |
| 835 | 2609199665 | Gear Housing |
| 835 | 2609199665 | Gear Housing |
| 836 | 2609199666 | Spindle Assembly |
| 836 | 2609199666 | Spindle Assembly |
| 839 | 2607950007 | Chuck Wrench SG2 |
| 839 | 2607950007 | Chuck Wrench SG2 |
