Bosch GSB 13 RE

Bosch GSB 13 RE percussion drill: exploded parts diagram, 1 sheet, 43 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 13 RE: 43 positions on 1 sheet

Bosch GSB 13 RE parts list (1 sheet)

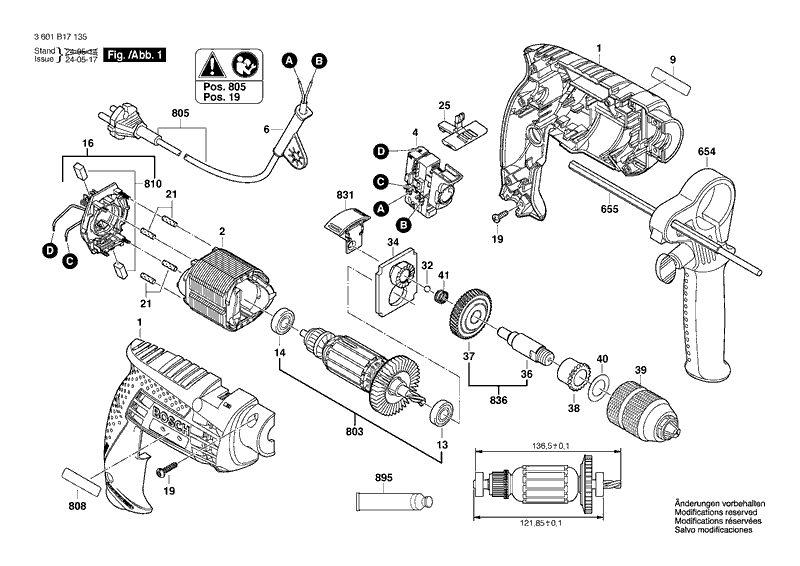

Bosch GSB 13 RE parts diagram, sheet 1
No.Part numberPart name
12609100658Housing
132609110153Ball Bearing 8X22X7
142609110491Ball Bearing
162609120317Brush Plate
162609120375Brush Plate
162609120376Brush Plate
192603490022Screw 4X16
21619P21238Field 230V
22604220653Field 110-127V
22604220718Field 230V
212600409021Shrinkable Tube
251619PS0998Reversing Switch
252609100580Lever
321903230010Ball DIN 5401-5,5MM-III-ST
342609199073Bearing Bracket
362609110441Drilling Spindle
372606320092Conversion Gear
382609110442Sintered-Metal Bushing
391600A01SA9Keyless Chuck
41607200270Switch Black
41607200275Switch
42607200623Switch
402600100105Plain Washer
412604616006Compression Spring
62600707059Grommet Ø6,9 MM
6542602025094Auxiliary Handle
6552603001009Depth-Gauge
8032609120231Armature 110-127V
8032609120232Armature 220-240V
8051604460432Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F
8052604460147Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F
8052604460161Power supply cord
8052604460283Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F
808160111A9SRNameplate
808160111A9STNameplate
808160111A9SUNameplate
8081619PS1002Nameplate
8102609160125Carbon-Brush Set
8102610391290Carbon-Brush Set
8312609160127Change-Over Switch
8362609160123Drilling Spindle
8953605430003Grease Tube Albida
9160111C4YCManufacturer's nameplate
