Bosch GSB 13 RE
Bosch GSB 13 RE percussion drill: exploded parts diagram, 1 sheet, 38 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

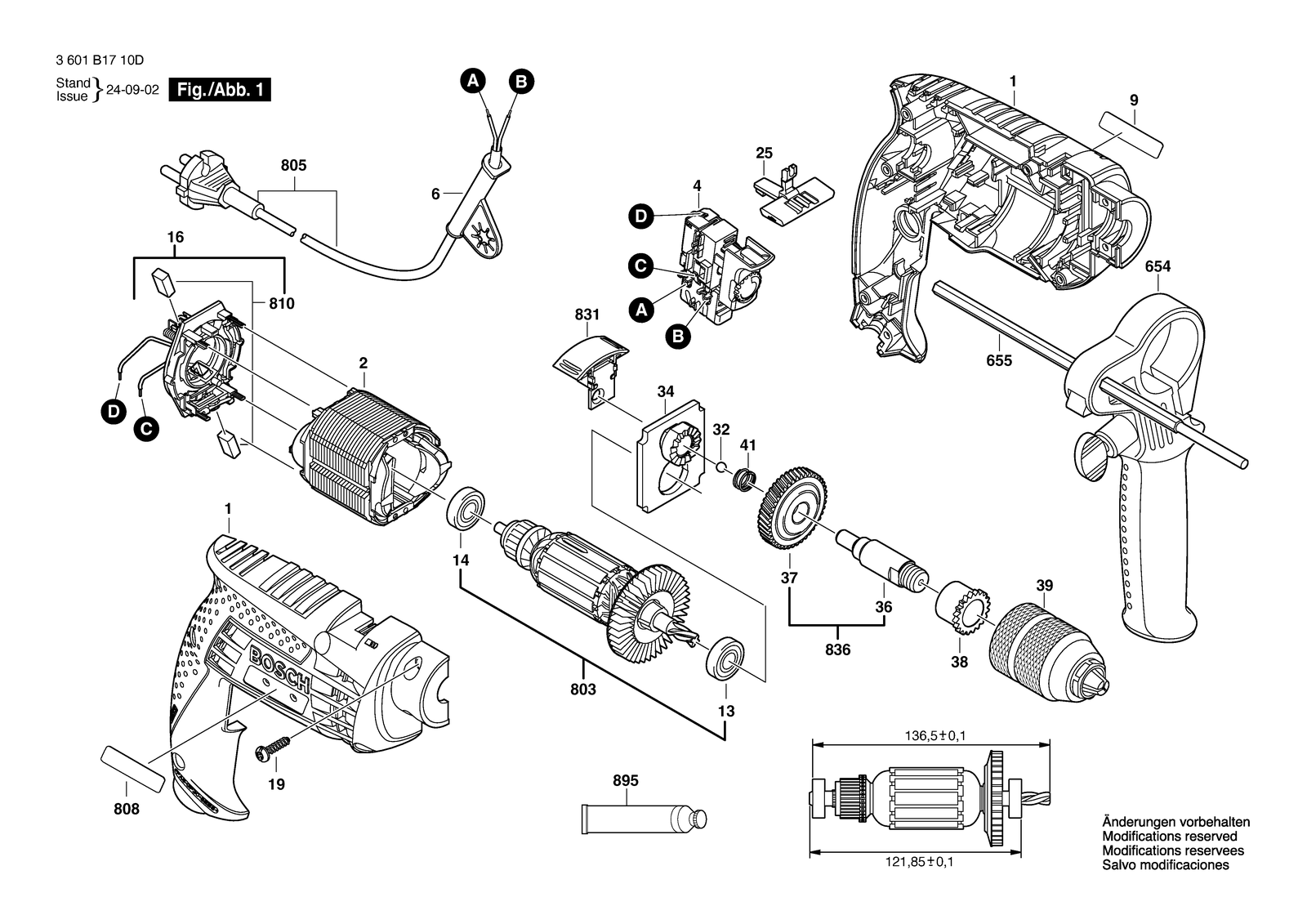

All parts of Bosch GSB 13 RE: 38 positions on 1 sheet
Bosch GSB 13 RE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609100658 | Housing |
| 13 | 2609110153 | Ball Bearing 8X22X7 |
| 14 | 2609110491 | Ball Bearing |
| 16 | 2609120317 | Brush Plate |
| 16 | 2609120375 | Brush Plate |
| 16 | 2609120376 | Brush Plate |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 1619P21238 | Field 230V |
| 2 | 1619PS0993 | Field |
| 25 | 1619PS0998 | Reversing Switch |
| 32 | 1903230010 | Ball DIN 5401-5,5MM-III-ST |
| 34 | 2609199073 | Bearing Bracket |
| 36 | 2609110441 | Drilling Spindle |
| 37 | 2606320092 | Conversion Gear |
| 38 | 2609110442 | Sintered-Metal Bushing |
| 39 | 1600A01SA9 | Keyless Chuck |
| 4 | 1607200270 | Switch Black |
| 4 | 1607200275 | Switch |
| 4 | 2607200625 | Switch |
| 41 | 2604616006 | Compression Spring |
| 6 | 2600707059 | Grommet Ø6,9 MM |
| 654 | 2602025094 | Auxiliary Handle |
| 655 | 2603001009 | Depth-Gauge |
| 803 | 2609120231 | Armature 110-127V |
| 803 | 2609120232 | Armature 220-240V |
| 805 | 1604460432 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 805 | 2604460161 | Power supply cord |
| 805 | 2604460204 | Power supply cord GB 110V 4,15M 2 X 1,0MM H05 Rn-F |
| 808 | 1619PS0999 | Nameplate |
| 808 | 1619PS1000 | Nameplate |
| 808 | 1619PS1001 | Nameplate |
| 808 | 1619PS1005 | Nameplate |
| 810 | 2609160125 | Carbon-Brush Set |
| 810 | 2610391290 | Carbon-Brush Set |
| 831 | 2609160127 | Change-Over Switch |
| 836 | 2609160123 | Drilling Spindle |
| 895 | 3605430003 | Grease Tube Albida |
| 9 | 160111C4YC | Manufacturer's nameplate |
