Bosch GSB 13 RE

Bosch GSB 13 RE percussion drill: exploded parts diagram, 1 sheet, 29 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 13 RE: 29 positions on 1 sheet

Bosch GSB 13 RE parts list (1 sheet)

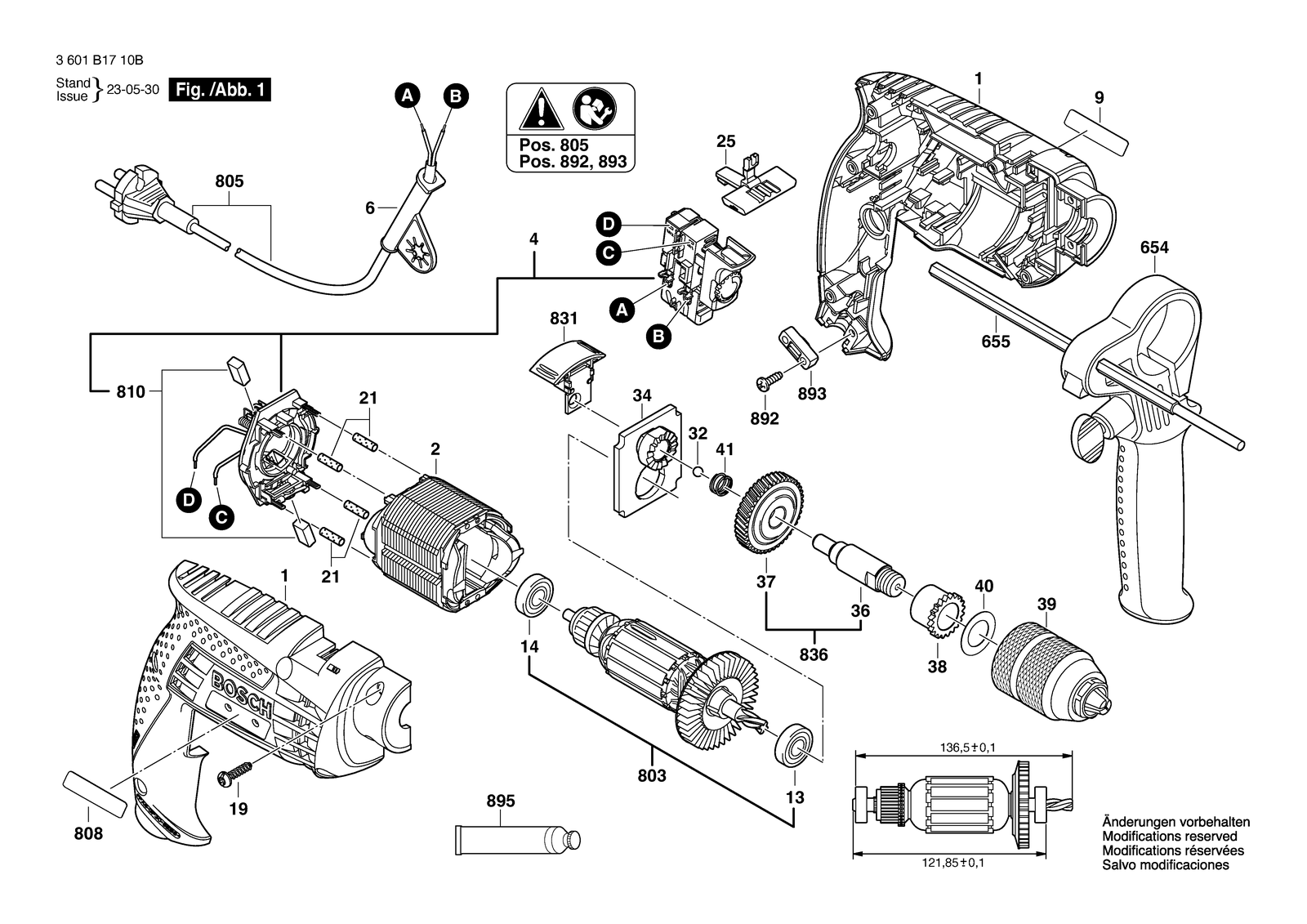

Bosch GSB 13 RE parts diagram, sheet 1
No.Part numberPart name
12609100658Housing
132609110153Ball Bearing 8X22X7
142609110491Ball Bearing
192603490022Screw 4X16
22604220718Field 230V
212600409021Shrinkable Tube
252609100580Lever
321903230010Ball DIN 5401-5,5MM-III-ST
342609199073Bearing Bracket
362609110441Drilling Spindle
372606320092Conversion Gear
382609110442Sintered-Metal Bushing
391600A01SA9Keyless Chuck
41607000F23Switch
402600100105Plain Washer
412604616006Compression Spring
62600707059Grommet Ø6,9 MM
6542602025094Auxiliary Handle
6552609005615Depth-Gauge
8032609120232Armature 220-240V
8051607000385Power supply cord EU 2,6M 2 X 1,0 MM
808160111A9SRNameplate
8102610391290Carbon-Brush Set
8312609160127Change-Over Switch
8362609160123Drilling Spindle
8922603490022Screw 4X16
8932601035001Cable Clip
8953605430003Grease Tube Albida
9160111C4YCManufacturer's nameplate
