Bosch GSB 13 RE

Bosch GSB 13 RE percussion drill: exploded parts diagram, 1 sheet, 48 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 13 RE: 48 positions on 1 sheet

Bosch GSB 13 RE parts list (1 sheet)

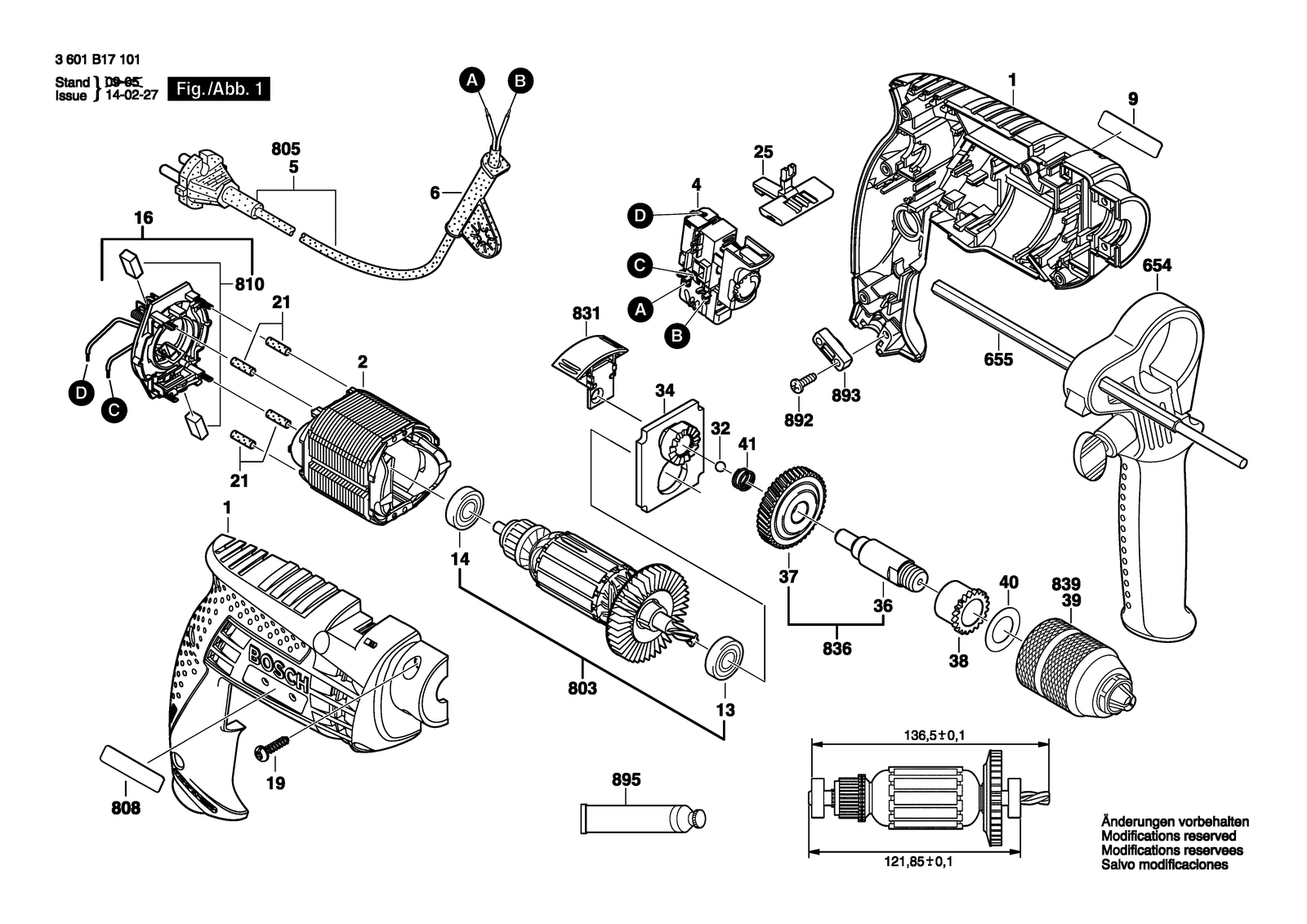

Bosch GSB 13 RE parts diagram, sheet 1
No.Part numberPart name
12605105105Housing Section
132609110153Ball Bearing 8X22X7
142609110491Ball Bearing
162609120375Brush Plate
162609120376Brush Plate
192603490022Screw 4X16
22604220653Field 110-127V
22604220718Field 230V
212600409021Shrinkable Tube
252609100580Lever
321903230010Ball DIN 5401-5,5MM-III-ST
342609199073Bearing Bracket
362609110441Drilling Spindle
372606320092Conversion Gear
382609110442Sintered-Metal Bushing
391600A01SA9Keyless Chuck
41607200270Switch Black
41607200275Switch
42607200567Switch Red
402600100105Plain Washer
412604616006Compression Spring
51604460432Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F
52604460147Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F
52604460157Power supply cord AUS 2,6M 2 X 0,75MM Pvc
52604460204Power supply cord GB 110V 4,15M 2 X 1,0MM H05 Rn-F
62600707059Grommet Ø6,9 MM
62600707060Grommet Ø11,6-Ø12,5X84 MM
6542602025094Auxiliary Handle
6552609005615Depth-Gauge
8032609120231Armature 110-127V
8032609120232Armature 220-240V
8051607000385Power supply cord EU 2,6M 2 X 1,0 MM
8082609131395Nameplate
8082609131868Nameplate
8082609135635Nameplate
8082609135641Nameplate
8082609135643Nameplate
8101607000491Carbon-Brush Set 10 X 2 610 391 290
8102609160125Carbon-Brush Set
8102610391290Carbon-Brush Set
8312609160127Change-Over Switch
8362609160123Drilling Spindle
8392608572184Keyless Chuck
8922603490022Screw 4X16
8931611035005Cable Clip
8932601035001Cable Clip
8953605430003Grease Tube Albida
92609130906Manufacturer's nameplate GSB 13 Re
