Bosch GSB 13 RE

Bosch GSB 13 RE percussion drill: exploded parts diagram, 1 sheet, 41 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 13 RE: 41 positions on 1 sheet

Bosch GSB 13 RE parts list (1 sheet)

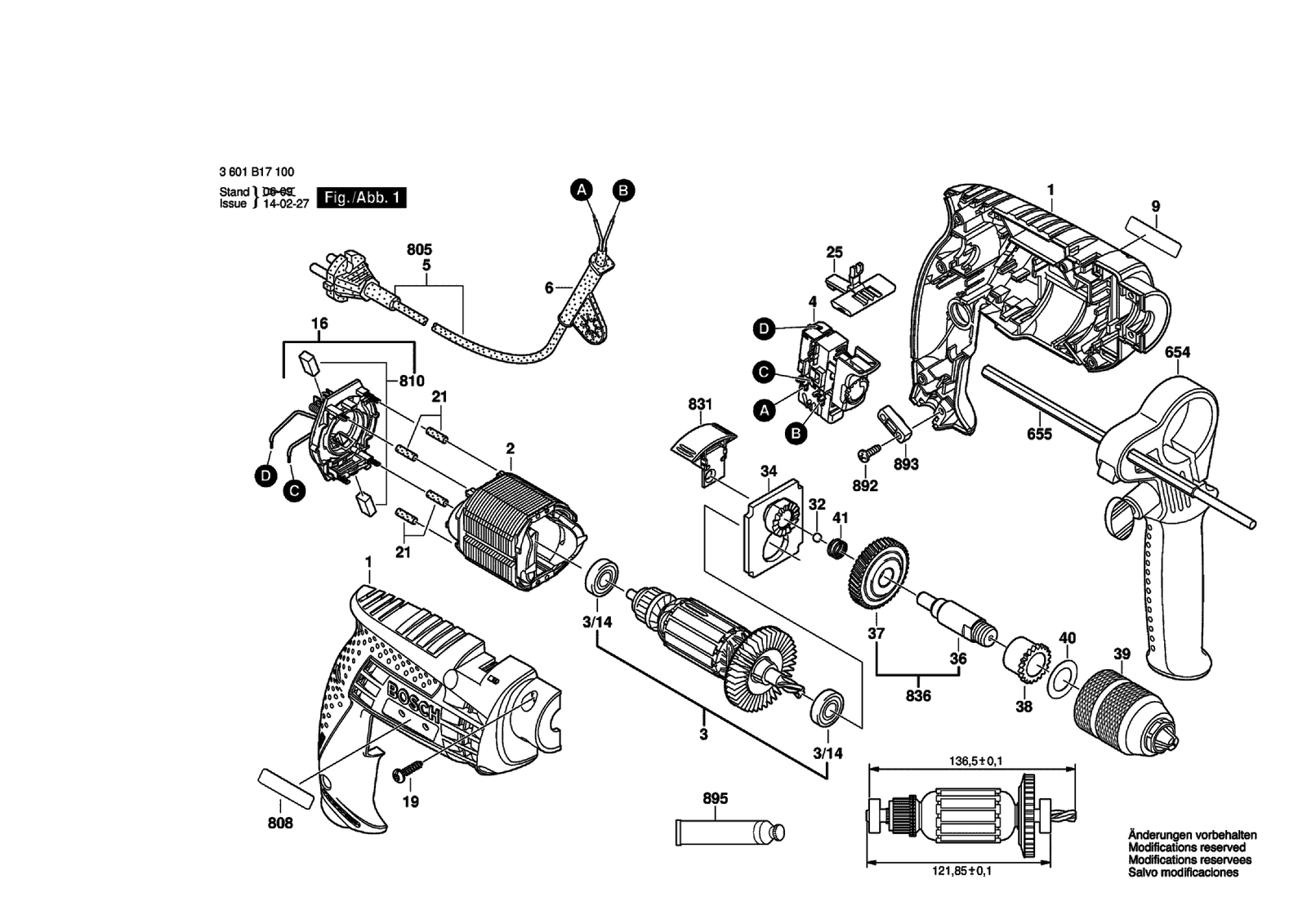

Bosch GSB 13 RE parts diagram, sheet 1
No.Part numberPart name
12605105190Housing
162604337108Brush Plate
162604337109Brush Plate
192603490022Screw 4X16
22604220654Field 100-110V
22604220718Field 230V
212600409021Shrinkable Tube
252609100580Lever
32604011375Armature 230-240V
32604011376Armature 110-115V
3/143130900020Groove ball bearing 8X22X7 608-2Z/C3
322603230007Ball 5,25 MM
342609199073Bearing Bracket
362606135123Drilling Spindle
372606320092Conversion Gear
382609110442Sintered-Metal Bushing
391600A01SA9Keyless Chuck
41607200275Switch
42607200598Switch
402600100105Plain Washer
412604616006Compression Spring
51604460432Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F
52604460147Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F
52604460207Power supply cord GB 110V 2,65M 2 X 1,0MM H05 Vv-F
62600707059Grommet Ø6,9 MM
6542602025094Auxiliary Handle
6552609005615Depth-Gauge
8051607000385Power supply cord EU 2,6M 2 X 1,0 MM
8082601115042Marking Plate
8082601115043Marking Plate
8082601115044Marking Plate
8082601115045Marking Plate
8101607000491Carbon-Brush Set 10 X 2 610 391 290
8102609160125Carbon-Brush Set
8102610391290Carbon-Brush Set
8312609160127Change-Over Switch
8362606135939Drilling Spindle
8922603490022Screw 4X16
8932601035001Cable Clip
8953605430003Grease Tube Albida
92609130906Manufacturer's nameplate GSB 13 Re
