Bosch GSB 13 RE percussion drill: exploded parts diagram, 2 sheets, 104 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 13 RE: 104 positions on 2 sheets

Bosch GSB 13 RE parts list (2 sheets)

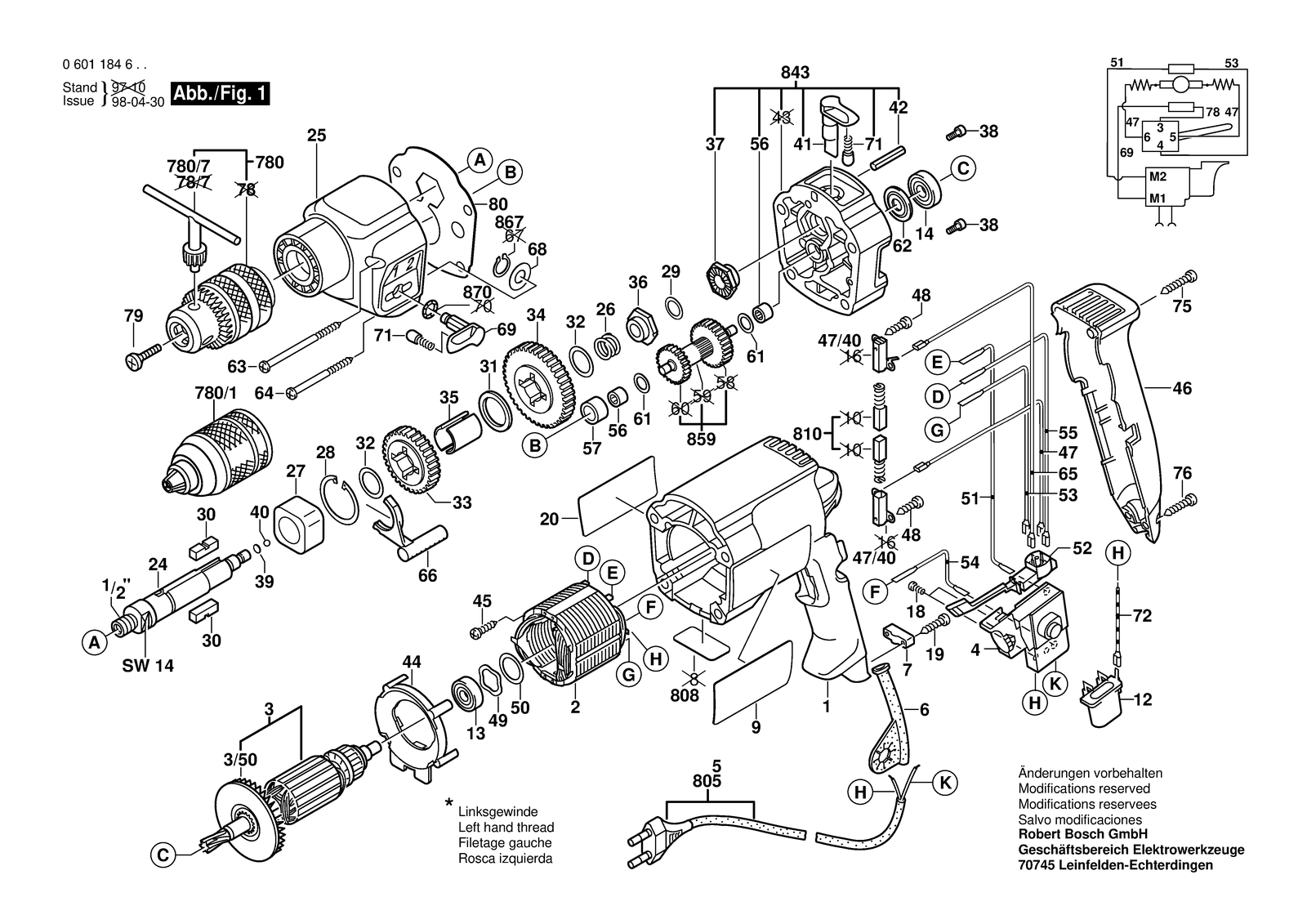

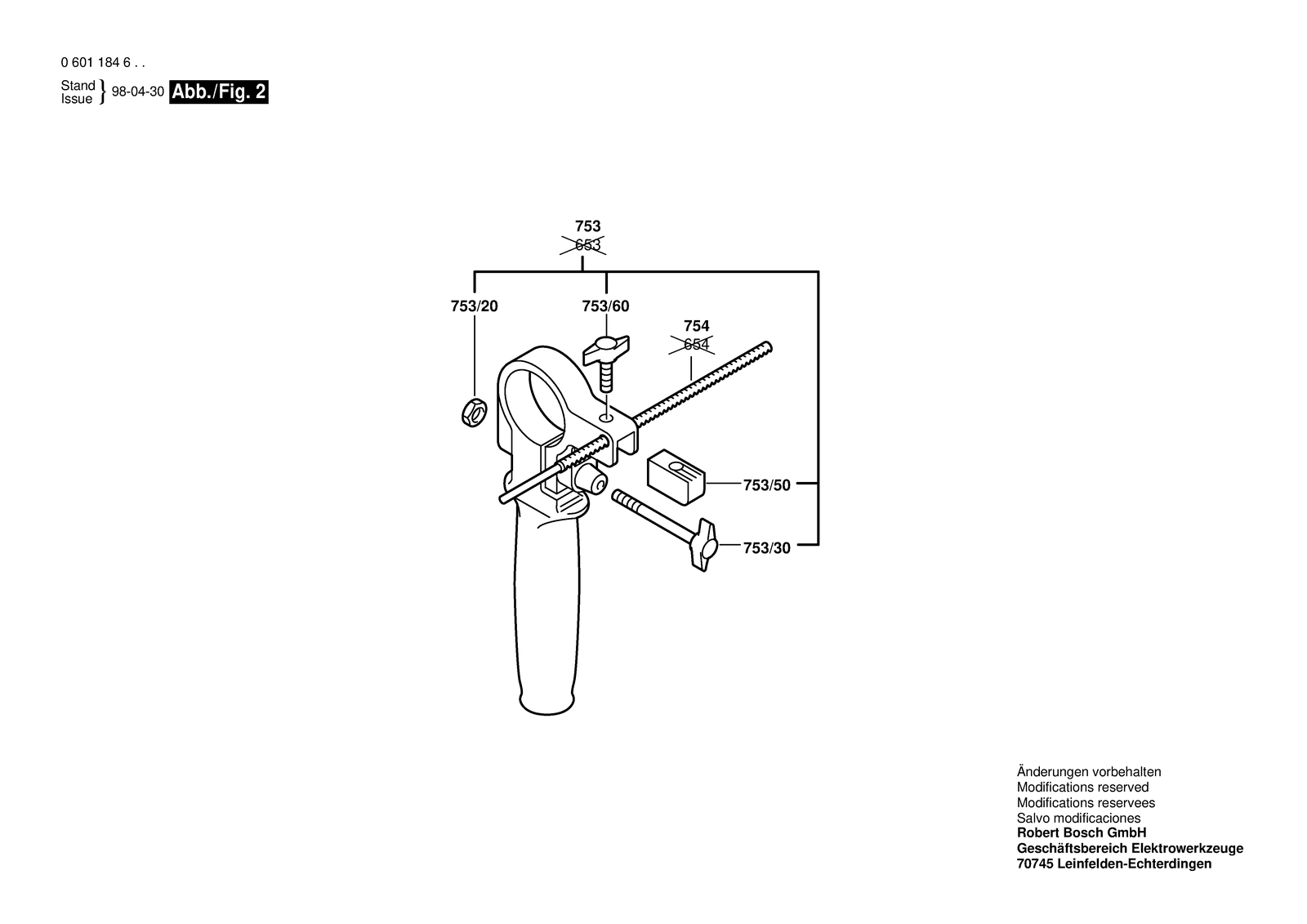

Bosch GSB 13 RE parts diagram, sheet 1Bosch GSB 13 RE parts diagram, sheet 2
No.Part numberPart name
12605104653Motor Housing Blue
122607329114Suppression Filter
131900905018Ball Bearing 7X22X7
141619P02417Groove ball bearing
182603410001Socket head cap screw M3X6,5-4.8
191619P00029Screw
21604220254Field 220-240V
22604220666Field 100V
202601117006Reference Plate Shadow Side
202601117095Reference Plate
202601117113Reference Plate
242606135086Drilling Spindle SW 14
252605806422Gear Housing Blue
262604616006Compression Spring
272600301031Sintered-Metal Bushing 14,7-0,15
282916650008Spring retaining ring DIN 471 17X1 MM
292600101047Shim 0,3 MM
31619P05267Armature 220V
32604011222Armature With Fan 220-240V
32604011224Armature With Fan 100V
3/502606610029Fan
302602300034Flat Key
312600101084Retaining Washer
322600101515Shim 1,0 MM
332606317083Cylindrical Gear
342606317082Cylindrical Gear
352601098031Guiding Plate
362600190070Catch Disk
372600190071Catch Disk
382603410048Thread-forming tap. Screw M4X8
392600000012Shim washer 0,2 MM
392600000014Shim washer 0,5 MM
42607200209Switch
42607200210Switch
401903230010Ball DIN 5401-5,5MM-III-ST
412602026072Rotary Knob Black
422917780101Slotted Spring Pin DIN 7346 4X24
442601328033Cover Disc
451619P00220Torx Oval-Head Screw 3X10
462605132051Housing Cover Blue
47/402604337003Brush Holder
47/402604449047Brush Holder
481619P00220Torx Oval-Head Screw 3X10
492600150004Shim
51604460312Power supply cord EU 2,65M 2 X 0,75MM H05 W-f
51619P00058Power supply cord GB 2,65M 2 X 1,00MM H05 Vv-F
51619P00435Power supply cord CN 2,65M 2 X 1,00MM H05 Rn-F
52604460153Power supply cord J 2,5M 2 X 0,75MM Pvc
52604460157Power supply cord AUS 2,6M 2 X 0,75MM Pvc
502600101027Shim washer 0,3 MM
502600101665Shim washer 0,2 MM
502600101667Shim washer 0,5 MM
512604448005Cable White L=130 MM
522607200216Change-Over Switch
532604448100Connecting Cable White L=68 MM
542604448146Connecting Cable White L=110 MM
552604448254Connecting Cable
562600914010Needle-Roller Bearing Ø6 MM
572600400027Bearing Sleeve
61619P14639Grommet Ø 7MM
62600703011Grommet Ø8,3-Ø9,4X95 MM
62600707059Grommet Ø6,9 MM
62600707060Grommet Ø11,6-Ø12,5X84 MM
62600707061Grommet Ø8,8 MM
612600100607Shim 0,3 MM
622600500002Cupped Washer
632603435070Headless Screw
642603435071Headless Screw 65 MM
652604449046Brush Holder
662602033011Adjusting Slide
682600100618Shim washer
692602026038Rotary Knob Black
71611035005Cable Clip
72601035001Cable Clip
712600590006Ratchet Cap
722604448097Earth Conductor
751619P00106Screw
7531612025031Auxiliary Handle Black Ø43 MM
753/202915011007Hex Nut DIN 934-M6-8-A
753/301613480007Wing Screw M6X(15)55
753/502608040014Clamping Plate M6
753/601613480008Wing Screw M6X20 MM
7541613001005Depth-Gauge SW 6X210 MM
761619P00105Torx Oval-Head Screw 4X20
7801608571069Chuck Ø1,5-13 Mm, 1/2"
780/12608572106Keyless Chuck Ø 1,5-13 Mm, 1/2"
780/72607950007Chuck Wrench SG2
792603421226Countersunk-Head Screw Lefthand Threads M6X27
792603421229Countersunk-Head Screw Lefthand Threads M6X23
802601073012Gasket
8081619P00512Nameplate
8081619P00513Nameplate
8081619P00514Nameplate
8082601117146Nameplate
8082601119817Nameplate
8102604321905Carbon-Brush Set
8102604321913Carbon-Brush Set
8432605700941Intermediate Flange
8592606309931Toothed Shaft Z= 10/29/22
8672916080007Locking washer DIN 6799-4-FST
8702607010226Parts Set
91619P00811Manufacturer's nameplate GSB 680 Profi
92601117005Manufacturer's nameplate Sunny Side GSB 20-2 Re
92601117112Manufacturer's nameplate GSB 20-2 Re
