Bosch GSB 13

Bosch GSB 13 percussion drill: exploded parts diagram, 1 sheet, 32 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 13: 32 positions on 1 sheet

Bosch GSB 13 parts list (1 sheet)

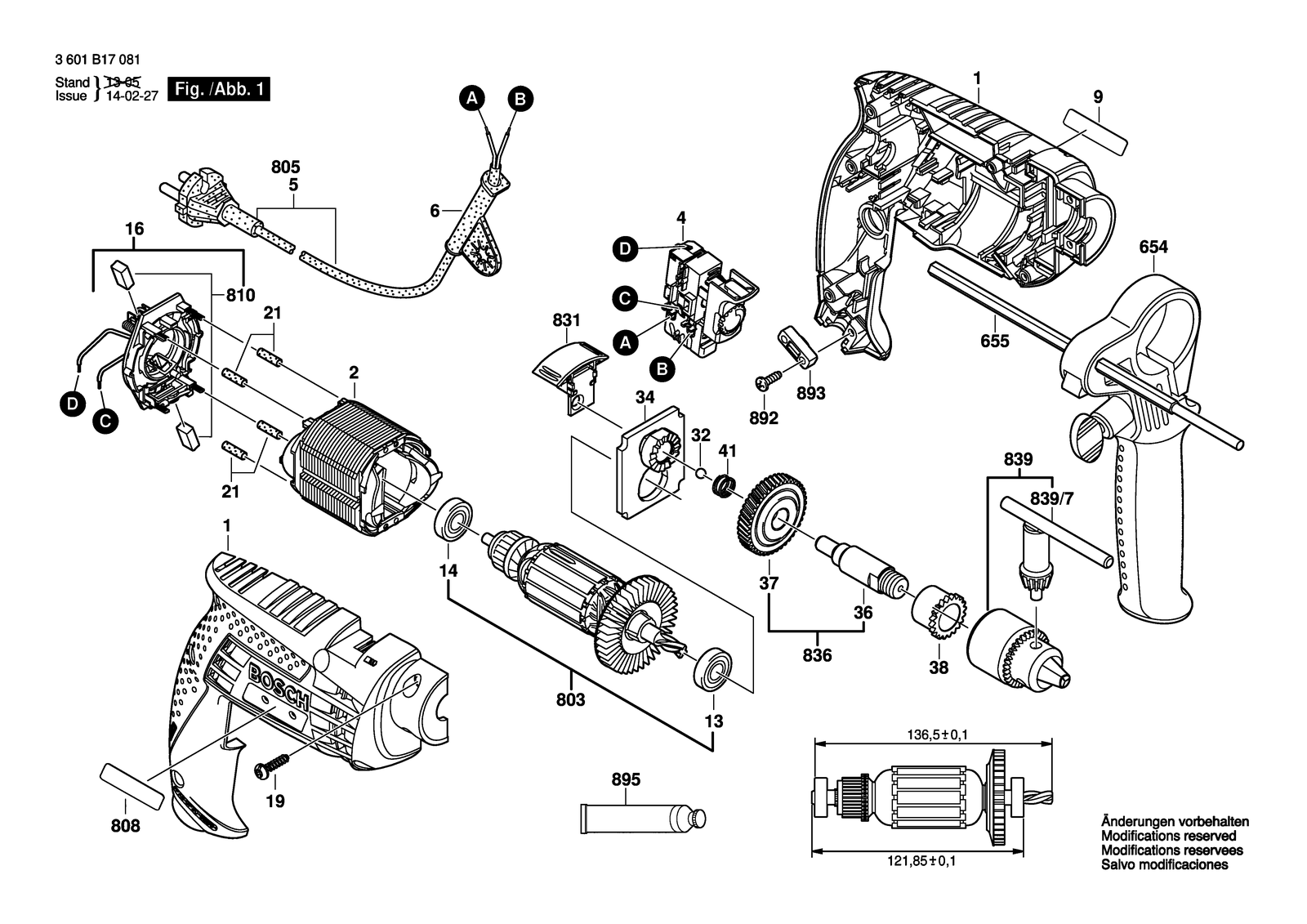

Bosch GSB 13 parts diagram, sheet 1
No.Part numberPart name
12609100428Housing
132609110153Ball Bearing 8X22X7
142609110491Ball Bearing
162609120317Brush Plate
192603490022Screw 4X16
22604220718Field 230V
212600409021Shrinkable Tube
321903230010Ball DIN 5401-5,5MM-III-ST
342609199073Bearing Bracket
362609110441Drilling Spindle
372606320092Conversion Gear
382609110442Sintered-Metal Bushing
41607200508On-Off Switch Black
412604616006Compression Spring
51604460262Power supply cord CN 220V 2,65M 2 X 0,75MM H05 Vv-F
52604460243Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F
52604460245Power supply cord CN 220V 2,65M 2 X 0,75MM H05 Vv-F
52604460283Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F
62600707059Grommet Ø6,9 MM
6542602025094Auxiliary Handle
6552609005615Depth-Gauge
8032609120232Armature 220-240V
8082609135633Nameplate
8102610391290Carbon-Brush Set
8312609160127Change-Over Switch
8362609160123Drilling Spindle
8391608571080Key Chuck Ø1,5-13 MM
839/72607950007Chuck Wrench SG2
8922603490022Screw 4X16
8932601035001Cable Clip
8953605430003Grease Tube Albida
92609130910Manufacturer's nameplate GSB 13
